Product Function Description

The fuel filter element is a critical component of your Toyota diesel engine‘s fuel system. Its primary function is to remove solid contaminants such as dust, rust, and dirt particles from the diesel fuel before it reaches the sensitive high-pressure injection system. For Toyota Hilux Vigo, Hiace KDH200, Fortuner, and Innova models equipped with 1KD-FTV (3.0L) and 2KD-FTV (2.5L) diesel engines, a properly functioning fuel filter element is essential for protecting injectors and fuel pumps from premature wear, maintaining consistent fuel delivery, and ensuring reliable engine performance . This fuel filter element is designed to factory specifications, ensuring proper fit and reliable filtration performance.

Common Symptoms of a Failing Fuel Filter Element

If you are experiencing any of the following symptoms, your fuel filter element may be clogged or failing and in need of replacement:

• Loss of engine power: Noticeable reduction in power, especially under load or during acceleration – this occurs when the filter restricts fuel flow

• Difficulty starting: Extended cranking or failure to start, particularly after the vehicle has been sitting – this indicates fuel starvation

• Rough idling or misfire: The engine runs unevenly or misfires under load – this suggests inconsistent fuel delivery

• Black smoke from exhaust: Excessive black smoke under acceleration – this can indicate improper air-fuel mixture from restricted fuel flow

• Engine stalling: The engine stalls unexpectedly during driving – this may indicate intermittent fuel starvation

• Scheduled maintenance: Fuel filters are regular maintenance items that should be replaced according to the manufacturer‘s recommended service intervals

Note: Fuel filters should be inspected regularly and replaced at the recommended service intervals to ensure optimal engine performance and protect the fuel injection system.

How to Diagnose a Faulty Fuel Filter Element

Before purchasing a replacement, perform these simple checks to confirm the fuel filter is the issue:

• Visual Inspection: Check the fuel filter housing for signs of damage, corrosion, or leaks. Inspect the condition of fuel lines and connections.

• Service History Check: Review the vehicle’s maintenance records – if the fuel filter has not been replaced within the recommended interval, replacement is due.

• Performance Test: Monitor engine performance under load – if power loss or misfire occurs consistently under acceleration or hill climbing, fuel restriction is a likely cause.

• Fuel System Check: If diesel fuel quality is questionable, or if the vehicle has been filled from an unfamiliar source, the filter should be inspected and replaced as a precaution.

When Should You Replace It?

Consider replacing your fuel filter element if you experience any of the following symptoms:

• Engine performance issues – sluggish acceleration, rough idling, or reduced power output

• Difficulty starting the engine, especially after sitting for extended periods

• Black smoke from the exhaust or engine stalling

• The vehicle has been running on poor quality or contaminated diesel fuel

• The fuel filter has not been replaced for an extended period and the vehicle has high mileage

• You are performing regular preventive maintenance according to the manufacturer‘s schedule

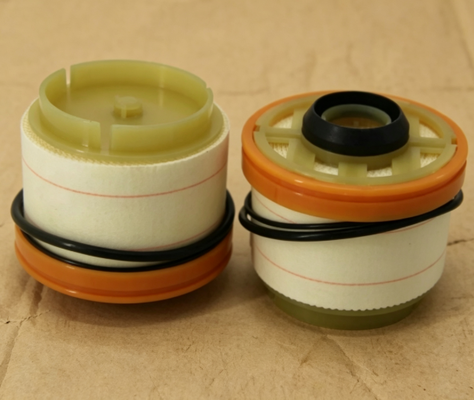

Note: This fuel filter element is compatible with Toyota Hilux Vigo (2005-2015), Hiace KDH200 (2005-2013), Fortuner (2005-2015), and Innova (2009-2016) models equipped with 1KD-FTV (3.0L) and 2KD-FTV (2.5L) diesel engines . The OE part number 23390-0L041 is confirmed as the applicable number, and it is interchangeable with 23390-0L010, 23390-0L020, and 23390-0L030 . This is a cartridge-type filter element with the following dimensions: outer diameter 83.5-84mm, inner diameter 31-39mm, height 75-77mm, supplied with gasket/seal . Please confirm your vehicle’s model and year before purchasing.

Product Attributes

Notes:

• This filter element is confirmed for Toyota Hilux Vigo, Fortuner, Hiace, and Innova applications with 1KD-FTV and 2KD-FTV engines .

• The part is cross-referenced with 23390YZZA1, 23390-0L020, and 23390-0L030 .

• Always verify fitment via VIN before purchase.

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Filter wrench or strap wrench (if applicable)

• Drain pan for fuel

• Clean lint-free rags

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Do not reuse old seal rings. Always use the new seal ring supplied with the filter.

• Use clean diesel fuel when priming the system.

• Diesel fuel is flammable; work in a well-ventilated area away from ignition sources.

• If you are unsure about any step, consult a qualified mechanic.

Purchase Guide

23390-0L070 and 23390-0L041 are not the same product. Although both are Genuine Toyota diesel fuel filter elements with very similar appearance, they belong to two different generations and differ clearly in dimensions, compatible engines, and applicable model years.

Key Differences Comparison

23390-0L070: https://www.suspensionmounts.com/sale-55848432-23390-0l070-element-assy-fuel-filter-for-toyota-hilux-fortuner-ff5890-fe0067-233900l070.html

Installation & Usage Recommendations

Slight Dimensional Differences

The paper element height and inner/outer diameters are very close (typically approx. 89mm outer diameter, approx. 110mm height). On some non-OEM filter bases, they may even fit with force, but the OEM housing O-ring and internal grooves have subtle differences.

 Never Use Old Version on New Engines

If your vehicle is a 2015 or later model with a 2.4T/2.8T engine (1GD/2GD), you must never use the old 23390-0L041. The new high-pressure common rail system is extremely sensitive to impurities and moisture in diesel fuel. The old filter element does not meet the required filtration precision and can easily cause expensive injector clogging or damage.

Using New Version on Old Engines Depends on the Base

Some owners use 23390-0L070 on older 1KD models. Since the new filter element offers better filtration performance, some compatible bases allow interchange. However, to be safe, always match strictly according to the vehicle's OEM manual or VIN.

Element vs Assembly: When to Replace Which?

Routine Maintenance: Replace Element Only:For routine maintenance, usually only the internal element needs to be replaced (Element, such as 23390-0L041 or 23390-30200).

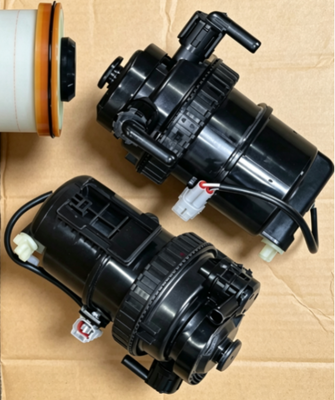

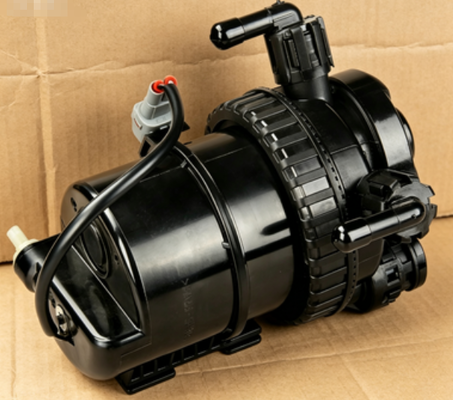

When to Replace the Complete Assembly:

The complete assembly (23330-0L020 / 23300-0L020) only needs to be replaced when:

• The top hand primer pump is damaged (cannot pump fuel)

• The plastic housing is aged, cracked, or leaking

• The water separator sensor port at the bottom is stripped

Please note that A1 AUTO PARTS CONNECTION also supplies the complete assembly.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.

Related Product Recommendations

When replacing the fuel filter, it is often recommended to inspect and consider the following related components.
