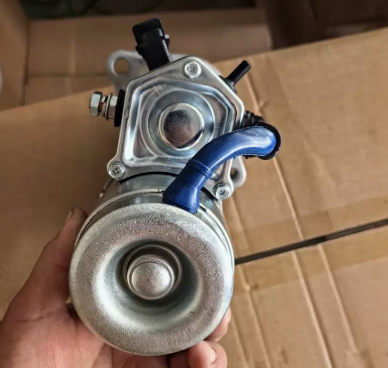

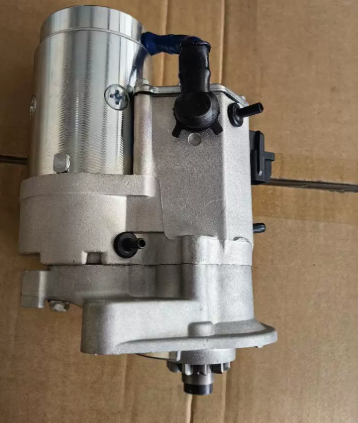

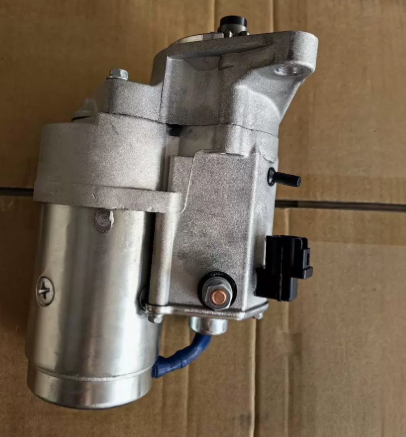

28100-0L032 STARTER ASSY For TOYOTA FORTUNER HILUX GGN50 GGN15 281000L032

 Core Product Description

The 28100-0L032 Starter Assembly is a starting system component for Toyota diesel vehicles. The starter motor engages the flywheel to crank the engine when the ignition is turned on, enabling engine start-up.

According to multiple parts catalogues, the 28100-0L032 is confirmed for Toyota Hilux (KUN16, KUN26, KUN36), Fortuner (KUN51, KUN61), and Innova diesel models equipped with the 1KD-FTV engine.

DIY Diagnosis Guide

How to Tell If Your Starter Motor Needs Replacement:

Look for these common signs:

1. Clicking sound but no crank – A single loud click when turning the key, but the engine does not crank

2. Slow cranking – Engine turns over very slowly, especially when cold

3. Grinding noise – Metallic grinding sound when attempting to start

4. No response at all – Turning the key produces no sound or action

5. Starter stays engaged – Whirring sound continues after engine starts

💡 Quick inspection: Check battery voltage first (should be 12.4V or higher with engine off). If battery is good but starter clicks or does nothing, the starter solenoid or motor may be failing. Inspect the starter connections for corrosion or looseness.

Product Attributes

Why Choose This Starter Assembly?

Restores Starting Function – A failing starter leaves you stranded with a no-start condition. This new starter restores reliable engine cranking for dependable starting.

Direct Replacement – Precision-engineered to match the original starter specifications. Direct bolt-on replacement – no modifications required.

Proven Compatibility – This starter is confirmed compatible with Toyota Hilux (2005-2015), Fortuner (2009-2011).

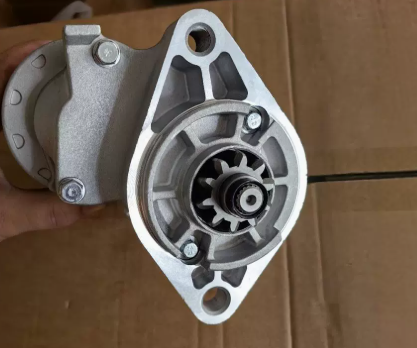

Quality Construction – Manufactured with durable materials to withstand demanding engine bay conditions and provide long service life. Features 12V 2.2kW output with 10-tooth pinion and clockwise rotation.

Package Contents

1 x Starter Assembly. Note: Mounting bolts and electrical connections are NOT included unless stated. Please confirm compatibility with your vehicle model, year, and engine before purchasing. When replacing, it is recommended to inspect the battery and charging system for proper operation.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have intermediate mechanical skills and the required tools (socket set, wrench set, jack stands).

• You are comfortable working under the vehicle and with electrical connections.

• The job takes approximately 2-3 hours.

We recommend professional installation if:

• You are not comfortable with starter removal and installation.

• You do not have the proper tools for the job.

• You are not confident in your mechanical skills.

Note: Improper installation can lead to starter damage, electrical issues, and safety concerns. Always disconnect the battery before working on the starter. Check the flywheel for damage when the starter is removed.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your starter with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off and the battery disconnected. You will need the following tools: socket set, wrench set, and jack stands.

Step 1: Disconnect the negative battery terminal. Safely raise the vehicle and support it with jack stands.

Step 2: Locate the starter on the engine block or transmission bell housing. Remove the electrical connections from the starter solenoid (B+ cable and control wire).

Step 3: Remove the mounting bolts securing the starter to the engine or transmission. Note the position for correct reassembly.

Step 4: Carefully remove the old starter. Inspect the flywheel teeth for damage or wear.

Step 5: Install the new starter and tighten the mounting bolts to factory torque specifications. Ensure the starter is properly aligned with the flywheel.

Step 6: Reconnect the electrical connections to the starter solenoid. Reconnect the battery.

Critical Step: Start the engine and check for proper starter operation. Listen for any unusual noises. Check for proper engagement and disengagement of the pinion gear.

Pro Tip: When replacing the starter, inspect the battery terminals and ground connections for corrosion. A weak battery or poor connections can cause starter issues. Always use the correct torque specifications for the mounting bolts.

Common Misconceptions About Starters

Myth 1: "If the starter clicks, it must be bad."
Fact: A clicking sound often indicates insufficient power from the battery or a faulty solenoid, not necessarily a failed starter motor. Test the battery and connections first.

Myth 2: "All starters with the same mounting pattern are interchangeable."
Fact: Starters must match the vehicle's engine, flywheel tooth count, and electrical specifications. This starter is specifically designed for Toyota diesel models with 10-tooth pinion and 2.2kW output.

Myth 3: "A starter can be replaced without checking the flywheel."
Fact: A worn starter can damage the flywheel teeth, and a damaged flywheel can ruin a new starter. Always inspect the flywheel when replacing the starter.

Common Customer Concerns & Our Solutions

We understand that purchasing a starter can raise questions and concerns. Here is how we address the most common issues our customers face:

"What if I install it and the starter still doesn't work?" – If the starter does not work after installation, check the battery voltage, ground connections, and starter relay. A weak battery or poor connection can prevent proper starter operation. If the issue persists, have the electrical system diagnosed by a professional.

"What if the part arrives damaged or doesn't meet quality expectations?" – Every shipment is inspected before dispatch. If a part ever arrives defective, we'll arrange a replacement immediately.

"What if I need the part urgently and can't wait for standard shipping?" – We offer expedited shipping options and can prioritize your order when you need it fast.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
