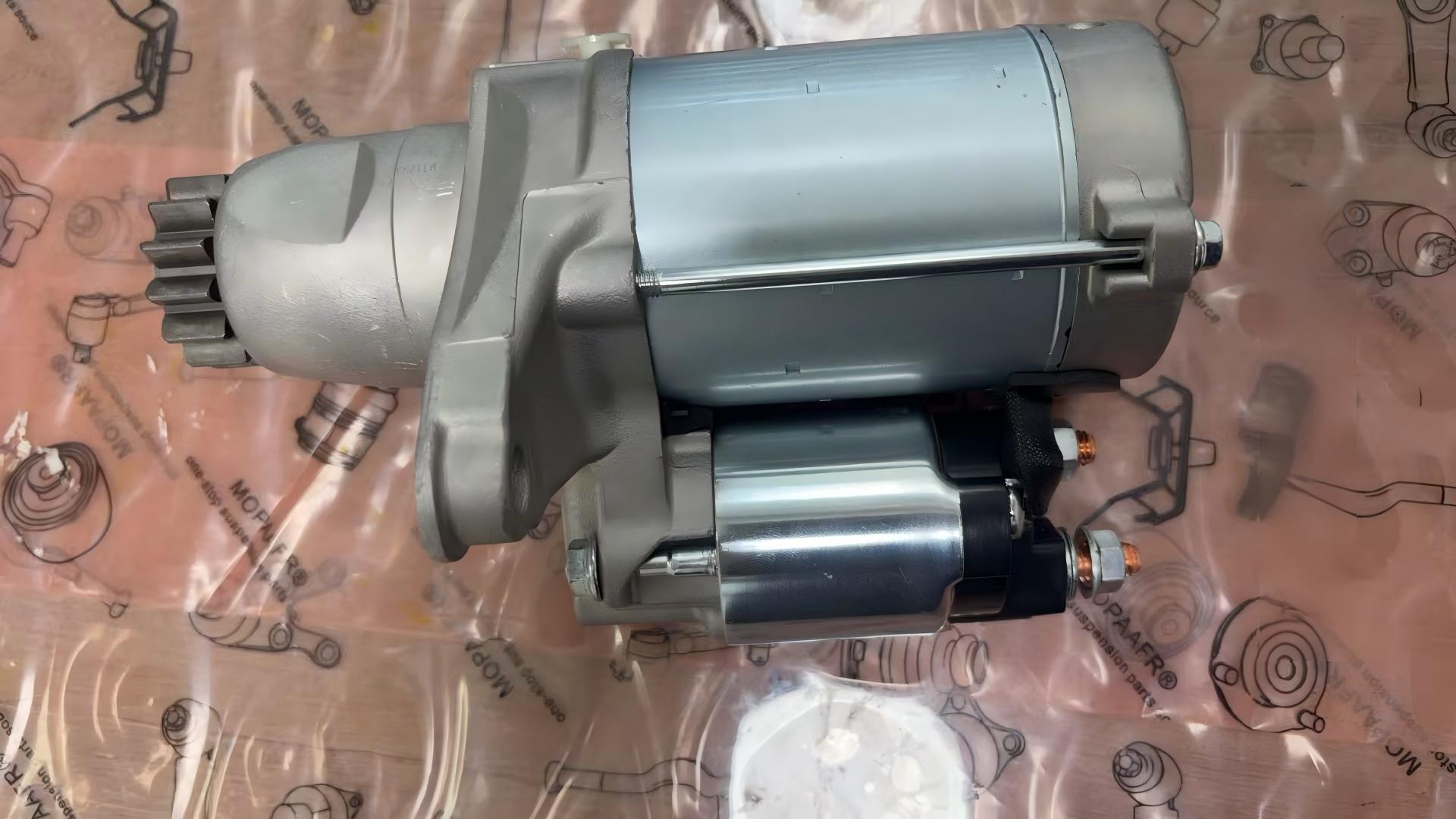

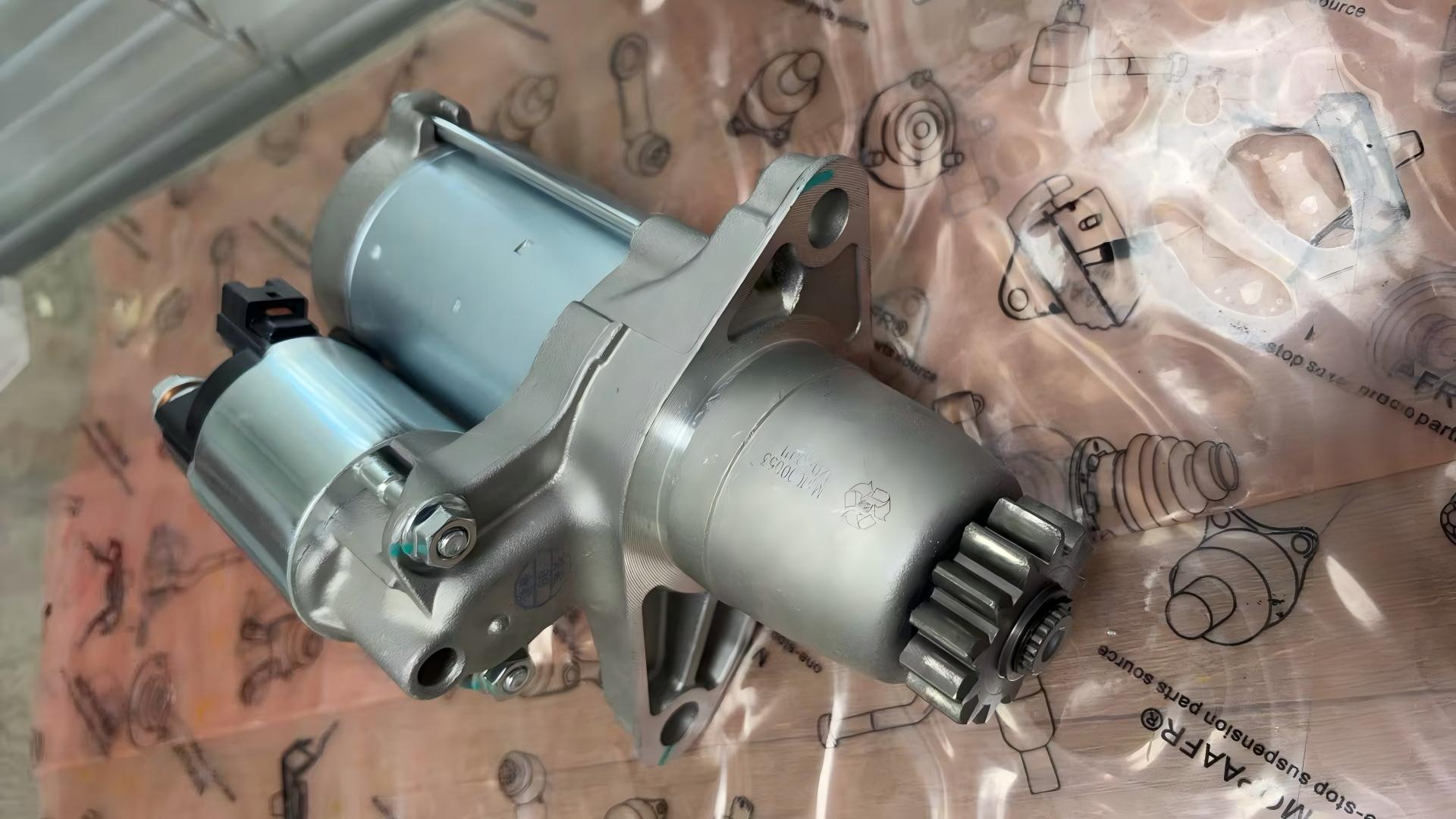

28100-28041 STARTER ASSY For TOYOTA CAMRY RAV4 LEXUS ES300 2810028041

Product Function Description

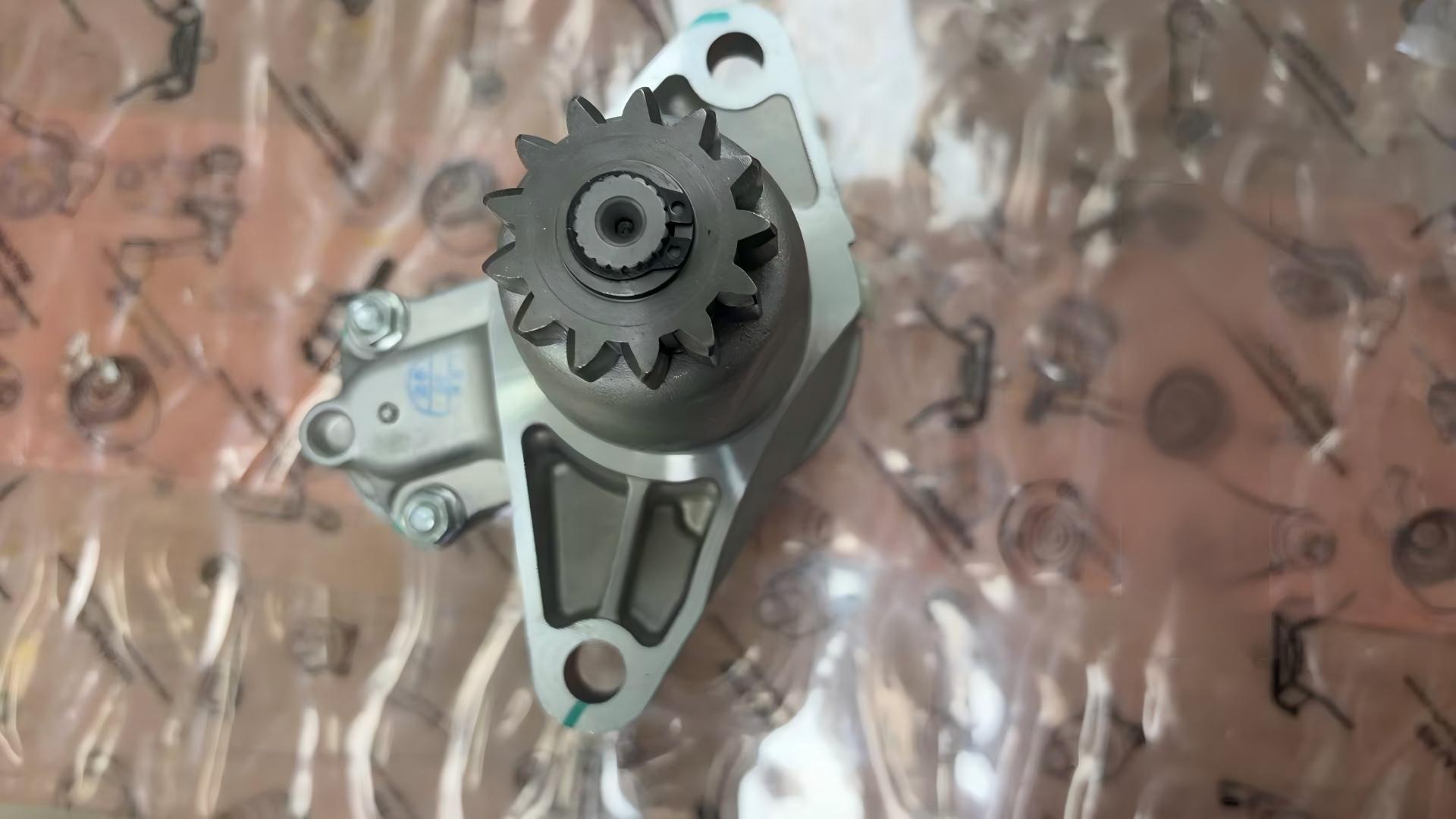

The starter motor is a critical component of your Toyota vehicle's starting system. Its primary function is to convert electrical energy from the battery into mechanical energy, cranking the engine at sufficient speed to initiate combustion and start the vehicle. For Toyota Camry, Highlander, Solara, and Scion tC models equipped with 2.4L and 3.0L engines, a properly functioning starter is essential for reliable engine starting, consistent cranking performance, and dependable vehicle operation. This starter motor is designed to factory specifications, ensuring proper fit and reliable starting performance. The unit supplies 1.6 kW output at 12V and features a 13-tooth pinion gear with anti-clockwise rotation.

Common Symptoms of a Failing Starter

If you are experiencing any of the following symptoms, your starter may be failing and in need of replacement:

• Clicking noise when turning the key: A single loud click but the engine does not crank – this indicates insufficient power reaching the starter or a faulty solenoid

• Slow cranking: The engine turns over slowly, especially when cold – this suggests worn starter motor brushes or internal wear

• Grinding noise during cranking: A harsh grinding sound when attempting to start – this indicates a worn or damaged pinion gear

• Starter spins but engine does not crank: The starter motor runs but does not engage the flywheel – this suggests a faulty starter drive or solenoid

• No response when turning the key: No sound at all when attempting to start – this may indicate a completely failed starter or electrical issue

• Intermittent starting: The vehicle starts sometimes but not others – this suggests worn internal contacts or solenoid issues

If you have confirmed these symptoms through inspection, replacing the starter is the recommended solution.

How to Diagnose a Faulty Starter

Before purchasing a replacement, perform these simple checks to confirm the starter is the issue:

• Battery Test: Check the battery voltage – a healthy battery should read 12.6V at rest. If voltage drops significantly during cranking, the battery may be the issue, not the starter.

• Voltage Drop Test: Check voltage at the starter terminals during cranking – excessive voltage drop indicates wiring or connection issues.

• Visual Inspection: Check the starter wiring and connections for corrosion, looseness, or damage. Inspect the battery terminals and ground connections.

• Listen for Noise: A clicking sound without cranking often indicates a faulty solenoid or insufficient power. Grinding suggests a pinion gear issue.

• Bench Test: If the starter is removed, it can be bench-tested to confirm proper operation.

Product Attributes

Fitment Guidance

Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Extension bar

• Torque wrench

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Always disconnect the battery before working on the starter to prevent electrical shorts.

• Check the flywheel ring gear condition before installing the new starter.

• Ensure the starter pinion engages smoothly with the flywheel.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The Mistake When Replacing a Starter Motor:

❌ Wrong: Failing to inspect the flywheel ring gear before installing the new starter, or not disconnecting the battery.

✅ Correct:

1. Always disconnect the battery first – Prevents electrical shorts and damage.

2. Inspect the flywheel ring gear – Worn or damaged teeth will damage the new starter pinion.

3. Check the starter shims – Some applications require shims for proper pinion engagement.

4. Verify connections – Ensure B+ terminal and solenoid connector are tight and clean.

5. Test before reassembly – Confirm starter operation before fully reinstalling components.

⚠️ Remember: A starter that grinds or fails to engage may have a worn flywheel ring gear or incorrect shimming. Address these issues before installing a new starter.

Industry Knowledge

Toyota Starter System Overview:

The 28100-28041 starter motor is a gear-reduction type starter used in various Toyota and Lexus models from 2002 to 2009. It produces 1.6KW of cranking power at 12V and features 13 teeth with anticlockwise rotation . This starter is shared across multiple platforms including Camry, Highlander, Solara, Alphard, Scion tC, and Lexus ES300 .

Key Information:

• Part numbers: 28100-28041

• Output: 12V, 1.6KW

• Teeth: 13

• Rotation: Anticlockwise

• Compatible vehicles: Camry, Highlander, Solara, Alphard, Scion tC, Lexus ES300

Common Service Practice:

• Test battery condition before diagnosing starter issues.

• Inspect flywheel ring gear when replacing the starter.

• Check starter connections for corrosion or looseness.

Package Contents

• 1 × Starter Assembly

• Protective packaging with part number label

Note: Mounting hardware is not included.

After Replacement Still Having Issues?

Replaced the starter but still having starting issues? Check these:

1. Is the battery in good condition? – A weak battery can mimic starter problems

2. Are the battery terminals clean and tight? – Corrosion or looseness causes voltage drop

3. Is the ground connection secure? – Poor ground affects starter operation

4. Is the flywheel ring gear worn? – Worn teeth cause grinding and poor engagement

5. Are shims required? – Incorrect shimming causes pinion misalignment

6. Is the ignition switch working? – Faulty switch prevents starter activation

7. Is the starter relay functioning? – A failed relay prevents starter engagement

Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical mounting points and pinion dimensions are verified against design specifications

• Electrical test – output voltage and current are tested for proper cranking performance

• Engagement test – pinion engagement is verified for smooth operation

• Surface finish inspection – surface quality is visually verified

Packaging Protection:
Each starter assembly is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:
