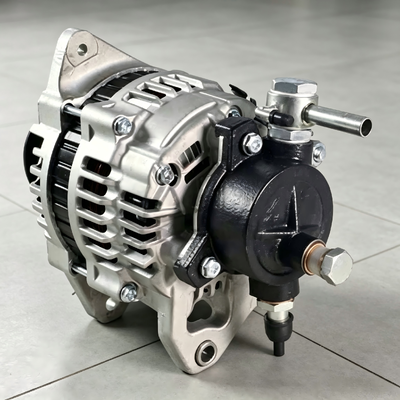

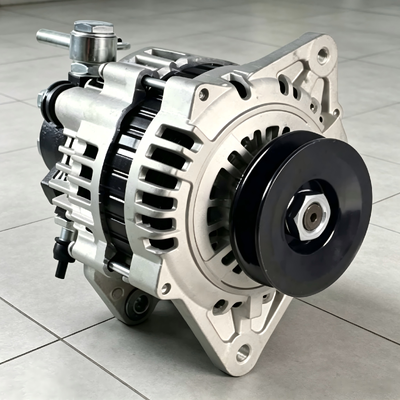

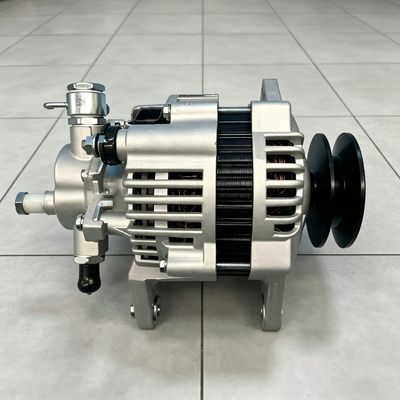

Alternator 8972402700,8972402701 12V/60A/1PK For Isuzu TF Pickup LR160502,LR160502B

Product Function Description

The alternator assembly is a critical component of your Isuzu vehicle‘s electrical system. Its primary function is to convert mechanical energy from the engine into electrical energy, recharging the battery and powering all electrical components while the engine is running. For Isuzu TF Pickup , a properly functioning alternator is essential for maintaining battery charge, ensuring reliable starting, and supporting the vehicle’s electrical systems. This alternator is designed to factory specifications, ensuring proper fit and reliable performance. The unit supplies 60 Amps at 12V and features a V-belt pulley with a single rib design.

 DIY Diagnosis Guide

How to Tell If Your Alternator Needs Replacement:

Look for these common signs:

1. Battery warning light – Dashboard battery/charging warning light illuminated while driving

2. Dim or flickering lights – Headlights and interior lights are dim or flicker at night

3. Weak or dead battery – Battery repeatedly goes flat even after being charged

4. Unusual noises – Whining, grinding, or rattling sounds from the alternator area

5. Electrical component malfunction – Radio, dashboard, or other electronics behaving erratically

💡 Quick inspection: With the engine running, use a multimeter to check battery voltage. A healthy alternator should maintain approximately 13.5V to 14.5V at the battery terminals. If voltage is below 13V or above 15V, the alternator or voltage regulator may be failing. Also inspect the belt for wear and check that the alternator pulley spins freely.

Product Attributes

 Installation Tips & Common Mistakes

The Mistake When Replacing an Alternator:

❌ Wrong: Failing to disconnect the battery before removing the alternator, or over-tightening the drive belt.

✅ Correct:

1. Always disconnect the battery first – Prevents electrical shorts and damage to the alternator or vehicle electronics.

2. Check the belt tension – Over-tightening can damage alternator bearings; under-tightening causes belt slip and poor charging.

3. Inspect the belt – Replace the drive belt if worn, cracked, or glazed.

4. Verify charging voltage – After installation, check voltage at the battery (13.5–14.5V) to confirm proper charging.

5. Check the battery – A weak or failing battery can mimic alternator problems.

⚠️ Remember: A properly installed alternator should charge at 13.5–14.5V with the engine running. If voltage is outside this range, the alternator or voltage regulator may be faulty.

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Belt tensioner tool or pry bar

• Multimeter (for voltage check)

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Always disconnect the battery before working on the alternator to prevent electrical shorts.

• Do not overtighten the drive belt – Excessive tension can damage alternator bearings.

• Check the belt condition and replace if worn or cracked.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The Mistake When Replacing an Alternator:

❌ Wrong: Failing to disconnect the battery before removing the alternator, or over-tightening the drive belt.

✅ Correct:

1. Always disconnect the battery first – Prevents electrical shorts and damage to the alternator or vehicle electronics.

2. Check the belt tension – Over-tightening can damage alternator bearings; under-tightening causes belt slip and poor charging.

3. Inspect the belt – Replace the drive belt if worn, cracked, or glazed.

4. Verify charging voltage – After installation, check voltage at the battery (13.5–14.5V) to confirm proper charging.

5. Check the battery – A weak or failing battery can mimic alternator problems.

⚠️ Remember: A properly installed alternator should charge at 13.5–14.5V with the engine running. If voltage is outside this range, the alternator or voltage regulator may be faulty.

 Industry Knowledge

Isuzu Diesel Alternator System Overview:

The alternator (8972402701) is driven by the engine via a V-belt and provides 12V, 60A charging output. It is manufactured with an internal voltage regulator to maintain stable charging voltage across varying engine speeds.

Key Information:

• Part numbers: 8972402701, cross-referenced with 8972402700 and 8972402702

• Output: 12V, 60A

• Pulley: V-belt, 1 rib

• Engine compatibility: 4JH1-TC, 4KH1

Common Service Practice:

• Test charging voltage (13.5–14.5V) during routine maintenance.

• Inspect the drive belt for wear and correct tension.

• Check battery condition before diagnosing alternator issues.

Package Contents

• 1 × Alternator Assembly

• Protective packaging with part number label

Note: Mounting hardware and drive belt are not included.

 Inspection & Maintenance Recommendations

The alternator should be inspected regularly as part of routine electrical system maintenance. Signs of charging system issues indicate the need for inspection or replacement.

Common indicators that the alternator may need replacement:

Inspection Checklist:

• Check charging voltage at the battery with the engine running (13.5–14.5V expected).

• Inspect the drive belt for wear, cracks, or glazing.

• Check the alternator pulley for proper alignment and smooth rotation.

• Inspect electrical connections for corrosion or looseness.

Maintenance Tips:

• Test charging voltage during routine maintenance.

• Replace the drive belt at recommended intervals or if worn.

• Keep battery terminals clean and tight.

• Address charging system issues promptly to avoid battery drain and electrical failures.

After Replacement Still Having Issues?

Replaced the alternator but still having charging issues? Check these:

1. Is the battery in good condition? – A weak or failing battery can mimic alternator problems

2. Is the drive belt properly tensioned? – Loose belt causes slip and poor charging

3. Are the electrical connections tight and clean? – Loose or corroded connections cause voltage drop

4. Is the charging voltage correct? – Should be 13.5–14.5V with engine running

5. Is there a parasitic drain? – Electrical components drawing power when engine is off

6. Are the grounds clean and tight? – Poor grounds affect charging system performance

7. Is the voltage regulator functioning? – Built into the alternator; faulty regulator causes incorrect voltage

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.

Recommended Related Products

Starter Motor——Related electrical component; inspect if starting issues occur

Drive Belt (V-belt)——Wear item that drives the alternator; replace if cracked, glazed, or worn

Idler Pulley——Supports the drive belt; replace if bearing noise or wobble is present

Belt Tensioner Assembly——Complete assembly replacement ensures correct and consistent belt tension

Alternator Mounting Bracket——Cracks or elongation cause misalignment; replace if damaged
