Product Function Description

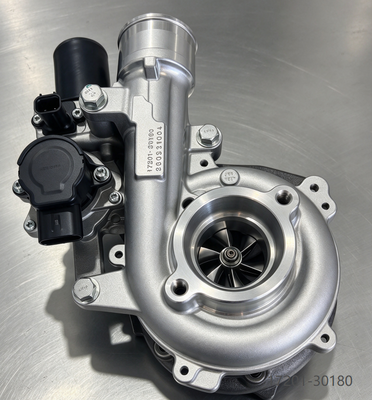

The turbocharger sub-assembly (part number 17201-30180) is a critical component of your Toyota Hilux, Land Cruiser Prado, or Hiace‘s diesel engine system. Its primary function is to increase engine power and efficiency by forcing additional compressed air into the combustion chambers. This turbocharger is a variable-nozzle design (CT16V) that allows the turbine vanes to adjust based on engine speed and load, providing quick spool-up and smooth power delivery across the RPM range. For Toyota vehicles equipped with the 1KD-FTV 3.0L diesel engine, a properly functioning turbocharger is essential for strong low-down torque, efficient fuel combustion, and reliable towing and off-road performance. This component is designed to factory specifications, ensuring proper fit and reliable operation.17201-30180 Upgraded Version 17201-30181 CT16V (CT10V) Variable Nozzle Turbine (VNT/VGT) Electronically Controlled Turbocharger Assembly.

DIY Diagnosis Guide

How to Tell If Your Turbocharger Needs Replacement:

Look for these common signs:

1. Whistling or siren noise under boost – Abnormal turbo whine indicating bearing or blade damage

2. Blue/grey smoke from exhaust – Oil leaking past turbo seals into exhaust

3. Oil in intercooler piping – Seal failure allowing oil into intake tract

4. Loss of power or limp mode – Over-boost or under-boost fault codes

5. Excessive shaft play – Radial or axial movement of compressor/turbine shaft

💡 Quick inspection: Remove the intake hose and check the compressor wheel for blade damage, oil residue, and shaft play. Spin the wheel by hand—it should rotate freely without scraping. Check intercooler hoses for oil accumulation. A scan tool can read boost-related fault codes.

 Product Attributes

Compressor Wheel

• Blade Count: 6+6 or 7+7 blades

• Inducer Diameter: Approx. 38.9 mm – 39.0 mm

• Exducer Diameter: Approx. 58.0 mm

• Overall Height: Approx. 26.6 mm

• Bore Size: Approx. 5.1 mm

Component Location & Core Function

Location: The turbocharger is mounted on the exhaust manifold on the side of the engine block. It sits between the exhaust manifold (turbine side) and the intake system (compressor side). The turbine housing is bolted to the exhaust manifold, and the compressor housing connects to the intake piping and intercooler.

Connections: The turbine housing connects to the exhaust manifold and the exhaust downpipe. The compressor housing connects to the air intake and the intercooler piping. Oil feed and return lines connect to the turbocharger center housing for lubrication and cooling. A coolant line may also connect for water cooling. An electronic actuator is mounted on the compressor housing to control the variable nozzle mechanism.

Core Function: The turbocharger serves two critical functions: (1) increasing engine power by compressing intake air to allow more fuel to be burned, and (2) improving efficiency by recovering energy from exhaust gases. The variable-nozzle design adjusts the turbine vanes to optimize boost at all engine speeds, reducing turbo lag and providing smooth power delivery. The electronic actuator receives signals from the ECM to adjust the vanes based on driving conditions.

Installation Guidelines

Tools typically required:

• Socket wrench set (metric, heavy-duty)

• Torque wrench

• Anti-seize lubricant

• New gaskets/seals

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Common Misconceptions About Turbochargers

Myth 1: A turbocharger either works or it doesn‘t.
Fact: Turbochargers can degrade gradually, with seals wearing over time and causing oil consumption or smoke before complete failure. Early symptoms should not be ignored.

Myth 2: Any turbocharger will fit.
Fact: Turbochargers are engine-specific and must match the engine code, mounting configuration, and boost control type. This turbocharger is designed specifically for Toyota 1KD-FTV applications.

Myth 3: You can reuse oil feed lines and gaskets.
Fact: Oil feed lines and gaskets should always be replaced when installing a new turbocharger. Contaminated or restricted oil lines can cause premature turbo failure.

Common Customer Concerns & Our Solutions

We understand that purchasing a turbocharger can raise questions and concerns. Here is how we address the most common issues our customers face:

For Individual Vehicle Owners:

“How do I know if this turbocharger fits my vehicle?” – This turbocharger fits Toyota Hilux, Land Cruiser Prado, and Hiace models with the 1KD-FTV 3.0L diesel engine. Please confirm your engine code and model before ordering. The part number 17201-30180 is the most reliable identifier and cross-references 17201-30181 and 17201-30150.

“What if I install it and the turbo still doesn’t boost properly?” – Check for boost leaks in the intercooler piping and intake system. Verify the electronic actuator is connected and functioning. Check for fault codes. If boost issues persist, the actuator or boost control system may require further diagnosis.

“Can I replace just the turbocharger without other components?” – It is strongly recommended to replace oil feed lines, gaskets, and any in-line filters at the same time. Flush the intercooler and piping to remove pooled oil. Use fresh engine oil and a new oil filter.

For Repair Shops and Professionals:

“Customer says the turbo still smokes after replacement.” – Check for oil residue remaining in the intercooler and piping. The intercooler and intake piping must be thoroughly flushed to remove oil from the previous turbo failure.

“How to avoid comebacks after turbo replacement?” – Prime the new turbocharger with clean oil before first start. Replace oil feed lines and gaskets. Flush intercooler and piping. Use fresh oil and filter. Clear fault codes and verify boost control with a road test. Before replacement, clean the intake manifold, exhaust manifold, and EGR system to remove carbon buildup .

“Customer has a vehicle with a different engine code – will this turbo work?” – This turbocharger is designed specifically for the 1KD-FTV engine. It will not fit other engine codes. Verify the engine code before ordering.
