Product Function Description

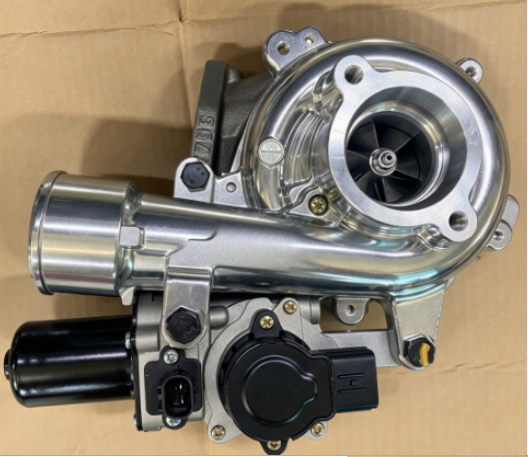

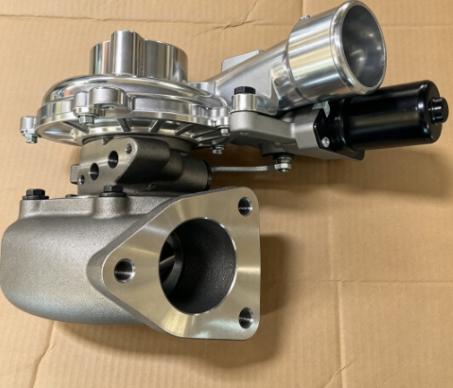

The turbocharger sub-assembly (part number 17201-0L040) is a critical component of your Toyota Hilux or Land Cruiser Prado‘s diesel engine system. Its primary function is to increase engine power and efficiency by forcing additional compressed air into the combustion chambers. This turbocharger is a variable-nozzle design (often referred to as CT16V) that allows the turbine vanes to adjust based on engine speed and load, providing quick spool-up and smooth power delivery across the RPM range. For Toyota vehicles equipped with the 1KD-FTV 3.0L diesel engine, a properly functioning turbocharger is essential for strong low-down torque, efficient fuel combustion, and reliable towing and off-road performance. This component is designed to factory specifications, ensuring proper fit and reliable operation.

Common Symptoms of a Failing Turbocharger

If you are experiencing any of the following symptoms, your turbocharger may be failing and in need of replacement:

• Whistling or siren-like noise under boost: A high-pitched whistle or siren sound that increases with engine speed – this indicates worn or damaged turbine/compressor blades

• Blue or grey smoke from the exhaust: Excessive blue or grey smoke, especially under acceleration – this indicates oil entering the exhaust, often from worn turbo seals

• Loss of power or sluggish acceleration: Noticeable decrease in engine power, especially at low RPM – this can indicate the turbo is not building boost properly

• Excessive oil consumption: The engine consumes more oil than usual without visible leaks – this suggests oil is passing through worn turbo seals into the intake or exhaust

• Over-boost or under-boost fault codes: Diagnostic trouble codes related to boost pressure – this indicates the variable nozzle mechanism or actuator is not functioning correctly

• Oil in intercooler piping: Visible oil residue in the intercooler hoses – this indicates turbo seal failure allowing oil into the intake system

If you have confirmed these symptoms through inspection, replacing the turbocharger is the recommended solution.

 Product Attributes

Notes:

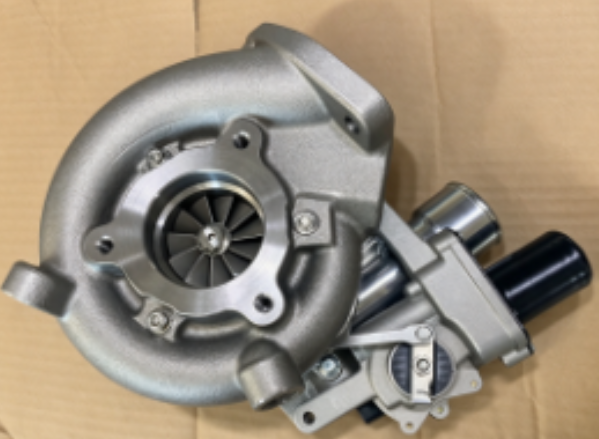

Turbine Wheel

• Blade Count: 11 blades

• Inducer Diameter: Approx. 51.8 mm

• Exducer Diameter: Approx. 47.9 mm

Component Location & Core Function

Location: The turbocharger is mounted on the exhaust manifold on the side of the engine block. It sits between the exhaust manifold (turbine side) and the intake system (compressor side). The turbine housing is bolted to the exhaust manifold, and the compressor housing connects to the intake piping and intercooler.

Connections: The turbine housing connects to the exhaust manifold and the exhaust downpipe. The compressor housing connects to the air intake and the intercooler piping. Oil feed and return lines connect to the turbocharger center housing for lubrication and cooling. A coolant line may also connect for water cooling. An electronic actuator is mounted on the compressor housing to control the variable nozzle mechanism.

Core Function: The turbocharger serves two critical functions: (1) increasing engine power by compressing intake air to allow more fuel to be burned, and (2) improving efficiency by recovering energy from exhaust gases. The variable-nozzle design adjusts the turbine vanes to optimize boost at all engine speeds, reducing turbo lag and providing smooth power delivery. The electronic actuator receives signals from the ECM to adjust the vanes based on driving conditions.

Package Contents

1 x Turbocharger Sub-Assembly (Part Number 17201-0L040). Note: Please confirm compatibility with your vehicle‘s engine code and model before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have extensive experience servicing diesel engine and turbocharger systems.

• You have access to a torque wrench, jack stands, oil line wrenches, and diagnostic scan tools.

• You can safely lift and support the vehicle on level ground.

We recommend professional installation if:

• You are unfamiliar with turbocharger replacement and diesel engine systems.

• You lack the proper tools for oil line removal and installation.

• You are not confident in priming the turbo with oil, clearing fault codes, or verifying boost control.

Note: Improper installation can lead to turbocharger failure and engine damage. The new turbocharger must be primed with clean oil before first start. Replace oil feed and return gaskets. Flush intercooler and piping to remove pooled oil. Clear any relevant fault codes and verify boost control with a road test.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your turbocharger with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off. You will need the following tools: torque wrench, jack stands, oil line wrenches, and diagnostic scan tools.

Step 1: Disconnect the negative battery cable. Drain the engine coolant if the turbocharger is water-cooled.

Step 2: Remove the intercooler piping and air intake connections from the compressor housing. Remove the exhaust downpipe from the turbine housing.

Step 3: Disconnect the oil feed and return lines from the turbocharger center housing. Disconnect the coolant lines if equipped. Disconnect the electronic actuator connector.

Step 4: Remove the turbocharger mounting bolts from the exhaust manifold. Carefully remove the old turbocharger.

Step 5: Clean the exhaust manifold mounting surface. Install the new turbocharger with a new gasket. Torque the mounting bolts to specification.

Step 6: Reconnect the oil feed and return lines with new gaskets. Reconnect coolant lines if equipped. Reconnect the electronic actuator connector. Reinstall the exhaust downpipe and intercooler piping.

Critical Step: Prime the new turbocharger with clean engine oil through the oil feed port before first start. Crank the engine without starting (if possible) to circulate oil. Check for leaks. Clear any stored fault codes and verify boost control with a road test.

Pro Tip: When replacing the turbocharger, always replace the oil feed line and any in-line filters. Flush the intercooler and piping to remove pooled oil. Use fresh engine oil and a new oil filter. Check for shaft play on the new turbocharger before installation.

After Replacement Still Having Issues?

Replaced the turbocharger but still having issues? Check these:

1. Was the turbo primed with oil? – Dry start causes immediate bearing failure

2. Was the oil feed line checked? – Blocked feed line causes turbo failure

3. Was the intercooler cleaned? – Oil from old turbo contaminates new unit

4. Are the boost hoses secure? – Loose hoses cause boost leaks and power loss

5. Was the actuator calibrated? – VNT actuator requires proper calibration

6. Are fault codes cleared? – Old codes may persist until cleared

7. Is the air filter clean? – Dirty filter causes compressor blade erosion

Storage & Shelf Life

• Store in a cool, dry place away from direct sunlight.

• Keep the turbocharger in its original packaging until installation to prevent contamination or damage.

• Avoid contact with moisture, dust, or debris that may enter the turbine or compressor housings.

• Do not drop or subject the turbocharger to impact, as this may damage internal components.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
