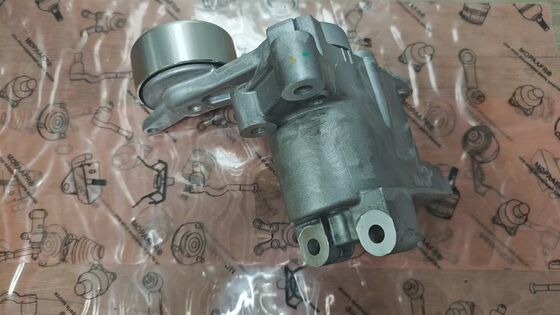

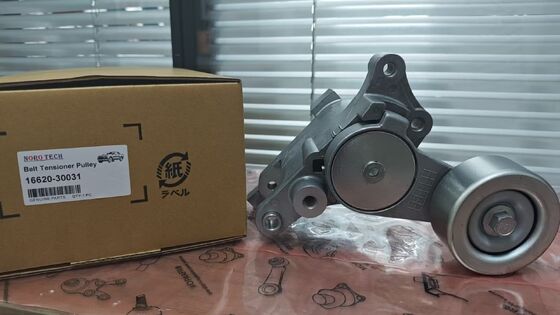

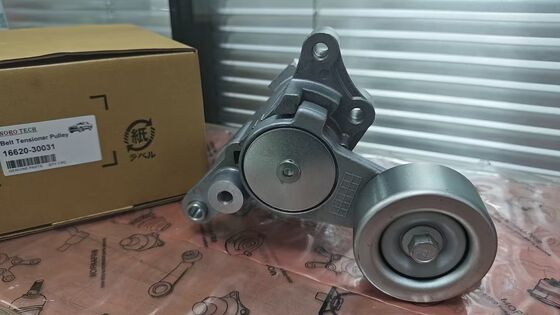

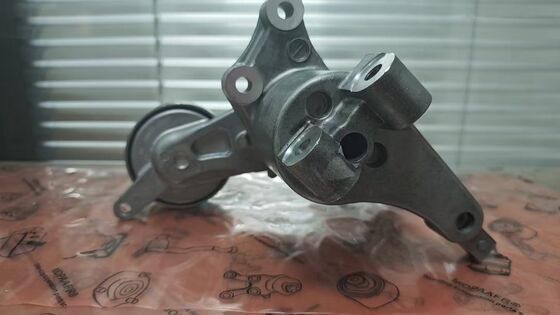

16620-30031 Tensioner Assy V-Ribbed Belt For TOYOTA FORTUNER HILUX HIACE GGN50 GGN15 1662030031

Product Function Description

The V-ribbed belt tensioner assembly (part number 16620-30031) is a critical component of your Toyota diesel engine‘s accessory drive system. Its primary function is to maintain constant, optimal tension on the serpentine belt that drives the alternator, water pump, power steering pump, and air conditioning compressor. This automatic tensioner uses an internal spring mechanism to compensate for belt stretch and wear, ensuring the belt remains properly tensioned throughout its service life. Without correct belt tension, the belt can slip, causing squealing noises, reduced accessory performance, and potential belt failure. For Toyota Hilux, HiAce, Fortuner, and Dyna models equipped with 1KD-FTV or 2KD-FTV diesel engines, a properly functioning belt tensioner is essential for reliable accessory operation and preventing breakdowns.

Common Symptoms of a Failing Belt Tensioner

If you are experiencing any of the following symptoms, your V-ribbed belt tensioner may be failing and in need of replacement:

• Squealing or chirping noise from the belt area: A high-pitched squeal on start-up or during acceleration, indicating the belt is slipping due to insufficient tension

• Belt squealing that worsens when cold or wet: The tensioner spring weakens over time and cannot maintain proper tension under all conditions

• Visible belt wear or glazing: The serpentine belt shows excessive wear, cracks, or a shiny glazed appearance due to constant slipping

• Accessory performance issues: The alternator does not charge properly, the power steering feels heavy, or the A/C does not cool effectively due to belt slip

• Tensioner pulley bearing noise: Grinding or rumbling from the tensioner pulley, indicating worn internal bearings

• Belt jumps or comes off: In severe cases, the worn tensioner allows the belt to jump off the pulleys entirely

• Visible damage or misalignment: The tensioner arm is cracked, the pulley is misaligned, or the spring mechanism has failed

If you have confirmed these symptoms through inspection, replacing the belt tensioner assembly is the recommended solution.

How to Diagnose a Faulty Belt Tensioner

Before purchasing a replacement, perform these simple checks to confirm the belt tensioner is the issue:

• Visual Inspection: Inspect the serpentine belt for glazing, cracks, or excessive wear. Check the tensioner pulley for misalignment or damage to the arm

• Belt Tension Check: With the engine off, press on the belt between two pulleys. It should have minimal deflection (approximately 10-15mm). Excessive movement indicates a weak tensioner

• Pulley Bearing Test: Spin the tensioner pulley by hand. It should rotate smoothly and quietly. Grinding or roughness indicates worn bearings

• Noise Test: With the engine running, listen for squealing from the belt area. If the noise disappears when you spray a small amount of water on the belt, the tensioner is likely the cause

• Tensioner Movement Check: Observe the tensioner arm while the engine idles. It should move slightly to compensate for load changes. A seized or excessively loose arm indicates failure

 Product Attributes

Component Location & Core Function

Location: The V-ribbed belt tensioner is mounted on the front of the engine block, positioned to press against the serpentine belt on its return span. It sits between the engine block (rear) and the belt (front), with the pulley contacting the belt surface.

Connections: The tensioner assembly bolts to the engine block with mounting bolts. The tensioner pulley contacts the back (flat) side of the serpentine belt. An internal torsion spring provides the tensioning force, and the arm pivots to automatically adjust belt tension as the belt stretches or contracts with temperature changes.

Core Function: The belt tensioner serves as the automatic tensioning device for the serpentine belt system. It maintains constant tension on the belt regardless of engine speed, temperature, or accessory load. By preventing belt slip, it ensures the alternator charges properly, the water pump circulates coolant effectively, the power steering provides assist, and the A/C compressor operates efficiently. The tensioner also dampens belt vibration and extends belt service life.

Package Contents

1 x V-Ribbed Belt Tensioner Assembly (Part Number 16620-30031). Note: Serpentine belt, mounting bolts, and other hardware are NOT included unless stated. Please confirm compatibility with your vehicle‘s model and engine before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have basic mechanical skills and experience with serpentine belt systems.

• You have access to a socket set, ratchet, and possibly a breaker bar for belt release.

• You can safely work on the vehicle with the engine cool.

We recommend professional installation if:

• You are unfamiliar with serpentine belt routing and tensioner replacement.

• You lack the proper tools for belt removal and installation.

• You are not confident in verifying proper belt tension after installation.

Note: Improper installation can lead to belt misalignment, premature wear, and accessory failure. The tensioner must be properly seated and torqued to specification. Always inspect the serpentine belt for wear and replace if necessary. Check belt routing after installation.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your V-ribbed belt tensioner with confidence. Before starting, ensure the engine is completely cool and the vehicle is parked on level ground. You will need the following tools: socket set, ratchet, and possibly a breaker bar.

Step 1: Disconnect the negative battery cable. Note the serpentine belt routing for reference during reassembly.

Step 2: Relieve tension on the serpentine belt by rotating the tensioner arm with a breaker bar or appropriate tool. Slide the belt off the tensioner pulley.

Step 3: Remove the mounting bolts securing the tensioner assembly to the engine block. Note the bolt locations and lengths.

Step 4: Remove the old tensioner assembly from the engine. Clean the mounting surface and inspect the serpentine belt for wear, glazing, or cracks. Replace the belt if necessary.

Step 5: Install the new tensioner assembly onto the engine block. Reinstall the mounting bolts and torque to specification.

Step 6: Route the serpentine belt according to the diagram. Release the tensioner arm to apply tension to the belt. Verify the belt is properly seated on all pulleys.

Critical Step: Verify that the belt is correctly routed and properly tensioned. Start the engine and check for squealing or unusual noises. Inspect the tensioner operation while the engine idles.

Pro Tip: When replacing the tensioner, always inspect the serpentine belt and replace if worn. Check all pulleys for alignment and bearing condition. Use a belt tension gauge if available to verify correct tension.

Common Misconceptions About Belt Tensioners

Myth 1: The belt tensioner rarely needs replacement.
Fact: The tensioner spring weakens over time, and the pulley bearings wear out. On high-mileage vehicles, the tensioner is a common cause of belt squeal and should be replaced when symptoms appear.

Myth 2: Any belt tensioner will fit.
Fact: Belt tensioners are engine-specific and must match the mounting configuration, pulley diameter, and belt routing. This tensioner is designed specifically for Toyota 1KD-FTV and 2KD-FTV diesel engine applications.

Myth 3: Replacing the belt will fix the squealing noise.
Fact: If the tensioner spring is weak or the pulley bearing is worn, a new belt will still slip and squeal. The tensioner must be replaced to restore proper belt tension.

Storage & Shelf Life

• Store in a cool, dry place away from direct sunlight.

• Keep the tensioner in its original packaging until installation to prevent contamination or damage.

• Avoid contact with moisture, oil, grease, or solvents that may affect the spring mechanism or bearings.

• Do not drop or subject the tensioner to impact, as this may damage the internal spring or pulley.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
