Product Function Description

The engine coolant temperature sensor (part number 89422-33030) is a critical component of your Toyota or Lexus vehicle‘s engine management system. Its primary function is to measure the temperature of the engine coolant and transmit this data to the engine control unit (ECU) via a variable resistance signal. The sensor uses a Negative Temperature Coefficient (NTC) thermistor, meaning its resistance decreases as coolant temperature rises . The ECU uses this signal to calculate critical parameters including fuel injection quantity and timing, ignition timing, and cooling fan activation . For compatible Toyota and Lexus vehicles, a properly functioning coolant temperature sensor is essential for cold-start performance, fuel efficiency, and overall engine reliability.

DIY Diagnosis Guide

How to Tell If Your Coolant Temperature Sensor Needs Replacement:

Look for these common signs:

1. Check engine light (P0115-P0118) – Codes related to coolant temperature circuit

2. Hard starting when cold – ECU receives incorrect temperature signal

3. Poor fuel economy – Incorrect fuel mixture due to faulty temperature data

4. Cooling fan runs constantly or not at all – Fan operation affected by sensor signal

5. Temperature gauge malfunction – Erratic or non-working gauge

💡 Quick inspection: Check the sensor connector for corrosion or damage. A scan tool can read live coolant temperature data and compare it to actual engine temperature. If the reading is significantly off, the sensor is likely faulty. Inspect the sensor for corrosion or jumping readings and replace if found .

 Product Attributes

Component Location & Core Function

Location: The engine coolant temperature sensor is threaded into a coolant passage on the engine, typically on the cylinder head or in the water outlet housing. On many Toyota V6 engines, it is located beneath the air filter housing on the left engine end, mounted in the coolant outlet housing. On 4-cylinder models, it is on the left end of the cylinder head .

Connections: The sensor threads into the coolant passage with an M12 x 1.5 thread . It connects to the engine wiring harness via a 2-pin electrical connector . A sealing gasket (part number 90430-12005) is used to prevent coolant leaks at the mounting point .

Core Function: The coolant temperature sensor serves as the primary temperature feedback device for the engine management system. It continuously monitors coolant temperature and provides a resistance signal to the ECU that varies inversely with temperature (NTC type). The ECU uses this signal to adjust fuel injection quantity and timing for cold and warm operation, control ignition timing, and manage cooling fan activation . Without an accurate temperature signal, the ECU defaults to a preset value, causing drivability issues and increased fuel consumption.

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric, 19mm)

• Drain pan for coolant

• Torque wrench

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Ensure the engine is completely cool before working on the cooling system.

• Use a new seal/O-ring – Old seals may leak.

• Torque the sensor properly – Over-tightening can damage the threads.

• Bleed the cooling system after refilling to remove air pockets.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The Mistake When Replacing a Coolant Temperature Sensor:

❌ Wrong: Failing to drain coolant or over-tightening the sensor into the engine block.

✅ Correct:

1. Always drain coolant first – Coolant will spill when the sensor is removed.

2. Use a new seal – A worn seal causes coolant leaks .

3. Torque properly – Over-tightening can damage the threads in the engine block.

4. Clear fault codes – After installation, use a scan tool to clear codes and verify no new codes appear.

5. Bleed the cooling system – Air pockets affect sensor readings and cooling performance .

⚠️ Remember: A temperature sensor that is not properly sealed will leak coolant and cause overheating. Always use a new seal and torque to specification.

Package Contents

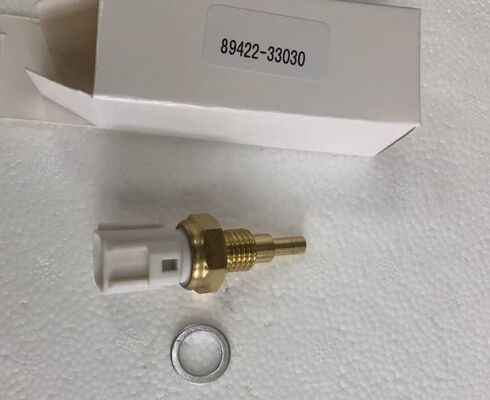

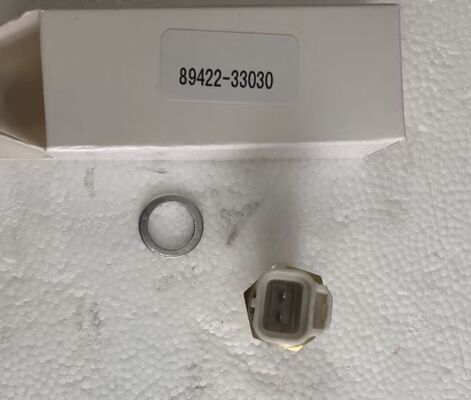

1 x Engine Coolant Temperature Sensor (Part Number 89422-33030) with gasket. Note: Electrical connector and mounting hardware are NOT included unless stated. Please confirm compatibility with your vehicle’s model and engine before purchasing.

Common Misconceptions About Coolant Temperature Sensors

Myth 1: The coolant temperature sensor and the radiator fan switch are the same component.
Fact: These are separate components with different functions. The coolant temperature sensor (89422-33030) is a 2-pin sensor that sends temperature data to the ECU for fuel injection and timing control. The radiator fan switch is typically a 1-pin switch that directly controls the cooling fan. They are located near each other but serve different purposes.

Myth 2: A faulty coolant temperature sensor will always trigger a Check Engine Light immediately.
Fact: Intermittent sensor failures may not set a code until the failure becomes consistent. Many drivers experience cold-start issues or poor fuel economy without any warning light until the sensor fails completely.

Myth 3: Any coolant temperature sensor will work.
Fact: Coolant temperature sensors are engine-specific and must match the resistance curve (NTC characteristics), thread size, and connector type. This sensor is designed specifically for compatible Toyota and Lexus applications with a 2-pin rectangular connector and M12 x 1.5 thread.

After Replacement Still Having Issues?

Replaced the coolant temperature sensor but still having issues? Check these:

1. Were fault codes cleared? – Old codes may persist until cleared with a scan tool

2. Is the connector fully engaged? – Loose connection causes intermittent faults

3. Is the wiring harness intact? – Check for cuts, chafing, or corrosion

4. Is the cooling system bled? – Air pockets affect sensor readings

5. Is the coolant level correct? – Low coolant affects sensor performance

6. Is the thermostat working? – A stuck thermostat affects coolant temperature

7. Is the ECU functioning? – A faulty ECU can cause sensor-related symptoms

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
