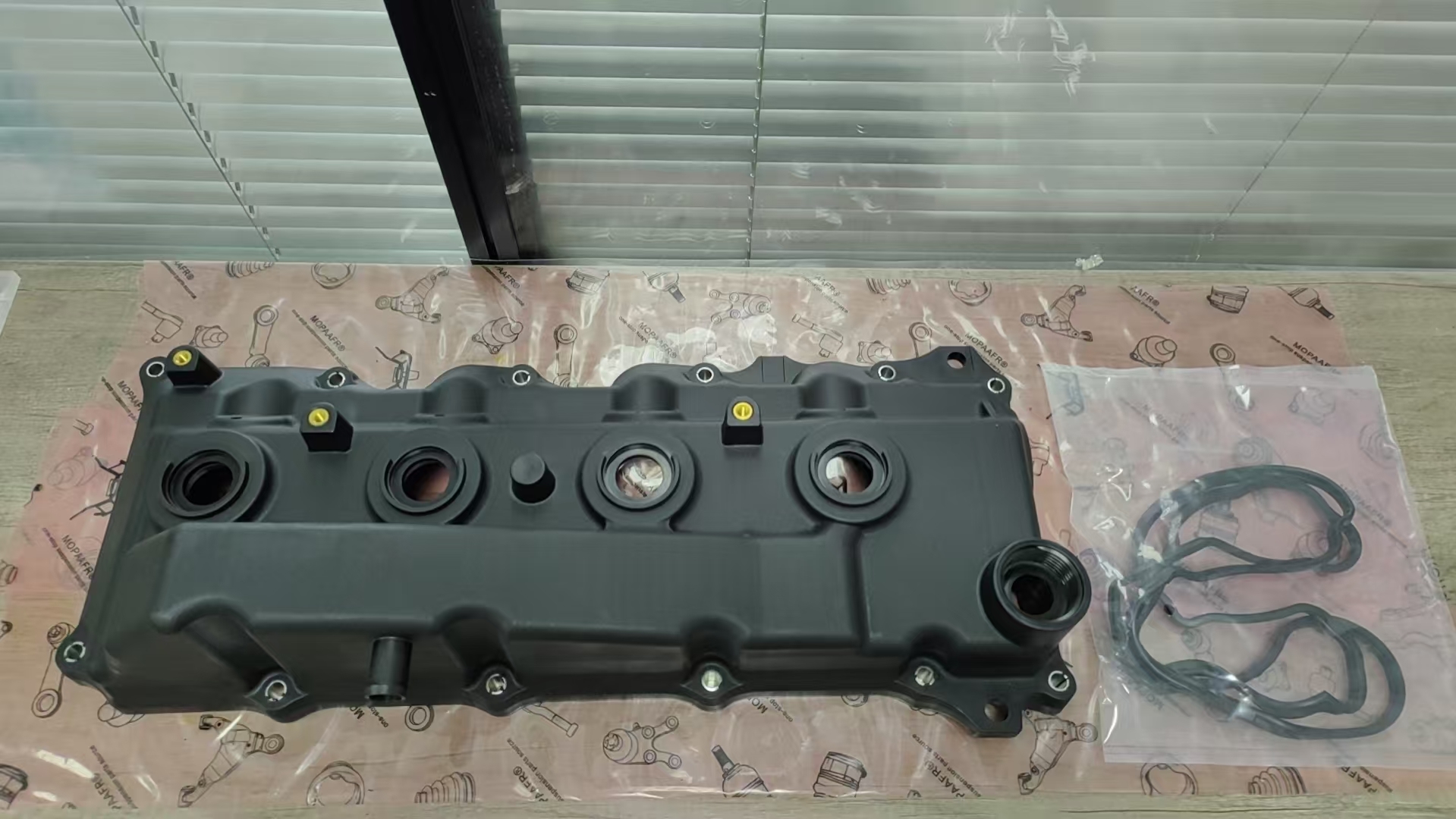

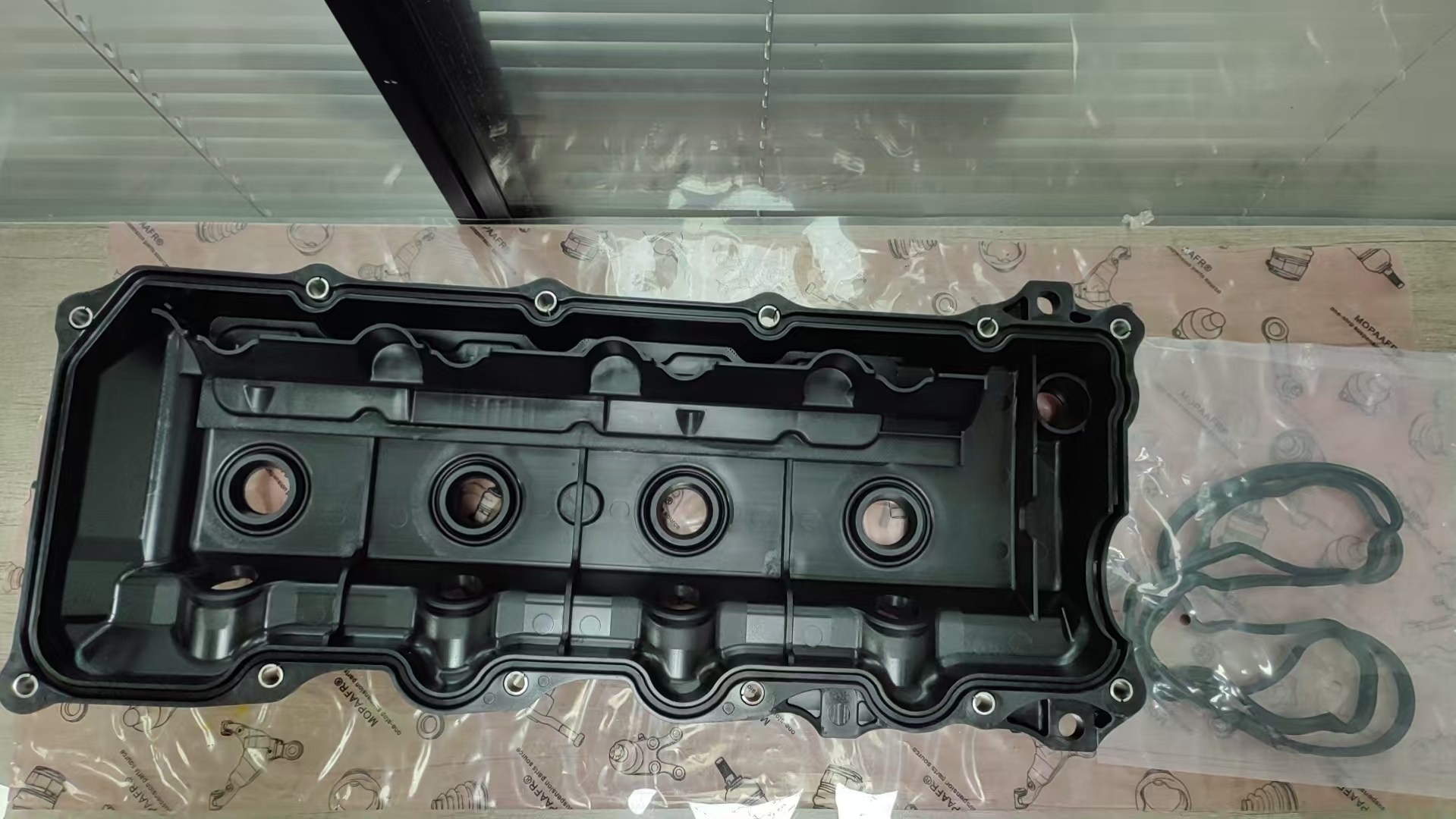

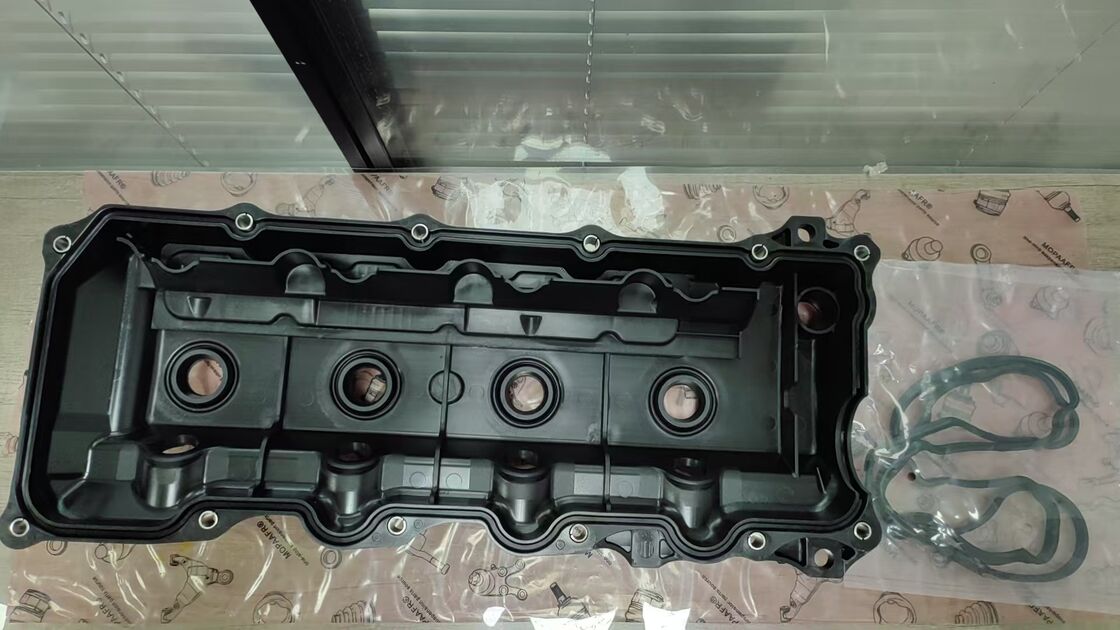

11210-0L020 Engine Valve Rocker Cover For 112100L020 Toyota Hilux 1KDFTV 2KDFTV Land Cruiser Hiace 4Runner

Product Description

Product Function Description

The engine valve cover is a critical component of your Toyota diesel engine's top-end sealing system. Also known as the rocker cover or cylinder head cover, it seals the top of the cylinder head, preventing oil leakage and protecting the camshaft and valvetrain components from contaminants. For Toyota 1KD-FTV and 2KD-FTV diesel engines found in Hilux, Land Cruiser, Hiace, and 4Runner models, a properly functioning valve cover is essential for maintaining oil containment, preventing leaks, and ensuring reliable valvetrain operation.

DIY Diagnosis Guide

How to Tell If Your Valve Cover Needs Replacement:

Look for these common signs:

1. Oil leaks – Visible oil residue on the engine block, exhaust manifold, or around the valve cover edge

2. Burning oil smell – Oil dripping onto the hot exhaust manifold creates a burning odor

3. Low oil level – Unexplained oil loss between oil changes

4. Visible damage – Cracks or warping in the valve cover itself

5. Oil in spark plug wells – Oil pooling around spark plugs indicates the spark plug tube seals are failing

💡 Quick inspection: With the engine cool, inspect the valve cover edges for oil residue. Check the area around the exhaust manifold for signs of oil burning. If the cover appears warped or cracked, replacement is necessary.

 Product Attributes

Common Symptoms of a Failing Valve Cover

If you are experiencing any of the following symptoms, your valve cover may be failing and in need of replacement:

• Oil leaks: Oil leaking from the top of the engine, especially around the edges of the cover – this indicates the cover may be cracked or the gasket has failed

• Oil smell: Burning oil smell from the engine bay – this suggests oil is leaking onto hot exhaust components

• Visible cracks: Cracks around the bolt holes or at the rear of the cover – this is a common failure point on factory plastic covers

• Low oil level: Unexplained oil consumption without visible external leaks elsewhere

• Valve cover gasket failure: If the gasket is failing but the cover is intact, replacing the cover and gasket together is recommended for reliability

Note: On 1KD-FTV engines, the factory plastic cover is known to crack around the bolt holes and near the cylinder head, causing oil leaks that are often misdiagnosed as gasket failure. When the injectors are removed during service, the injector seals and gaskets frequently break and should be replaced.

How to Diagnose a Faulty Valve Cover

Before purchasing a replacement, perform these simple checks to confirm the valve cover is the issue:

• Visual Inspection: Look for oil stains or wetness around the valve cover edges, especially near the bolt holes and at the rear of the cover where cracks commonly develop.

• Physical Inspection: Check for visible cracks in the plastic cover material – shine a light around the bolt holes and along the sealing surface.

• Leak Tracing: Clean the area thoroughly, drive the vehicle, and re-inspect to locate the source of the leak – a cracked cover will leak oil even with a new gasket.

• Gasket Check: If the leak is between the cover and cylinder head, the gasket may have failed; however, if the cover is cracked, replacement of both cover and gasket is recommended.

Package Contents

1 x Engine Valve Cover. Note: Please confirm the exact package contents before purchasing. It is recommended to install with a new gasket for reliable sealing. Please confirm compatibility with your vehicle model, year, and engine before purchasing.

Common Misconceptions About Valve Covers

Myth 1: “If the gasket is leaking, I only need to replace the gasket.”
Fact: On 1KD-FTV engines, the plastic valve cover frequently cracks around the bolt holes and at the rear, causing oil leaks that persist even with a new gasket. Always inspect the cover for cracks before replacing only the gasket.

Myth 2: “All replacement covers are the same material.”
Fact: Replacement covers are available in both plastic and reinforced aluminium alloy. Aluminium alloy options offer increased durability and resistance to cracking.

Myth 3: “The injector seals won’t need replacing when removing the cover.”
Fact: When removing the valve cover on 1KD/2KD engines, the injector seals and gaskets frequently break and should be replaced.

Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical mounting points and sealing surfaces are verified against design specifications

• Material integrity check – cover quality is verified for proper sealing and durability

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each valve cover is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:

System-Wide Maintenance Tips

KD-Series Diesel Engine – Valve Cover Maintenance Overview

The Toyota 1KD-FTV and 2KD-FTV engines are widely used in commercial and off-road applications. Proper valve cover maintenance is essential for preventing oil leaks and protecting the valvetrain.

Key Maintenance Points:

• Inspect the valve cover at every service – Look for oil leaks, cracks, or signs of warping

• Replace the gasket when servicing the cover – Always use a new gasket for a proper seal

• Torque bolts to specification – Follow the manufacturer's torque sequence and value

• Check the PCV system – A blocked PCV system can cause crankcase pressure buildup, leading to gasket failure

Why This Matters:

• KD-series engines work hard – commercial use and off-road conditions put stress on all engine components

• A leaking valve cover can allow oil to reach the exhaust manifold, creating a fire hazard

• Oil leaks can also damage rubber hoses and wiring in the engine bay

• Regular maintenance with quality parts ensures reliable, leak-free operation
