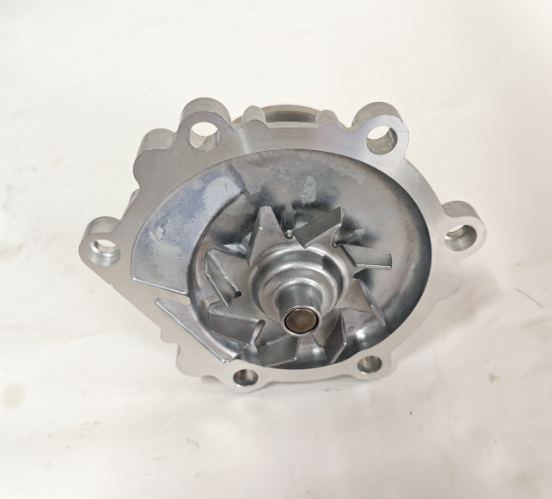

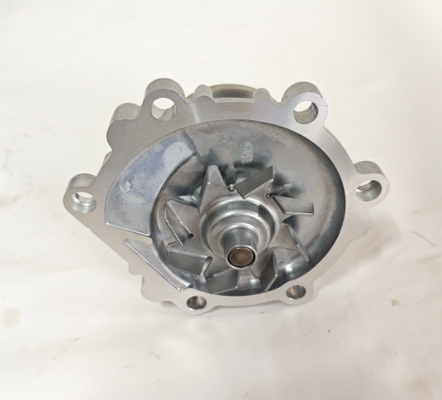

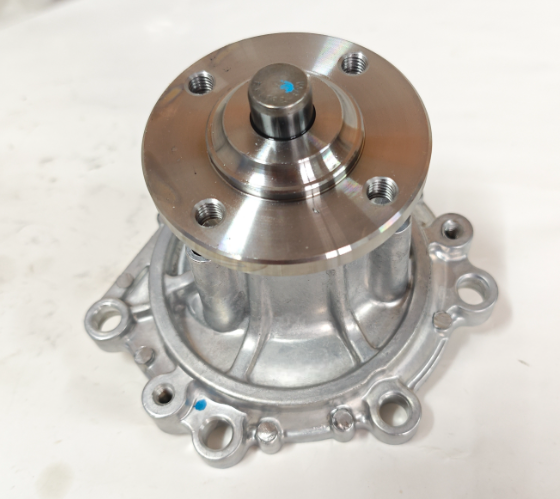

16100-59155 Water Pump Fits 1610059155 Toyota HIACE 2L / 2L-II / 2L-T / 3L / 5L

Product Description

Product Function Description

The water pump is a critical component of your Toyota Hiace diesel engine's cooling system. Its primary function is to circulate coolant through the engine block, cylinder head, and radiator, dissipating the intense heat generated by the combustion process. For 2L, 2L-II, 2L-T, 3L, and 5L diesel engines found in Toyota Hiace models from 1986-1999, a properly functioning water pump is essential for maintaining optimal engine temperature, preventing overheating, and protecting engine components from thermal damage. This component is designed to factory specifications, ensuring proper fit and reliable cooling system operation.

Common Symptoms of a Failing Water Pump

If you are experiencing any of the following symptoms, your water pump may be failing and in need of replacement:

• Coolant leaks: Coolant leak from the weep hole or around the housing – this indicates the seal is failing

• Grinding or whining noise: Unusual noise from the pump area that changes with engine speed – this indicates bearing wear

• Engine overheating: Temperature gauge reads higher than normal, especially under load – this happens when the pump cannot circulate enough coolant

• Weak cabin heat: Heater output is weak or not warm – this suggests insufficient coolant flow

• Steam or coolant smell: Sweet coolant odor from the engine bay after driving

If you have confirmed these symptoms through inspection, replacing the water pump is the recommended solution.

How to Diagnose a Faulty Water Pump

Before purchasing a replacement, perform these simple checks to confirm the water pump is the issue:

• Visual Inspection: Look for coolant stains or wetness around the water pump mounting area, especially near the weep hole on the underside of the pump housing. Check for play in the pulley.

• Physical Test: With the engine off and cool, remove the drive belt and spin the water pump pulley by hand. Feel for roughness, play, or wobble. A smooth rotation indicates good bearing condition.

• Road Test: Monitor the temperature gauge while driving. If the engine runs hotter than normal, especially under load, this indicates insufficient coolant circulation.

• Coolant Level Check: If the coolant level keeps dropping with no obvious hose leaks, the pump is a prime suspect.

Product Specifications

Why Choose This Water Pump?

Restores Cooling System Function – A failing water pump causes overheating and engine damage. This pump restores proper coolant flow, keeping your engine at optimal operating temperature for reliable performance.

Prevents Costly Engine Damage – Overheating from a failed water pump can cause warped cylinder heads, blown head gaskets, and severe engine damage. Replacing a failing pump early is cost-effective protection.

Direct Replacement – Precision-engineered to match the original water pump specifications. Direct bolt-on replacement – no modifications required. The pump is supplied with a gasket for proper sealing.

Proven Compatibility – This pump is confirmed compatible with Toyota Hiace (1986-1999) and other models equipped with 2L, 3L, and 5L diesel engines.

Quality Construction – Manufactured with cast aluminium housing and quality bearings to withstand demanding operating conditions and provide long service life. Coolant concentration should be at no less than 50% to ensure proper water pump lubrication and corrosion protection.

Package Contents

1 x Water Pump with Gasket. Note: Mounting hardware and coolant are NOT included. Please confirm compatibility with your vehicle model, year, and engine before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have advanced mechanical skills and the required tools (socket set, torque wrench, timing belt tools, coolant drain pan).

• You are comfortable working with timing belt removal and reinstallation (the pump is timing belt driven).

• The job takes approximately 4-6 hours.

We recommend professional installation if:

• The replacement requires special tools (such as timing belt tensioner tools).

• You are not comfortable with timing belt removal and reinstallation.

• You are not confident in your mechanical skills.

Note: Improper installation can lead to component failure, overheating issues, and warranty concerns. The water pump is driven by the timing belt, so proper timing alignment is critical.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your water pump with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off and cooled completely. You will need the following tools: socket set, torque wrench, coolant drain pan, new coolant, and new gasket.

Step 1: Safely raise the vehicle if needed and support it with jack stands.

Step 2: Drain the cooling system and properly dispose of old coolant.

Step 3: Remove the timing belt cover and timing belt to access the water pump.

Step 4: Remove the water pump mounting bolts and carefully remove the old pump. Clean the mounting surface thoroughly – remove all old gasket material and residue.

Step 5: Install the new water pump with the provided gasket. Torque the mounting bolts evenly to specification.

Step 6: Reinstall the timing belt, ensuring correct timing alignment. Reconnect all coolant hoses, refill with fresh 50/50 coolant mix (minimum 50% coolant), and bleed the cooling system to remove trapped air.

Pro Tip: Many technicians replace the timing belt, tensioner, and water pump together as a set, as the same components need to be removed to access any of them. The factory recommended interval for the belt and tensioner is 5 years/100,000 km. Coolant not only prevents overheating, it also provides lubrication for the water pump and contains corrosion inhibitors.

Common Misconceptions About Water Pumps

Myth 1: “If it‘s not leaking, the water pump is fine.”
Fact: Water pumps can fail due to bearing wear without any external leakage. Check for noise, pulley play, and overheating symptoms in addition to leaks.

Myth 2: “The water pump should only be replaced when it fails.”
Fact: Best practice is to replace the water pump during timing belt service as preventive maintenance. The same components need to be removed, so it saves labor costs to do both together.

Myth 3: “Any coolant will work in this engine.”
Fact: Coolant concentration should be at no less than 50% coolant and 50% distilled water. Coolant also provides lubrication for the water pump and has corrosion inhibitors.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
