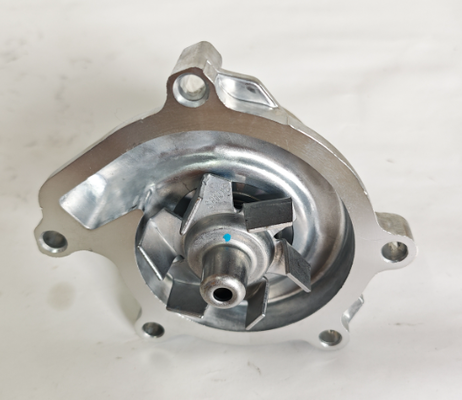

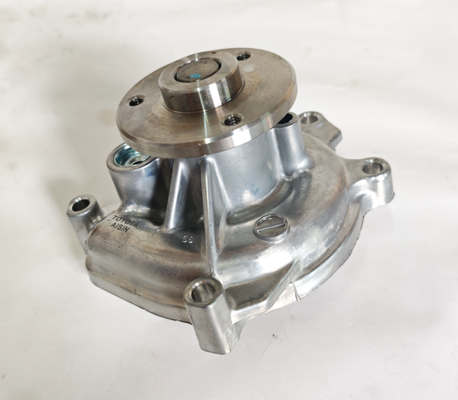

16100-29115 Water Pump Fits 1610029115 TOYOTA PLATZ VITZ YARIS/ECHO 1SZ-FE 2SZ-FE 3SZ-VE K3-VE 1.0, 1.3 & 1.5 L

Product Function Description

The water pump is a critical component of your Toyota engine's cooling system. Its primary function is to circulate coolant through the engine block, cylinder head, and radiator, dissipating the intense heat generated by the combustion process . For 1.0L 1SZ-FE, 1.3L 2SZ-FE, 1.5L 3SZ-VE, and 1.3L K3-VE engines found in Toyota Platz, Vitz, Yaris, and Echo models (1999-2005), the water pump is driven by the timing belt, and a properly functioning pump is essential for maintaining optimal engine temperature, preventing overheating, and protecting engine components from thermal damage . This component is designed to factory specifications, ensuring proper fit and reliable cooling system operation.

Common Symptoms of a Failing Water Pump

If you are experiencing any of the following symptoms, your water pump may be failing and in need of replacement:

• Coolant crust or dampness: Pink or white crusty residue around the weep hole or pump housing – this indicates the seal is failing and coolant is leaking.

• Grinding or rumbling noise: Unusual noise from the pump area that changes with engine speed – this indicates bearing wear.

• Pulley wobble: Visible play or wobble at the water pump pulley – this suggests bearing failure.

• Engine overheating: The temperature gauge reads higher than normal, especially at speed – this happens when the pump cannot circulate enough coolant.

• Temperature fluctuation: The engine temperature needle moves erratically – this suggests inconsistent coolant flow.

• Sweet coolant smell: Odor after parking with unexplained coolant loss – this suggests a slow leak vaporizing on hot engine parts.

If you have confirmed these symptoms through inspection, replacing the water pump is the recommended solution.

How to Diagnose a Faulty Water Pump

Before purchasing a replacement, perform these simple checks to confirm the water pump is the issue:
Visual Inspection: Look for pink or white crusty residue around the water pump mounting area, especially near the weep hole on the underside of the pump housing. Check for dampness or coolant stains.
Physical Test: With the engine off and cool, remove the accessory belt and spin the water pump pulley by hand. Feel for roughness, play, or wobble. A smooth rotation indicates good bearing condition.
Road Test: Monitor the temperature gauge while driving. If the engine runs hotter than normal, especially at highway speeds or under load, this indicates insufficient coolant circulation.
Coolant Level Check: If the coolant level keeps dropping with no obvious hose leaks, the pump is a prime suspect.

Product Specifications

Why Choose This Water Pump?

Restores Cooling System Function – A failing water pump causes overheating and engine damage. This pump restores proper coolant flow, keeping your engine at optimal operating temperature for reliable performance.

Prevents Costly Engine Damage – Overheating from a failed water pump can cause warped cylinder heads, blown head gaskets, and severe engine damage. Replacing a failing pump early is cost-effective protection.

Direct Replacement – Precision-engineered to match the original water pump specifications. Direct bolt-on replacement – no modifications required.

Proven Compatibility – This pump is confirmed compatible with Toyota Platz, Vitz, Yaris, and Echo models equipped with 1SZ-FE, 2SZ-FE, 3SZ-VE, and K3-VE engines . Production period for these applications spans from 1999 to 2010 depending on the specific model and market .

Quality Construction – Manufactured with cast aluminium housing and quality bearings to withstand demanding operating conditions and provide long service life.

Package Contents

1 x Water Pump. Note: Please confirm the exact package contents before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have basic mechanical skills and the required tools (socket set, torque wrench, coolant drain pan).

• You are comfortable working in the engine bay and with cooling system components.

• The job takes approximately 2-3 hours.

We recommend professional installation if:

• The replacement requires special tools (such as a vacuum fill tool for bleeding).

• You are not comfortable with timing belt removal and reinstallation (the pump is timing belt driven).

• You are not confident in your mechanical skills.

Note: Improper installation can lead to component failure, overheating issues, and warranty concerns.

Common Misconceptions About Water Pumps

Myth 1: “If it’s not leaking, the water pump is fine.”
Fact: Water pumps can fail due to bearing wear without any external leakage. Check for noise, pulley play, and overheating symptoms in addition to leaks.

Myth 2: “The water pump should only be replaced when it fails.”
Fact: Best practice is to replace the water pump during timing belt service as preventive maintenance. The same covers and engine mount have to be removed, so it saves labor costs to do both together.

Myth 3: “Any coolant will work in this engine.”
Fact: Use a 50/50 mix of Toyota-approved coolant and demineralised water. Do not mix different coolant types; if changing type, fully flush the system first.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.

Related Product Recommendations

When replacing the water pump, it is often recommended to inspect and consider replacing the following related components at the same time.

Recommended Related Parts:

Drive Belt / Accessory Belt – The water pump is driven by the accessory belt. Inspect for wear, cracking, or glazing and replace if needed.

Belt Tensioner – The tensioner maintains proper belt tension. If worn, it can cause belt slip and poor pump operation.

Thermostat – The thermostat regulates coolant flow. Replace at the same time for optimal cooling system performance.
