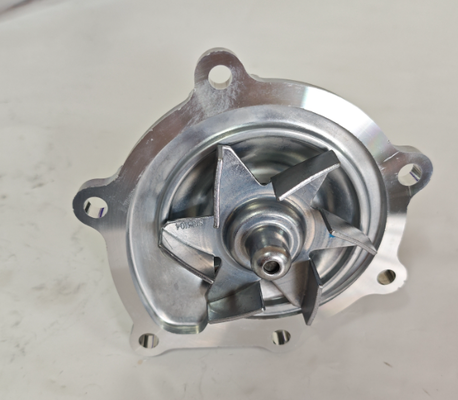

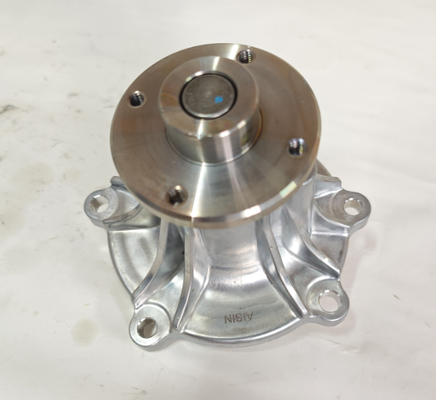

8-98004-292-1 8-97312-147-0 8-97312-147-3 Water Pump Fits Isuzu Engine 4JJ1 4JJ1-T 4JJ1-TC 4JJ1-TCX

Product Function Description

The water pump is a critical component of your Isuzu engine's cooling system. Its primary function is to circulate coolant through the engine block, cylinder head, and radiator, dissipating the intense heat generated by the combustion process . For Isuzu 4JJ1 engines, a properly functioning water pump is essential for maintaining optimal engine temperature, preventing overheating, and protecting engine components from thermal damage . This component is designed to factory specifications, ensuring proper fit and reliable cooling system operation. The pump is mechanically driven by the accessory belt and works in conjunction with the thermostat and radiator to regulate engine temperature .

Common Symptoms of a Failing Water Pump

If you are experiencing any of the following symptoms, your water pump may be failing and in need of replacement :

• Coolant leaks: Visible coolant dripping from the water pump area or crusty coolant stains around the housing – this occurs when the pump seal has worn out .

• Engine overheating: The temperature gauge reads higher than normal under load or at idle – this happens when the pump cannot circulate enough coolant to dissipate heat .

• Unusual bearing noise: Growling, whirring, or chirping noise from the water pump area that changes with engine speed – this indicates bearing wear .

• Pulley wobble: Visible play or wobble at the water pump pulley – this suggests bearing failure .

• Coolant smell: Sweet coolant odor after shutdown – this suggests a slow leak vaporizing on hot engine parts .

If you have confirmed these symptoms through inspection, replacing the water pump is the recommended solution.

How to Diagnose a Faulty Water Pump

Before purchasing a replacement, perform these simple checks to confirm the water pump is the issue :

Visual Inspection: Look for coolant stains or wetness around the water pump mounting area, especially near the weep hole on the underside of the pump housing. Check for a crusty pink or green stain around the housing .

Physical Test: With the engine off and cool, remove the accessory belt and spin the water pump pulley by hand. Feel for roughness, play, or wobble .

Road/Operation Test: Monitor the temperature gauge while operating the vehicle or equipment. If the engine runs hotter than normal, especially under load, this indicates insufficient coolant circulation .

Coolant Level Check: If the coolant level keeps dropping with no obvious hose split, the pump is a prime suspect .

When This Part Matters Most

This water pump is particularly important for vehicles and equipment that are :

• Used for towing, off-road driving, or heavy-duty hauling

• Operated in hot climates or high ambient temperatures

• Exposed to demanding industrial or agricultural working conditions

• High-kilometre/high-hour equipment where original components are reaching the end of their service life

In these conditions, the water pump works harder and wears faster, making regular inspection and timely replacement essential for reliable operation.

Product Specifications

Why Choose This Water Pump?

Restores Cooling System Function – A failing water pump causes overheating and engine damage. This new pump restores proper coolant flow, keeping your engine at optimal operating temperature for reliable performance .

Prevents Costly Engine Damage – Overheating from a failed water pump can cause warped cylinder heads, blown head gaskets, and severe engine damage. Replacing a failing pump early is cost-effective protection .

Direct Replacement – Precision-engineered to match the original water pump specifications. Direct bolt-on replacement – no modifications required.

Proven Compatibility – This pump is confirmed compatible with Isuzu 4JJ1 engine family, including applications in D-Max, KB, MU-X, and N-series trucks .

Durable Construction – Manufactured with cast aluminium housing and quality bearings to withstand demanding operating conditions and provide long service life .

Package Contents

1 x Water Pump. Note: Gasket and mounting hardware may or may not be included depending on the supplier . Please confirm the exact package contents before purchasing. Some suppliers include a seal/gasket with the pump .

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have basic mechanical skills and the required tools (socket set, torque wrench, coolant drain pan).

• You are comfortable working in the engine bay and with cooling system components.

• The job takes approximately 2-3 hours .

We recommend professional installation if:

• You are not confident in your mechanical skills.

• The replacement requires special tools (such as a vacuum fill tool for bleeding) .

• You are not familiar with cooling system repairs or belt tensioning procedures .

Note: Improper installation can lead to component failure, overheating issues, and warranty concerns.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your water pump with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off and cooled completely. You will need the following tools: socket set, torque wrench, coolant drain pan, new coolant, and new gasket.

Step 1: Safely raise the vehicle if needed and support it with jack stands.

Step 2: Drain the cooling system and properly dispose of old coolant.

Step 3: Remove the accessory belt and any components blocking access to the water pump .

Step 4: Remove the water pump mounting bolts and carefully remove the old pump. Clean the mounting surface thoroughly – remove all old gasket material and residue.

Step 5: Install the new water pump with a new gasket or O-ring. Tighten mounting bolts to the specified torque .

Step 6: Reconnect all coolant hoses, refill with fresh coolant, and bleed the cooling system to remove trapped air .

Pro Tip: Many technicians also replace the serpentine belt and inspect the tensioner and idlers at the same time . Use a vacuum fill tool to help purge air pockets .

Common Misconceptions About Water Pumps

Myth 1: “If it’s not leaking, the water pump is fine.”
Fact: Water pumps can fail due to bearing wear without any external leakage. Check for noise, pulley play, and overheating symptoms in addition to leaks .

Myth 2: “Water pumps should be replaced at a fixed mileage interval.”
Fact: For the 4JJ1 engine, there is no fixed replacement interval – replace on condition. Many owners consider replacement around 200,000-250,000 km when doing front-end work .

Myth 3: “Any coolant will work in this engine.”
Fact: Use an Isuzu-approved long-life coolant mixed at the correct ratio (typically 50/50 with demineralised water) to protect against corrosion and cavitation .

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.

Related Product Recommendations

When replacing the water pump on a 4JJ1 engine, it is often recommended to inspect and consider replacing the following related components at the same time .

Recommended Related Parts:

Thermostat – The thermostat regulates coolant flow. Replace at the same time for optimal cooling system performance.

Serpentine / Accessory Belt – The belt drives the water pump. Inspect for wear, cracking, or glazing and replace if needed .

Belt Tensioner & Idler Pulleys – The tensioner and idlers support the belt system. If they are worn, belt tension may be incorrect .
