Product Function Description

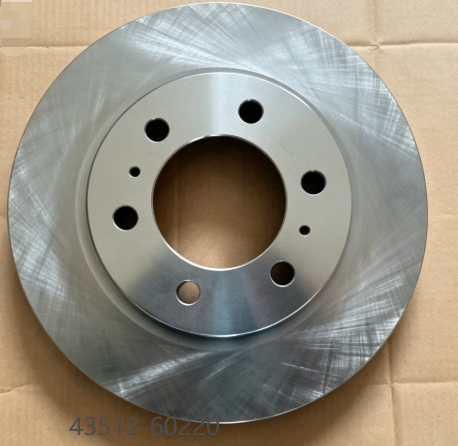

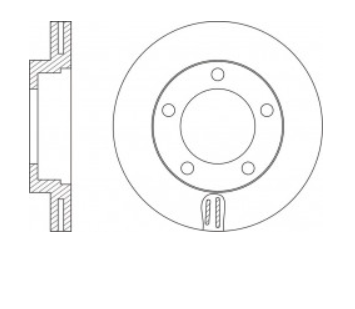

The brake disc (part number 43512-60220) is a critical component of your Toyota Land Cruiser 70 Series‘ front braking system. Its primary function is to provide a rotating friction surface that the brake pads clamp against to slow and stop the vehicle. During braking, the caliper presses the pads onto the disc surface, converting the vehicle’s kinetic energy into heat through friction. For Land Cruiser 70 Series models, a properly functioning front brake disc is essential for consistent braking performance, stable pedal feel, and safe stopping distances under all driving conditions. This vented brake disc is designed to factory specifications, ensuring proper fitment and reliable performance.

Common Symptoms of a Failing Brake Disc

If you are experiencing any of the following symptoms, your front brake disc may be failing and in need of replacement:

• Pulsating brake pedal: The pedal throbs or pushes back rhythmically during braking, especially from higher speeds – this indicates disc thickness variation

• Steering wheel vibration under braking: The steering wheel shakes specifically when the brakes are applied – front rotor issues transmit vibration through the caliper brackets

• Metallic grinding or scraping noise: A persistent metallic sound during braking – this suggests the pad backing plate has contacted the rotor surface

• Uneven or pulled braking: The vehicle pulls to one side during braking – this can result from uneven disc wear or a sticking caliper

• Blue heat discoloration on the rotor surface: Visible blue spots or patches – this indicates overheating that has altered the rotor’s properties

• Pronounced outer edge lip: A significant ridge between the swept and unswept areas – this indicates substantial wear

If you have confirmed these symptoms through inspection, replacing the brake disc is the recommended solution.

How to Diagnose a Faulty Brake Disc

Before purchasing a replacement, perform these simple checks to confirm the brake disc is the issue:

• Visual Inspection: With the wheel removed, inspect the rotor face for deep grooves, blue heat discoloration, cracks, or a pronounced outer edge lip.

• Road Test at Speed: Drive on a clear road and brake firmly from approximately 60 km/h, then repeat from 100 km/h. If the steering wheel or brake pedal vibrates specifically during braking, the discs require closer examination.

• Thickness Measurement: Use a micrometer to measure rotor thickness at multiple points. Compare with the minimum thickness specification stamped on the rotor hat.

• Dial Indicator Runout Check: Mount a dial indicator against the friction surface and rotate the rotor. Lateral runout exceeding specification indicates the disc needs replacement.

When This Part Matters Most

This front brake disc is particularly important for vehicles that are:

• Used for heavy towing or carrying heavy payloads – these conditions put more demand on the front braking system

• Operated in mountainous terrain or on long descents – sustained braking generates high temperatures that vented discs help manage

• Driven in stop-and-go traffic – frequent braking increases wear on the friction surface

• High-mileage vehicles where the original disc has worn over time

In these conditions, the front brake disc works harder and is more susceptible to wear, making regular inspection and timely replacement essential for reliable braking performance.

Product Attributes

Notes:

• This brake disc is confirmed for Toyota Land Cruiser 70 Series applications .

• Vented disc design for improved heat dissipation.

• Always verify fitment via VIN before purchase.

Why Choose This Brake Disc?

Restores Braking Performance – A worn brake disc reduces friction surface contact and braking effectiveness. This new disc restores full pad-to-rotor contact for consistent stopping power.

Eliminates Pedal Pulsation – Thickness variation on a worn disc causes pedal pulsation. This new disc provides a flat, true surface for smooth braking response.

Direct Replacement – Precision-engineered to match the original disc specifications. Direct replacement – no modifications required. This part number is confirmed for Toyota Land Cruiser 70 Series applications.

Internally Vented Design – The ventilation channels between the friction surfaces promote airflow and heat dissipation, helping maintain braking consistency under demanding conditions.

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Torque wrench

• Brake caliper tool (if needed)

• Brake cleaner

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Always replace brake discs in pairs (both front left and right) for balanced braking.

• Clean the hub surface – Debris between the disc and hub can cause runout and vibration.

• Check the brake caliper – Ensure pistons move freely and slide pins are lubricated.

• Bed in new discs and pads – Follow proper bedding procedure for optimal performance.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The Mistake When Replacing Brake Discs:

❌ Wrong: Failing to clean the hub surface or replacing only one side.

✅ Correct:

1. Always replace brake discs in pairs – Both front left and right should be replaced together for balanced braking.

2. Clean the hub surface thoroughly – Rust or debris between the disc and hub causes runout and vibration.

3. Use a torque wrench – Torque caliper and wheel bolts to specification.

4. Check caliper operation – Ensure pistons move freely; replace or rebuild if sticking.

5. Bed in new discs properly – Follow the manufacturer‘s bedding procedure.

⚠️ Remember: A disc that is not properly seated on a clean hub can cause vibration and uneven wear. Always clean the hub surface before installation.

Package Contents

1 x Front Brake Disc (Part Number 43512-60220). Note: Brake pads, caliper, mounting hardware, and brake lubricant are NOT included unless stated. Please confirm compatibility with your vehicle model before purchasing.

Common Misconceptions About Brake Discs

Myth 1: “Warped rotors” are physically bent.
Fact: What most drivers experience as “warped rotors” is actually disc thickness variation – microscopic differences in rotor thickness caused by uneven pad material transfer or heat cycling. True physical bending is rare.

Myth 2: You can replace brake pads without replacing a worn disc.
Fact: Installing new pads on a worn or scored disc prevents full pad-to-rotor contact, causing uneven braking, accelerated pad wear, and potential overheating.

Myth 3: Slotted or drilled rotors always improve braking.
Fact: For standard passenger vehicles, blank rotors generally provide optimal performance and longevity. The original brake system is engineered for the original rotor design.

Common Customer Concerns & Our Solutions

We understand that purchasing a brake disc can raise questions and concerns. Here is how we address the most common issues our customers face:

“How do I know if this brake disc fits my vehicle?” – This brake disc fits Toyota Land Cruiser 70 Series models. Please confirm your vehicle‘s model and year before ordering. The part number 43512-60220 is the most reliable identifier.

“What if I install it and the pedal still pulsates?” – Pedal pulsation after installation usually indicates hub face contamination or excessive runout. Check that the hub face was thoroughly cleaned and verify runout with a dial indicator.

“Can I replace just the brake disc without replacing the pads?” – No, it is strongly recommended to replace brake pads at the same time. Reusing old pads on a new rotor causes uneven contact and poor braking performance.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
