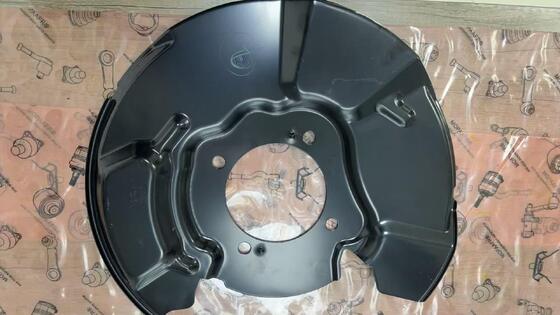

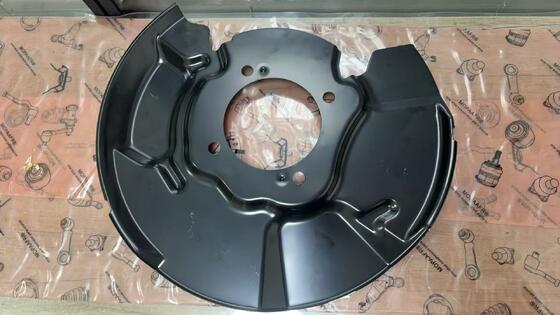

47782-60120 COVER, DISC BRAKE DUST, FRONT LH For 4778260120 TOYOTA 4RUNNER LAND CRUISER PRADO GRN21 GRJ12

Product Function Description

The front disc brake dust cover, also known as a splash shield or backing plate, is a critical component of your Toyota vehicle‘s front brake system. This shield mounts behind the brake rotor and serves to protect the brake components from water, dirt, road debris, and brake dust. For Toyota 4Runner and Land Cruiser Prado models, a properly functioning dust cover is essential for maintaining brake performance, preventing premature wear of brake components, and ensuring safe vehicle operation. This component is manufactured to factory specifications, ensuring proper fit and reliable brake system protection. The shield is specifically for the left-hand (LH) front position and is compatible with vehicles equipped with 17-inch wheels.

Common Symptoms of a Failing Brake Dust Cover

If you are experiencing any of the following symptoms, your brake dust cover may be damaged and in need of replacement:

• Grinding or scraping noise: A metallic scraping sound from the front wheel area, especially when turning – this indicates the shield has bent and is contacting the brake rotor

• Rust and corrosion: Visible rust or corrosion on the dust cover – this can weaken the shield and cause it to crack or break

• Debris contamination: Dirt, water, or debris entering the brake area due to a damaged or missing shield – this can lead to premature brake pad and rotor wear

• Visible damage: Cracks, bends, or breaks in the shield material

• Rotor damage: Grooves or scoring on the brake rotor surface caused by debris trapped between the shield and rotor

Note: Brake dust covers are often replaced due to damage from corrosion, road debris impact, or during brake service when the cover has rusted beyond repair.

When Should You Replace It?

Consider replacing your brake dust cover if you experience any of the following symptoms:

• Grinding or scraping noise from the front wheel area

• Visible rust, corrosion, cracks, or bends on the dust cover

• The cover has contacted the brake rotor and caused scoring or damage

• You are performing a brake service and the cover shows signs of rust beyond repair

• Debris has entered the brake area due to a damaged cover

Note: This brake dust cover is a genuine Toyota part with part number 47782-60120. It is confirmed compatible with 2002-2009 Toyota 4Runner models and Land Cruiser Prado KDJ120/GRJ12 models from 2002-2010 . This is the LH (Left Hand) front position and is specifically for vehicles with 17-inch wheels. When replacing, it is recommended to inspect the brake rotor and pads for wear.

Product Specifications

Applicable Models

 Installation Tips & Common Mistakes

The Mistake When Replacing a Brake Dust Cover:

❌ Wrong: Failing to check the new dust cover for clearance, or not cleaning the mounting surface properly.

✅ Correct:

1. Spin the rotor after installation – Check for any scraping or contact noise.

2. Clean the mounting surface – Remove rust and debris for proper fitment.

3. Check the dust cover shape – Ensure it matches the old cover and is not bent.

4. Replace if heavily rusted – A rusted cover can break and cause damage.

5. Use the correct bolts – The mounting bolts are specific to this application.

⚠️ Remember: A bent dust cover can rub on the rotor, causing noise and premature rotor wear. Always check clearance after installation.

 Industry Knowledge

Toyota Brake Dust Cover – What You Should Know:

The 47782-60120 is a front brake dust cover used on Toyota's body-on-frame SUV platforms, including the 4Runner (2002-2009) and Land Cruiser Prado 120 series (2002-2010). These vehicles are often used in off-road conditions where the brakes are exposed to mud, water, and debris.

Why Dust Covers Are Important for Off-Road Vehicles:

• They prevent mud and water from reaching the brake disc surface

• They protect the brake caliper and pads from debris impact

• They help maintain braking performance in wet and dirty conditions

Common Issues:

• Rust and corrosion – especially in regions with road salt

• Bent covers – from off-road impacts or debris strikes

• Missing covers – can cause accelerated brake wear

Right-Hand Side Counterpart:

• The right-hand side dust cover is typically 47781-60120 (Cover, Disc Brake Dust, Front RH)

• Always replace both sides if both are damaged

Package Contents

• 1 × Front Brake Dust Cover (LH)

• Protective packaging with part number label

Note: Mounting bolts are typically not included with the dust cover and must be reused or purchased separately.

FAQ

Q1: How can I be sure this dust cover fits my vehicle?
A1: Check the existing part number on your current dust cover. This cover fits Toyota 4Runner (2002-2009) and Land Cruiser Prado 120 series (2002-2010). Always verify via VIN.

Q2: Is this for the left or right side?
A2: This dust cover is for the front left-hand side (LH) . The right side uses part number 47781-60120.

Q3: What is the purpose of the brake dust cover?
A3: The dust cover protects the brake disc and pads from water, mud, road debris, and dust, helping to maintain braking performance and prevent premature wear.

Q4: Can I drive without the dust cover?
A4: While the vehicle can still brake without it, driving without the dust cover is not recommended as it allows contaminants to reach the brake components, leading to accelerated wear.

After Replacement Still Having Issues?

Replaced the dust cover but still having issues? Check these:

1. Is the new cover properly aligned? – Misalignment can cause rotor contact

2. Was the mounting surface cleaned? – Debris can prevent proper seating

3. Are the mounting bolts tight? – Loose bolts can allow the cover to move

4. Is the rotor warped? – A warped rotor can appear to rub even with a correct cover

5. Is the right-side cover also damaged? – Check both sides for damage

Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical mounting points and shape are verified against design specifications

• Material integrity check – steel quality and thickness are verified for durability

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each dust cover is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:

 Related Product Recommendations

When replacing the front brake dust cover, it is often recommended to inspect and consider replacing the following related components at the same time.

Right-Hand Side Brake Dust Cover – The corresponding right side dust cover (47781-60120). If the left side is damaged, the right side may also be approaching the end of its service life. Replace in pairs for even protection.

Front Brake Rotor – The brake rotor mounts in front of the dust cover. If the rotor is worn, scored, or warped, it should be replaced. The dust cover can help protect a new rotor from contamination.

Front Brake Pads – Inspect the brake pads for wear. If the pads are worn thin, replace them. Contaminated pads should always be replaced.

Brake Caliper – Inspect the caliper for leaks or sticking pistons. A sticking caliper can cause uneven pad wear and heat damage.
