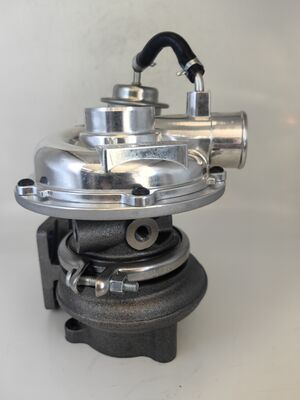

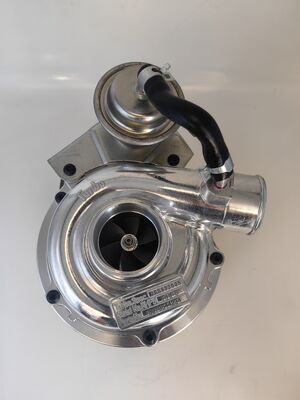

8973544234 Turbocharger for Isuzu D-MAX Pickup 3.0L TD Engine 4JH1-TC

Product Function Description

The turbocharger is a critical component for boosting the performance of your Isuzu 4JH1-TC diesel engine. It works by compressing more air into the engine's cylinders, allowing for more efficient fuel combustion and a significant increase in power output. For the Isuzu D-MAX, Rodeo, and compatible pickup models equipped with the 3.0L 4JH1-TC engine (2003-2007), a properly functioning turbocharger is essential for maintaining towing capacity, acceleration, and overall engine performance. This RHF5 model turbocharger is designed as a direct replacement, restoring the vehicle's original performance. The factory turbocharger for the 4JH1-TC engine produces up to 130-131 HP (96 kW) and features both oil and water cooling, with a journal bearing type and 360-degree thrust bearing for durability under demanding conditions.

 DIY Diagnosis Guide

How to Tell If Your Turbocharger Needs Replacement:

Look for these common signs:

1. Loss of power – Noticeable reduction in engine performance, especially during acceleration or when towing

2. Excessive smoke – Black smoke from the exhaust (fuel not fully burned) or blue smoke (oil passing seals)

3. Whining or grinding noise – Unusual high-pitched or grinding noise from the turbo area, especially when spooling

4. Oil consumption – Increased oil usage with no visible external leaks

5. Check engine light – Diagnostic trouble codes related to turbocharger underboost or overboost conditions

💡 Quick inspection: With the engine off, remove the intake pipe from the turbo and check the compressor wheel for shaft play by gently pushing the wheel side to side and in and out. Excessive play (more than 1-2mm) indicates bearing wear. Also check for oil residue in the intake pipes.

Product Attributes

Why Choose This Turbocharger?

Restores Original Performance – Over time, the factory turbo‘s bearings and seals can wear, leading to a loss of boost and power. This RHF5 turbocharger is designed to restore your vehicle’s original performance specifications, with 130-131 HP output for the 4JH1-TC engine.

Improved Towing & Drivability – By restoring proper boost pressure, this turbocharger helps recover lost low-end torque, making towing and highway driving more responsive.

Durable Construction – Built with oil and water cooling, journal bearing design, and 360-degree thrust bearing to withstand the high thermal stress of diesel engine operation.

Comprehensive Package – Includes gaskets for installation. Professional installation is recommended for optimal performance and longevity.

Installation Tips & Common Mistakes

The Mistake When Replacing a Turbocharger:

❌ Wrong: Failing to prime the turbo with oil before first start, or reusing old oil.

✅ Correct:

1. Always prime the turbo – Fill the oil feed port with clean engine oil or use a pre-lube before starting.

2. Replace the engine oil and filter – Old oil may contain debris that can damage the new turbo.

3. Check the oil supply line – Ensure the oil feed line is clear and not blocked.

4. Use new gaskets – Reusing old gaskets is a common cause of exhaust or oil leaks.

5. Torque bolts to specification – Proper torque prevents leaks and damage.

⚠️ Remember: The 4JH1-TC turbocharger is oil-cooled and water-cooled. Ensure both systems are properly connected and bled before first start.

Industry Knowledge

Isuzu 4JH1-TC Engine & Its Turbocharger:

The 4JH1-TC is a 3.0L four-cylinder turbo-diesel engine used in the Isuzu D-MAX and Holden Rodeo from approximately 2003 to 2007. It produces 96 kW (131 HP) in factory specification.

Why This Turbocharger is Important:

• The RHF5 turbo is specific to the 4JH1-TC engine and is not interchangeable with later 4JJ1-TC turbos without modification

• This engine was used in both Isuzu D-MAX in Australia and other markets

• The turbocharger is a critical component for maintaining engine performance

Common Failure Modes:

• Bearing wear from oil contamination or infrequent oil changes

• Shaft seal failure causing oil consumption

• Wastegate actuator failure causing overboost or underboost

• Cracked turbine housing from thermal stress

Maintenance Tips:

• Use high-quality diesel engine oil and change at recommended intervals

• Allow the engine to idle for 30-60 seconds before shutdown to cool the turbo

• Check the oil supply and return lines for blockages during turbo replacement

 Package Contents

• 1 × Turbocharger Assembly

• 1 × Gasket Kit

• 1 × Turbo Pre-Lubricant (some suppliers)

• Protective packaging with part number label

Note: Contents may vary by supplier. Confirm with your specific seller.

FAQ

Q1: How can I be sure this turbocharger fits my Isuzu D-MAX?
A1: Check the existing part number on your current turbocharger. This unit fits Isuzu D-MAX with 4JH1-TC 3.0L diesel engine from 2003-2007. Always verify via VIN.

Q2: Does this turbo fit the 4JJ1-TC engine?
A2: Some suppliers list the same part number for 4JJ1-TC applications, but the primary application is the 4JH1-TC. Verify by VIN before purchasing.

Q3: What is included with the turbocharger?
A3: The turbo typically includes gaskets.

After Replacement Still Having Issues?

Replaced the turbocharger but still having issues? Check these:

1. Was the turbo primed with oil before starting? – Failure to prime can damage the new turbo immediately

2. Is the oil supply line blocked? – Restricted oil flow can cause bearing failure

3. Is the wastegate actuator working? – Check for proper boost control

4. Are there air leaks in the intake system? – Boost leaks can cause power loss

5. Is the engine oil and filter new? – Old oil can contaminate the new turbo

6. Are the intercooler and pipes clean? – Oil in the intercooler from the old turbo should be cleaned

Quality Assurance & Service Commitment

• Dynamic balancing test – turbo rotating assembly is balanced to specifications

• Bearing clearance inspection – critical clearances are verified

• Seal integrity check – oil and air seals are inspected for proper fit

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each turbocharger is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:

Related Product Recommendations

When replacing the turbocharger on the Isuzu 4JH1-TC engine, it is often recommended to inspect and consider replacing the following related components at the same time.

Oil Supply Line – The oil feed line supplies oil to the turbo bearings. Over time, it can become restricted by oil residue. Inspect or replace to ensure proper oil flow.

Oil Return Line – The oil return line drains oil back to the engine. A blocked return line can cause pressure buildup and seal failure. Inspect for blockages.

Turbocharger Gasket Kit – The gasket set includes essential seals for installation. If not included with the turbo, a separate gasket kit may be required.

Intercooler – Inspect the intercooler for oil contamination from the old turbo. If contaminated, clean or replace to ensure efficient charge air cooling.

Air Filter – A clean air filter prevents debris from entering the turbo. Inspect and replace if needed.
