27060-64030 ALTERNATOR For 2706064030 TOYOTA LITEACE TOWNACE 1C 2C 3C

 Core Product Description

The 27060-64030 Alternator is a replacement charging component for Toyota Liteace and Townace vehicles equipped with 1C, 2C, and 3C diesel engines. Also known as a generator or alternator assembly, this part converts mechanical energy from the engine into electrical energy to charge the battery and power the vehicle's electrical systems.

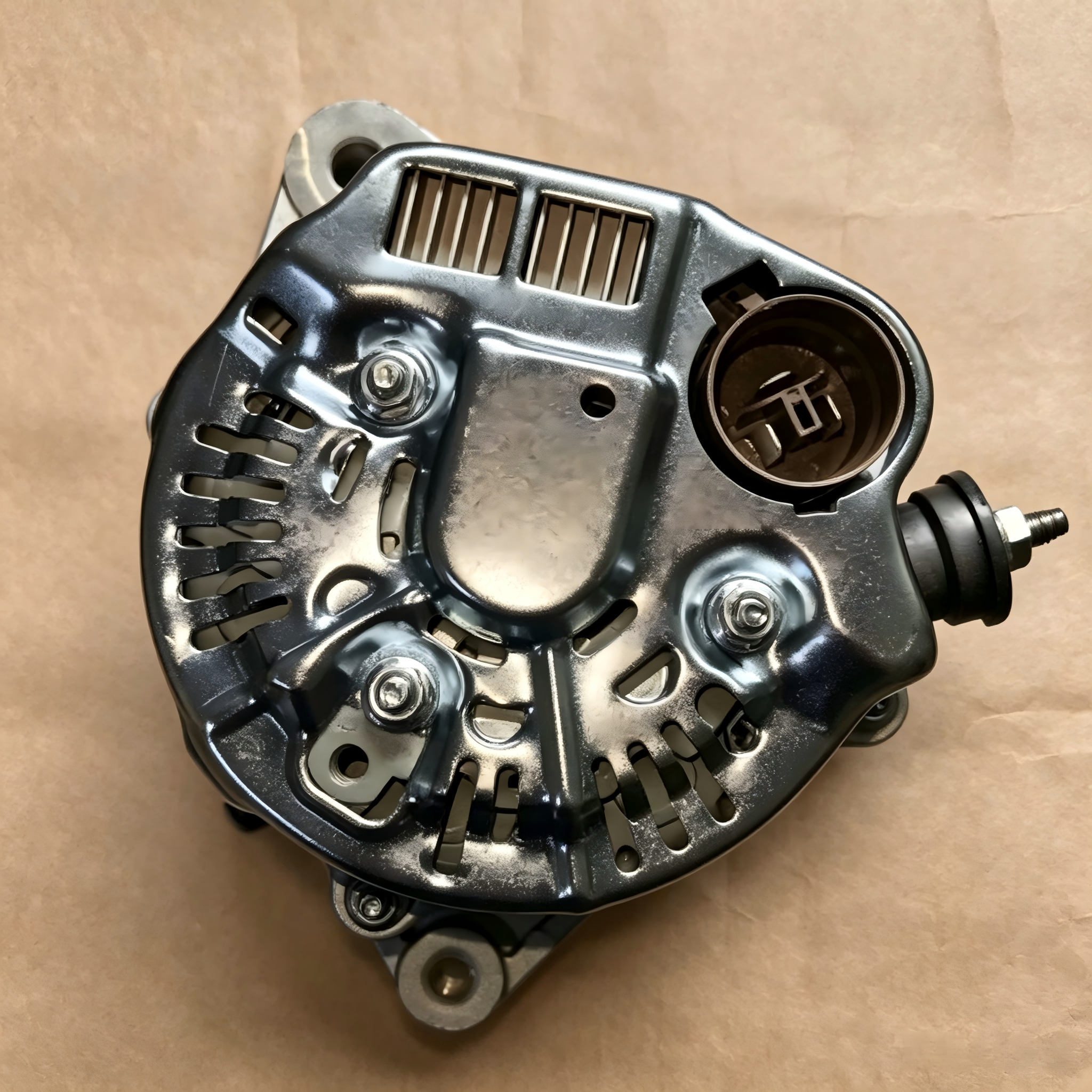

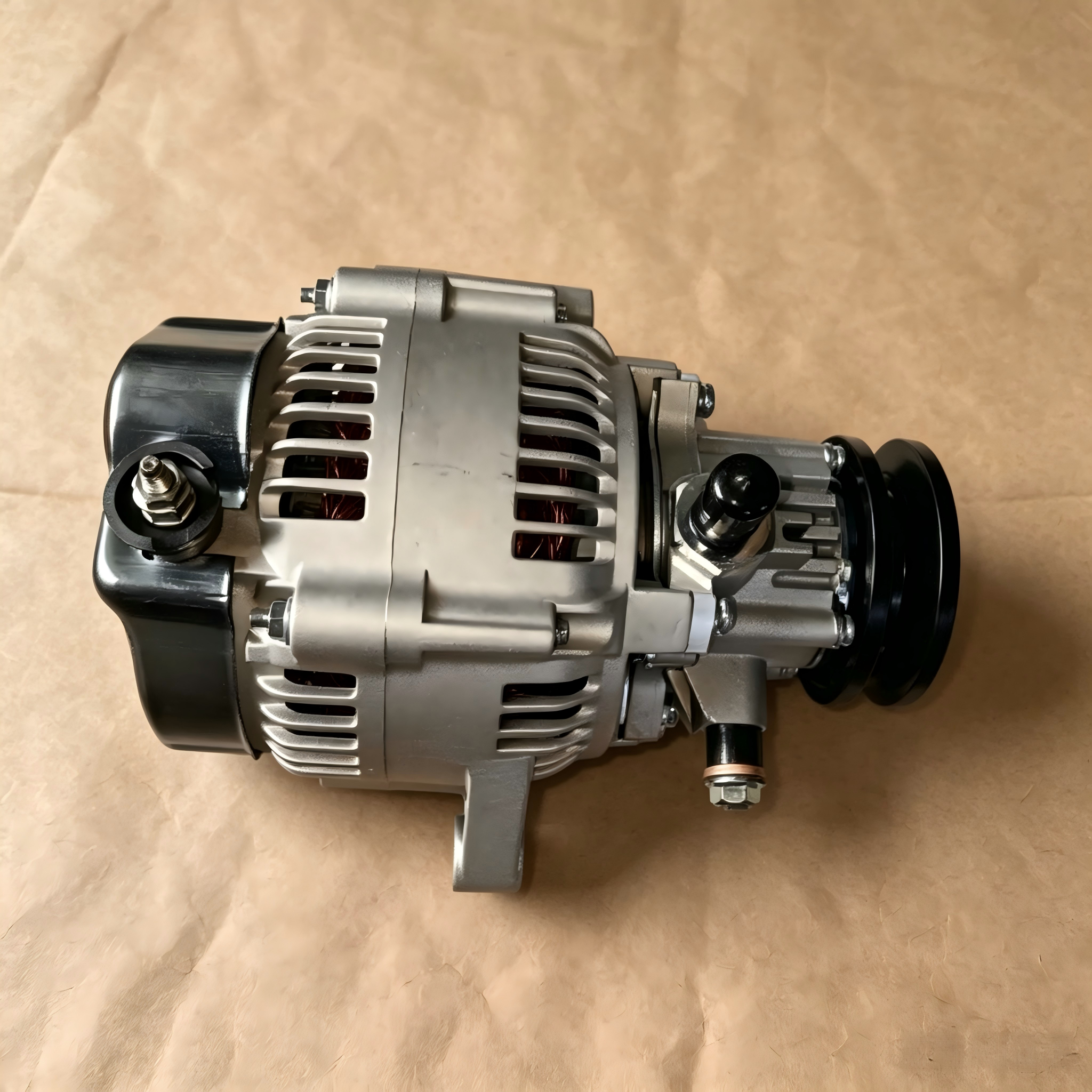

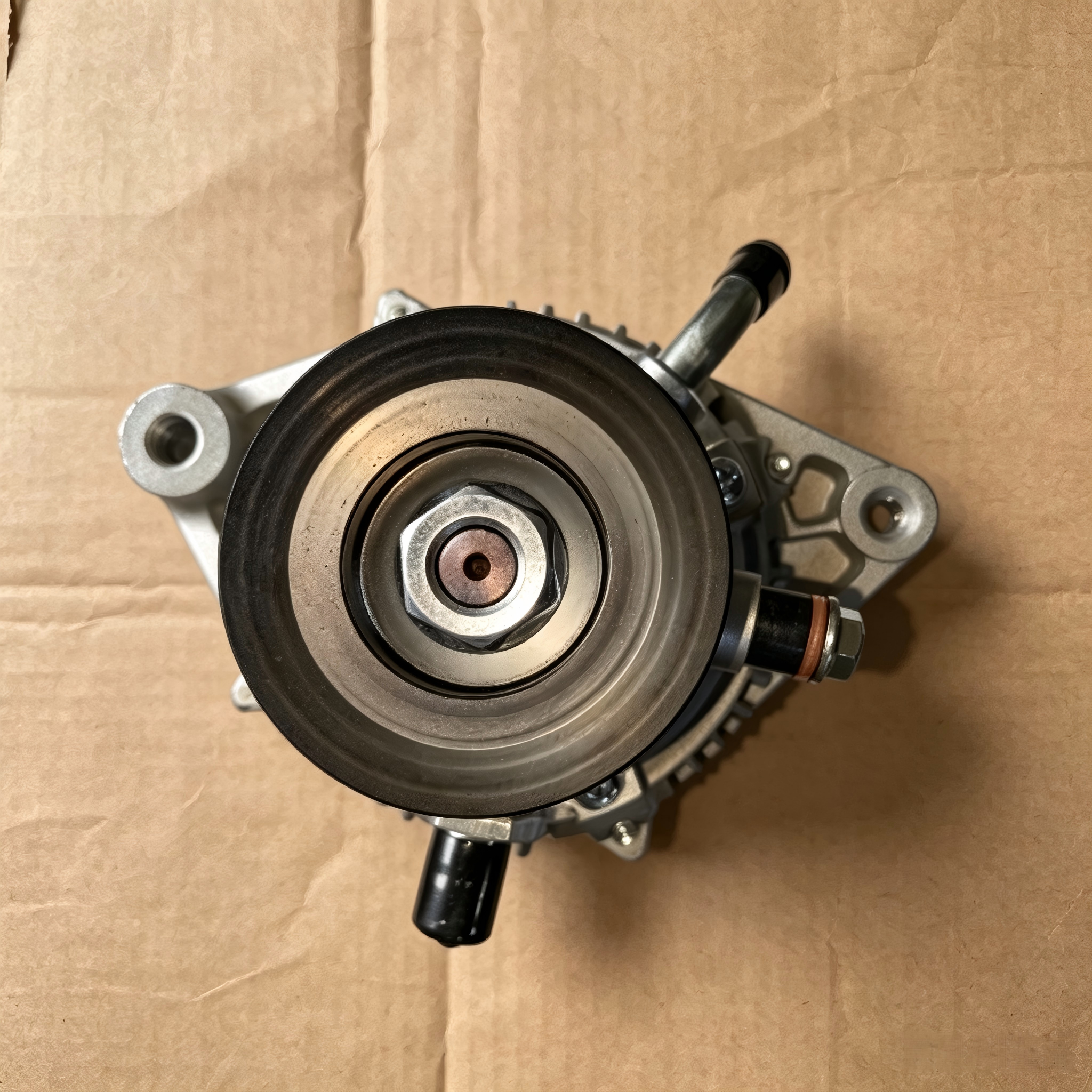

This alternator is specifically designed for third and fourth generation Toyota Liteace and Townace models from approximately 1988 to 1995 . It is a 12V unit with a 65A output and features a round 3-pin connector located at the rear, with a vacuum pump on the front and a single-groove pulley .

This is a direct replacement part for the original equipment. The alternator is commonly available as a rebuilt unit, which typically includes new IC regulator, rectifier, bearings, and brushes . It is designed for vehicles with a 12V electrical system and is compatible with both manual and automatic transmission variants depending on the specific model.

 DIY Diagnosis Guide

How to Tell If Your Alternator Needs Replacement:

Look for these common signs:

1. Battery warning light – The battery/charging warning light illuminates on the dashboard

2. Dimming headlights – Headlights appear dimmer than usual, especially at idle

3. Electrical issues – Power windows, wipers, or radio operate slowly or intermittently

4. Battery issues – Battery repeatedly loses charge or fails to hold charge

5. Unusual noise – Whining or grinding noise from the alternator area

6. Burning smell – Smell of burning rubber or electrical insulation

💡 Quick test: With the engine running, use a multimeter to check the battery voltage. A healthy charging system should read 13.5–14.7 volts at the battery terminals. If the voltage is below 13V or above 15V, the alternator may be faulty.

Product Specifications

Why Choose This Alternator Assembly?

Restores Electrical System Function – A failing alternator cannot maintain battery charge, leading to starting issues and electrical failures. This alternator restores proper charging capacity.

Restores Brake Booster Function – The integrated vacuum pump is essential for power brake assistance in diesel models. A failed pump compromises braking performance. This replacement restores full brake booster vacuum.

Prevents Unexpected Breakdown – A failed alternator leaves you stranded with a dead battery. Replacing it early provides peace of mind and reliable operation.

Direct Replacement – Precision-engineered to match the original alternator specifications. Direct bolt-on replacement – no modifications required.

Proven Compatibility – This alternator is confirmed compatible with Toyota LiteAce and TownAce models (1988-1995) with 1C, 2C, and 3C diesel engines.

Diesel-Specific Design – Manufactured with an integrated vacuum pump for diesel engine applications, providing both electrical power and brake booster vacuum in a single unit.

Package Contents

1 x Alternator Assembly. Note: Mounting bolts, drive belt, and electrical connections are NOT included unless stated. Please confirm compatibility with your Toyota model, year, and engine before purchasing. When replacing, it is recommended to inspect the drive belt and tensioner for wear and replace if necessary. This is a remanufactured unit – core return may be required depending on supplier policy .

Common Misconceptions About Alternators

Myth 1: “If the battery is new, the alternator must be fine.”
Fact: A new battery can mask alternator issues temporarily. If a new battery keeps dying, the alternator is likely the problem.

Myth 2: “Any 12V alternator with the same mounting points will fit.”
Fact: Alternators must match the vehicle‘s specific electrical rating, connector type (3-pin round), and pulley configuration. For diesel models, the integrated vacuum pump is also essential. This unit is specifically designed for 1C/2C/3C equipped Toyota models.

Myth 3: “The vacuum pump on the alternator only affects emissions.”
Fact: The vacuum pump provides critical brake booster vacuum for power-assisted braking. A failed vacuum pump can cause a hard brake pedal and reduced stopping ability.

Common Customer Concerns & Our Solutions

We understand that purchasing an alternator assembly can raise questions and concerns. Here is how we address the most common issues our customers face:

“How do I know if my alternator is bad or just a weak battery?” – The alternator can be checked with the vehicle running. A healthy alternator should produce 13.8–14.4V. If the voltage is around 12.5V or lower with the engine running, the alternator is likely the issue. We recommend having both checked by a professional if you are unsure.

“Do I need to replace the drive belt at the same time?” – While the belt is not included, we strongly recommend inspecting the belt and tensioner when replacing the alternator. If the belt shows signs of cracking, glazing, or wear, replace it to avoid future breakdowns.

“My brake pedal feels hard – is this related to the alternator?” – Yes. On diesel models like the LiteAce and TownAce, the vacuum pump is integrated into the alternator. If the alternator or its vacuum pump fails, brake assistance is lost. Replacing the alternator will restore both charging and brake vacuum functions.

After-Sales Service & Warranty

Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Electrical testing – output voltage and current are verified against specifications

• Bearing rotation test – smooth operation is confirmed

• Vacuum pump test – vacuum function is verified

• Connector fitment check – proper connector and terminal condition are confirmed

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each alternator is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:

 Related Product Recommendations

When replacing the alternator on the Toyota Liteace/Townace with 1C/2C/3C engines, it is often recommended to inspect and consider replacing the following related components at the same time.

Drive Belt / Fan Belt – The alternator is driven by the drive belt. Inspect for wear, cracking, or glazing and replace if needed. A worn belt can cause poor charging performance and noise.

Belt Tensioner (if applicable) – The tensioner maintains proper belt tension. If worn, it can cause belt slip, squeal, and poor alternator performance.

Starter Motor – The starter motor and alternator are the two main electrical components on the engine. If the alternator has failed, the starter may also be nearing the end of its service life. For 1C/2C/3C engines, the starter motor part number is often 28100-64080 or similar. Check for slow cranking or unusual noise.

Voltage Regulator – On some alternators, the voltage regulator is an external component. If the alternator is being replaced, check the voltage regulator. On the 27060-64030 alternator, the regulator is typically integrated (IC regulator) . For older models with external regulators, replacement is recommended.

Water Pump – On 1C/2C/3C engines, the water pump is driven by the same drive belt as the alternator. If the belt is being replaced or the alternator is being serviced, inspect the water pump for leaks or bearing noise.
