Product Function Description

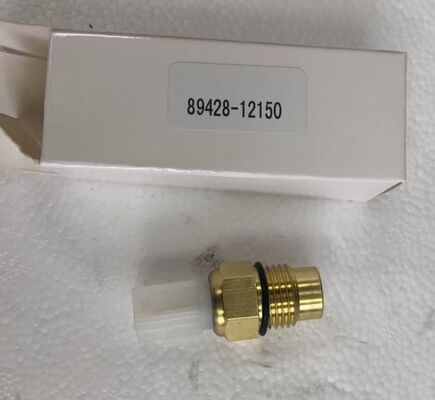

The radiator fan temperature switch (part number 89428-12150) is a critical component of your Toyota vehicle‘s engine cooling system. Its primary function is to monitor the coolant temperature and automatically activate the radiator cooling fan when the engine reaches a preset temperature threshold. When the coolant temperature rises to the switch-on point (typically around 90°C–92°C), the switch closes the electrical circuit, energizing the radiator fan relay and turning on the cooling fan. When the temperature drops to the switch-off point (typically around 85°C–87°C), the switch opens the circuit, turning the fan off. This automatic operation maintains optimal engine operating temperature, prevents overheating, and ensures efficient fuel combustion. This switch is a single-pole, normally-closed contact type with an M16 x 1.5 thread and a white, square connector.

Common Symptoms of a Failing Radiator Fan Temperature Switch

If you are experiencing any of the following symptoms, your radiator fan temperature switch may be failing and in need of replacement:

• Engine overheating at idle or low speeds: The temperature gauge climbs above normal when the vehicle is stationary or moving slowly, but returns to normal once driving at speed. This indicates the fan is not activating when needed

• Radiator fan runs continuously: The cooling fan stays on all the time, even when the engine is cold. This indicates the switch is stuck in the closed position

• Radiator fan never activates: The temperature gauge rises dangerously high, but the fan never turns on. This indicates the switch has failed in the open position

• Temperature gauge fluctuates abnormally: The coolant temperature gauge swings rapidly or erratically, suggesting inconsistent fan operation

• Blown cooling fan fuse: The fan circuit fuse blows repeatedly, potentially caused by a shorted switch

• A/C performance degrades at low speeds: The air conditioning becomes less effective when the vehicle is stationary due to insufficient airflow through the condenser

If you have confirmed these symptoms through inspection, replacing the radiator fan temperature switch is the recommended solution.

How to Diagnose a Faulty Radiator Fan Temperature Switch

Before purchasing a replacement, perform these simple checks to confirm the radiator fan temperature switch is the issue:

• Visual Inspection: Locate the switch on the radiator or thermostat housing. Inspect for coolant leaks around the threads, corrosion on the connector, or damaged wiring

• Fan Operation Test: Start the engine and let it idle until it reaches operating temperature. Observe whether the radiator fan activates when the temperature gauge reaches the normal range. If not, the switch may be faulty

• Continuity Test: Disconnect the switch connector and use a multimeter to check for continuity across the switch terminals. At room temperature (cold), the switch should show continuity (normally closed). When heated to the switch-off temperature, continuity should break

• Jumper Wire Test: With the ignition on, disconnect the switch connector and jumper the terminals. If the fan activates, the circuit and relay are functional, and the switch is the likely fault

Product Attributes

Component Location & Core Function

Location: The radiator fan temperature switch is typically mounted on the radiator or thermostat housing, with the threaded probe extending into the coolant flow. It is positioned at a point where it can accurately sense the coolant temperature as it exits the engine or enters the radiator.

Connections: The switch connects to the vehicle’s electrical system via a single-pin connector (white, square shape). The switch threads into the coolant passage with an M16 x 1.5 thread. When the coolant reaches the switch-on temperature, internal contacts close, completing the circuit to the fan relay. A sealing washer or gasket is used to prevent coolant leaks at the mounting point.

Core Function: The radiator fan temperature switch serves as the primary control for the engine cooling fan operation. It continuously monitors coolant temperature and provides an on/off signal to the fan relay. This automatic operation ensures the fan runs only when needed, maintaining optimal engine temperature while minimizing unnecessary fan operation that can drain electrical power and increase noise. The switch operates on a normally-closed contact principle, opening the circuit when the temperature drops to the switch-off point.

Package Contents

1 x Radiator Fan Temperature Switch (Part Number 89428-12150). Note: Sealing washer, electrical connector, and mounting hardware are NOT included unless stated. Please confirm compatibility with your vehicle model and year before purchasing.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your radiator fan temperature switch with confidence. Before starting, ensure the engine is completely cool and the vehicle is parked on level ground. You will need the following tools: 17mm spanner, multimeter, and coolant.

Step 1: Ensure the engine is completely cool. Place a container underneath the switch to catch any coolant that may drain.

Step 2: Disconnect the electrical connector from the switch by pressing the release tab.

Step 3: Remove the old switch using a 17mm spanner. Turn counterclockwise to loosen.

Step 4: Clean the mounting threads on the radiator or thermostat housing. Inspect the sealing surface for damage.

Step 5: Install the new switch with a new sealing washer. Tighten securely but do not over-tighten.

Step 6: Reconnect the electrical connector until it clicks into place. Top up the cooling system with the correct coolant mixture. Bleed air from the system.

Critical Step: Start the engine and let it reach operating temperature. Observe whether the radiator fan activates when the temperature gauge reaches the normal range. Check for coolant leaks around the switch.

Pro Tip: When replacing the switch, always use a new sealing washer. Clean the connector terminals and apply dielectric grease to prevent corrosion. Check the fan relay and fuse if the fan still does not operate.

Common Misconceptions About Radiator Fan Switches

Myth 1: The fan switch and coolant temperature sensor are the same thing.
Fact: The fan switch controls the radiator fan operation and is typically a single-pin on/off switch. The coolant temperature sensor (ECT) sends temperature data to the ECM for fuel injection and gauge operation and is usually a two-pin sensor. They are separate components with different functions.

Myth 2: If the fan runs, the switch is good.
Fact: A switch can fail in the closed position, causing the fan to run continuously. This drains battery power and can mask other cooling system issues. The switch should be tested for both open and closed operation.

Myth 3: Any temperature switch will work.
Fact: Temperature switches are vehicle-specific and must match the thread size, connector type, and operating temperature range. This switch is designed specifically for compatible Toyota applications with an M16 x 1.5 thread and 87°C–92°C range.

Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – thread size, connector type, and body dimensions are verified against design specifications

• Switching test – activation and deactivation temperatures are tested

• Seal integrity check – sealing integrity is confirmed

• Surface finish inspection – surface quality and corrosion protection are visually verified

Packaging Protection:
Each temperature switch is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.
