Product Function Description

The back door lock assembly (part number 69350-26120) is a critical component of your Toyota HiAce‘s rear door latching system. Its primary function is to securely latch and release the rear door or tailgate, ensuring the door stays closed while driving and can be opened when access to the cargo area or rear cabin is needed. This lock assembly incorporates a courtesy lamp switch, which activates the interior light when the rear door is opened, providing visibility in the cargo area. A properly functioning back door lock is essential for vehicle security, cargo protection, and convenient access to the rear compartment.

Common Symptoms of a Failing Back Door Lock

If you are experiencing any of the following symptoms, your back door lock assembly may be failing and in need of replacement:

• Rear door will not latch or stay closed: The door closes but does not lock securely, or pops open while driving – this indicates internal latch mechanism failure

• Difficulty opening the rear door: The door handle requires excessive force, or the door will not open at all – this suggests the lock mechanism is seized or worn

• Abnormal noise when closing the door: Grinding, rattling, or clunking sounds when closing or driving over bumps – this indicates worn or loose internal components

• Courtesy lamp does not activate: The interior light does not turn on when the rear door is opened – this suggests the courtesy lamp switch within the lock assembly has failed

• Door ajar warning light stays on: The dashboard indicates the rear door is open even when it is closed – this can result from a faulty lock assembly switch

• Visible damage or corrosion on the lock: Inspection reveals cracks, rust, or physical damage to the lock housing or latch mechanism

If you have confirmed these symptoms through inspection, replacing the back door lock assembly is the recommended solution.

Product Specifications

Model codes: KDH200, KDH202, TRH203, TRH221, TRH226, etc. (commonly known as Toyota Hiace 200 Series).

Applicable years: Mainly models produced between 2005 and 2018/2020 (including Hiace Commuter, Grandia, etc.).

Part type (Electric with Courtesy Lamp Switch): This latch belongs to the electric central locking tailgate lock. It has a built-in door open/close courtesy lamp switch, and the connector is typically a 2-pin plug, used to connect to the vehicle's central locking system.

Component Location & Core Function

Location: The back door lock assembly is located inside the rear door or tailgate panel, mounted to the door structure. It is positioned at the center or lower section of the door, with the latch mechanism engaging the striker on the vehicle body when the door is closed.

Connections: The lock assembly connects to the interior and exterior door handles via linkage rods or cables. It connects to the vehicle‘s electrical system through a connector for the courtesy lamp switch. The latch mechanism engages the striker bolt mounted on the vehicle body when the door closes. The lock cylinder (if equipped) connects to the assembly for key operation.

Core Function: The back door lock assembly serves three critical functions: (1) securely latching the rear door to prevent it from opening while driving, (2) allowing the door to be opened from inside or outside, and (3) activating the courtesy lamp when the door is opened. The internal latch mechanism engages and releases the striker, while the courtesy lamp switch completes the circuit for the interior light when the door opens.

Note:

The official standard component is a complete assembly that comes with the cable (steel wire pull cable) and the door handle linkage mechanism pre-assembled.

When purchasing, check carefully which type you need.

Aftermarket / split sales: In many cases, only the plastic clip of the tailgate lock is broken, the cable is snapped, or the motor has failed. To save on repair costs, the domestic aftermarket parts market (e.g., aftermarket replacement parts) often sells these separately:

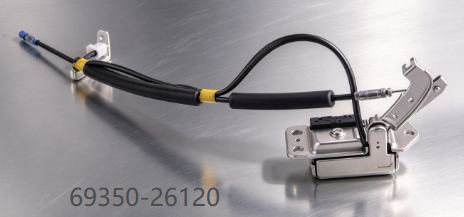

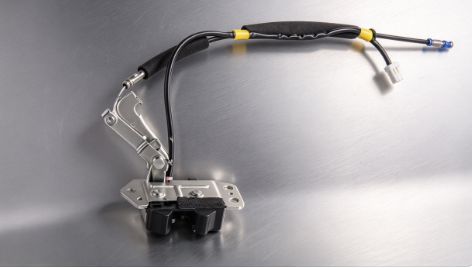

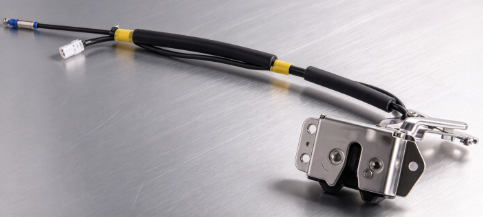

• With Cable Assembly: Comes complete and can be installed directly as a whole-unit replacement — the most time-saving option.

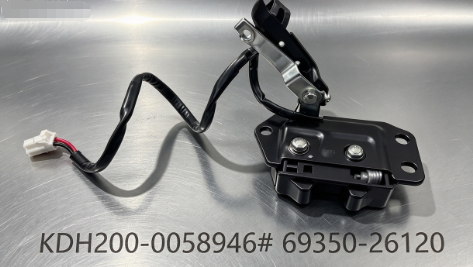

• Latch Only (Without Cable): Includes only the core metal latch body and the electric actuator. During replacement, the original steel cable must be removed from the old latch and reassembled onto the new latch.

• Both "with cable" and "without cable" options are available from A1 AUTO PARTS CONNECTION.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your back door lock assembly with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off. You will need the following tools: trim removal tool, socket set, and screwdrivers.

Step 1: Open the rear door. Remove the door trim panel by carefully prying off the clips with a trim removal tool. Disconnect any electrical connectors for the door lamp or speakers.

Step 2: Locate the lock assembly inside the door. Note the routing of linkage rods and cables before disconnecting them.

Step 3: Disconnect the interior and exterior handle linkage rods from the lock assembly. Disconnect the electrical connector for the courtesy lamp switch.

Step 4: Remove the mounting bolts or screws securing the lock assembly to the door structure. Carefully remove the old lock assembly.

Step 5: Install the new lock assembly into position. Secure with mounting bolts or screws. Reconnect the linkage rods to the interior and exterior handles. Reconnect the electrical connector.

Step 6: Reinstall the door trim panel. Test the door operation: close and open the door several times from both inside and outside. Verify the courtesy lamp activates when the door opens.

Critical Step: After installation, verify that the door latches securely and does not have excessive play. Check that the door ajar warning (if equipped) functions correctly. Adjust the striker position if necessary for proper latching.

Pro Tip: When replacing the lock assembly, inspect the linkage rods and clips for wear and replace if necessary. Lubricate the latch mechanism with white grease before installation. Ensure all electrical connectors are fully seated.

Common Misconceptions About Back Door Locks

Myth 1: The lock assembly rarely needs replacement.
Fact: Lock assemblies wear over time, especially on vehicles with frequent rear door use such as commercial vans. The internal latch mechanism and courtesy lamp switch can fail, requiring replacement.

Myth 2: Any lock assembly will fit.
Fact: Lock assemblies are vehicle-specific and must match the door structure and linkage configuration. This lock is specifically designed for Toyota HiAce and compatible applications.

Myth 3: A door that closes is a door that is secure.
Fact: A door may close but not latch securely if the lock mechanism is worn. Always test that the door is fully latched and cannot be opened without operating the handle.

After Replacement Still Having Issues?

Replaced the lock but still having issues? Check these:

1. Is the linkage properly connected? – Incorrect linkage prevents proper lock operation

2. Is the striker aligned? – Misaligned striker prevents secure latching

3. Is the courtesy lamp switch connected? – Loose connector prevents light activation

4. Is the door alignment correct? – Door sag or misalignment affects lock engagement

5. Is the lock lubricated? – Dry mechanism causes sticking and noise

6. Are the mounting screws tight? – Loose lock causes poor engagement

7. Is the electrical connector clean? – Corrosion causes intermittent courtesy lamp operation

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
