Product Function Description

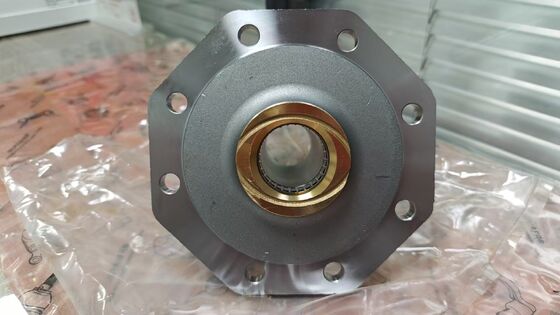

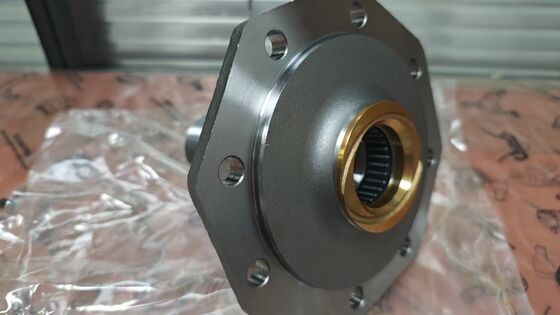

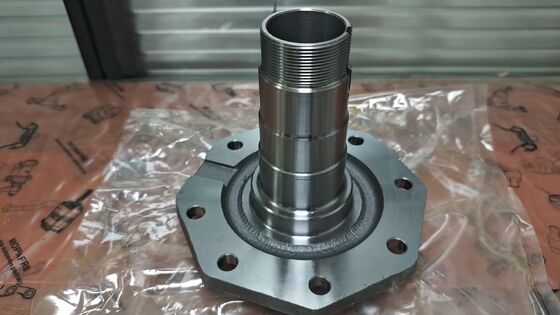

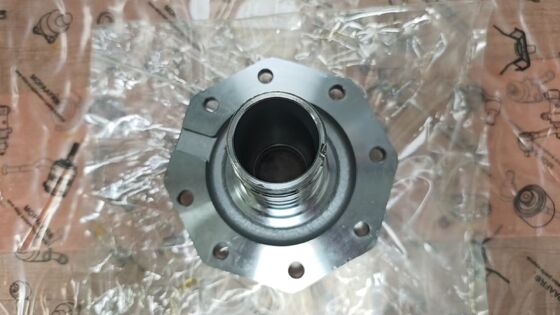

The steering knuckle spindle (part number 43401-60081) is a critical component of your Toyota Land Cruiser’s front axle and wheel bearing system. Its primary function is to provide the stationary mounting surface on which the front wheel hub and wheel bearings rotate. The spindle bolts to the steering knuckle and extends outward, supporting the wheel bearings that allow the hub and wheel to rotate smoothly while carrying the weight of the vehicle. For Toyota Land Cruiser 70, 80 Series models, a properly functioning spindle is essential for correct wheel bearing preload, stable wheel rotation, and safe vehicle operation. This component is supplied with a needle roller bearing and thrust bushing pre-installed, reflecting the updated design used in later model applications.

How to Diagnose a Faulty Steering Knuckle Spindle

Before purchasing a replacement, perform these simple checks to confirm the spindle is the issue:

• Wheel Bearing Play Test: Raise the front axle and support it on stands. Grasp the tire at the top and bottom and attempt to rock it. If movement is present even after bearing adjustment, the spindle may be worn.

• Preload Stability Check: Set the wheel bearing preload to specification and drive the vehicle. Recheck preload after a short period. If preload has changed significantly, the bearing may be spinning on a worn spindle.

• Visual Inspection: With the hub and bearings removed, inspect the spindle bearing surface for scoring, grooves, a step, or blue heat discoloration. Measure the spindle outer diameter at the bearing location and compare to specification.

• Bearing Race Fit Check: With the bearing race installed on the spindle, attempt to rotate the race by hand. If the race spins on the spindle, the spindle is worn and requires replacement.

 Product Attributes

Component Location & Core Function

Location: The steering knuckle spindle is located at the outer end of the front axle assembly, bolted to the steering knuckle. It extends outward from the knuckle toward the wheel, providing the mounting surface for the wheel hub and wheel bearings. The spindle sits between the steering knuckle (inboard) and the wheel hub (outboard).

Connections: The spindle bolts to the steering knuckle with nuts and is sealed by gaskets and seals. The wheel bearings mount on the spindle outer surface, supporting the hub. The spindle also has an internal bore that houses the needle roller bearing and thrust bushing, which support the outer axle shaft (CV joint) as it passes through. The spindle connects the stationary steering knuckle to the rotating wheel hub assembly.

Core Function: The spindle serves as the stationary axle on which the wheel bearings and hub rotate. It carries the vertical load of the vehicle through the wheel bearings and maintains the correct position of the wheel relative to the steering knuckle. The internal needle roller bearing and bushing support the outer end of the front axle shaft, allowing it to rotate while maintaining alignment with the differential. This updated design (with needle roller bearing and shorter bushing) replaced the earlier one-piece brass bushing setup to reduce noise and vibration in high-mileage front ends.

Why Choose This Steering Knuckle Spindle?

Restores Wheel Bearing Preload – A worn spindle allows the bearing race to spin, causing preload to wander and become unstable. This new spindle provides a true bearing surface for stable, consistent preload.

Eliminates Bearing Spin and Heat – When the bearing race spins on a worn spindle, heat builds up and damages components. This new spindle provides proper bearing fit, preventing spin and heat damage.

Direct Replacement – Precision-engineered to match the original spindle specifications. Direct replacement – no modifications required. Part number 43401-60081 is confirmed for Toyota Land Cruiser 70, 80 Series applications and replaces 43401-60080, 43401-60041, and 43401-60040.

Updated Design – Supplied with needle roller bearing and thrust bushing pre-installed, reflecting the later design that reduces noise and vibration in high-mileage front ends.

Vehicle Fitment

Package Contents

1 x Steering Knuckle Spindle (Part Number 43401-60081) with needle roller bearing and thrust bushing pre-installed. Note: Please confirm compatibility with your vehicle model and year before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have extensive experience servicing front axle and wheel bearing components on solid axle vehicles.

• You have access to a torque wrench, jack stands, brass bar, hammer, bearing locknut socket, and a spring scale for preload measurement.

• You can safely lift and support the vehicle on level ground.

We recommend professional installation if:

• You are unfamiliar with front axle disassembly and wheel bearing preload adjustment.

• You lack the proper tools for bearing preload measurement and adjustment.

• You are not confident in setting wheel bearing preload or performing front end alignment.

Note: Improper installation can lead to wheel bearing failure and safety issues. After installation, wheel bearing preload must be properly set and verified. Use new gaskets and seals. Follow vehicle-specific procedures for preload adjustment.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your steering knuckle spindle with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off. You will need the following tools: torque wrench, jack stands, brass bar, hammer, bearing locknut socket, and spring scale.

Step 1: Lift and secure the front of the vehicle on jack stands. Remove the wheel.

Step 2: Remove the brake caliper and rotor. Support the caliper aside without disconnecting the brake hose. Remove the front axle hub.

Step 3: Remove the ABS speed sensor (if equipped). Remove the dust seal, dust cover, and gasket after removing the mounting bolts.

Step 4: Using a brass bar and hammer, tap the knuckle spindle from the steering knuckle. Remove the spindle and gasket.

Step 5: Clean the steering knuckle mounting surface. Inspect the new spindle for correct bearing and bushing installation.

Step 6: Install the new spindle with a new gasket. Torque the mounting nuts to specification. Reinstall the hub and wheel bearings.

Critical Step: Set wheel bearing preload according to specification. Verify preload with a spring scale. Check for smooth rotation and no play. Perform a front end alignment.

Pro Tip: When replacing the spindle, always use new gaskets and seals. Inspect wheel bearings and replace if worn. Verify that the needle roller bearing and bushing are properly lubricated before installation.

Common Misconceptions About Steering Knuckle Spindles

Myth 1: The spindle rarely needs replacement.
Fact: Spindles wear over time, especially when wheel bearings have been loose or have failed. The bearing race can spin on the spindle surface, wearing it down and causing preload instability. Regular inspection is important.

Myth 2: Loose wheel bearings are always a bearing problem.
Fact: Loose wheel bearings that cannot be tightened to specification often indicate spindle wear, not bearing wear. If the bearing race spins on the spindle, new bearings alone will not solve the problem.

Myth 3: Any spindle will fit.
Fact: Spindles are vehicle-specific and must match the axle and wheel bearing specifications. This spindle is specifically designed for Toyota Land Cruiser 70, 80 Series applications.

Common Customer Concerns & Our Solutions

We understand that purchasing a steering knuckle spindle can raise questions and concerns. Here is how we address the most common issues our customers face:

For Individual Vehicle Owners:

“What if I install it and the wheel bearings still feel loose?” – Loose wheel bearings after spindle replacement may indicate that preload was not properly set or that new bearings are needed. Check preload adjustment and inspect bearings for wear.

“Can I replace just the spindle without replacing the bearings?” – It is strongly recommended to replace wheel bearings at the same time. Reusing old bearings on a new spindle can cause uneven wear and preload issues.

For Repair Shops and Professionals:

“Customer says preload won’t hold even after bearing adjustment.” – Check the spindle bearing surface for wear. If the race spins on the spindle, the spindle must be replaced. New bearings alone will not correct this condition.

“How to avoid comebacks after spindle replacement?” – Use new gaskets and seals, set bearing preload precisely with a spring scale, inspect all bearings and replace if worn, and perform a front end alignment before returning the vehicle.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
