Product Function Description

The front axle outer shaft (part number 43405-60100) is a critical component of your Toyota Land Cruiser 70 Series‘ front axle and drivetrain system. Its primary function is to transmit rotational torque from the front differential to the front wheel hub, enabling power delivery to the front wheels in four-wheel drive operation. This outer shaft assembly incorporates a Birfield constant velocity (CV) joint on the outboard (wheel) side, which allows the shaft to transmit power smoothly while accommodating the steering angles of the front wheels. For Land Cruiser 70 Series models equipped with solid front axles, a properly functioning outer axle shaft is essential for reliable four-wheel drive engagement, smooth power delivery, and safe vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable performance.

DIY Diagnosis Guide

How to Tell If Your Front Axle Outer Shaft Needs Replacement:

Look for these common signs:

1. Clicking noise when turning – Metallic clicking sound during sharp turns, especially at low speed

2. Vibration while driving – Vibration felt through the floor or steering wheel, increasing with speed

3. Grease leakage – Grease flung onto the inner wheel well from a torn CV boot

4. Excessive play in front wheel – Wheel moves when rocked by hand, indicating worn CV joint

5. Difficulty steering at full lock – Grinding or binding sensation when steering to full lock

💡 Quick inspection: With the vehicle on level ground, turn the steering wheel to full lock and inspect the front axle boots for cracks, tears, or grease leakage. Test drive in a tight circle at low speed and listen for clicking noises. Excessive play in the front wheel when jacked up may indicate a worn Birfield joint.

 Product Attributes

Component Location & Core Function

Location: The front axle outer shaft is located inside the front axle housing and steering knuckle assembly. It extends from the front differential side gear (inboard) through the axle housing, emerging at the steering knuckle where it connects to the wheel hub (outboard). The Birfield CV joint is positioned within the steering knuckle assembly, enclosed by the knuckle spindle and oil seal retainer.

Connections: The inboard end of the shaft engages with the front differential side gear through splines. The outboard end (CV joint housing) engages with the wheel hub drive flange splines. The CV joint allows the shaft to rotate while the steering knuckle pivots for steering. The shaft is supported by a bushing inside the knuckle spindle and sealed by oil seals on both ends. On models with drive flanges (not locking hubs), the outer splines engage directly with the drive flange.

Core Function: The outer axle shaft serves two critical functions: (1) transmitting rotational torque from the front differential to the front wheel hub for four-wheel drive operation, and (2) allowing the front wheels to steer while maintaining constant velocity power delivery through the Birfield CV joint. The CV joint enables smooth power transmission at varying steering angles without vibration or binding. This shaft is specifically designed for applications with drive flanges only and does not work with automatic or manual locking hubs, as the outer spline pitch is different.

When This Part Matters Most

This front axle outer shaft is particularly important for vehicles that are:

• Used for off-road driving or rough terrain – these conditions impose high impact and articulation loads on the front axle and CV joints

• Operated in 4WD mode frequently – constant power delivery through the front axle accelerates wear on shaft splines and CV joint components

• Driven with heavy loads or towing – additional weight increases stress on the drivetrain

• High-mileage vehicles where original axle components have worn over time

• Vehicles with drive flanges where the outer splines engage directly with the hub flange

In these conditions, the outer axle shaft works harder and is more susceptible to wear, making regular inspection and timely replacement essential for reliable 4WD operation and safety.

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric, heavy-duty)

• Torque wrench

• Ball joint separator

• Bearing press / drift set

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• This procedure requires specialized tools and experience. Improper installation can result in loss of drive or steering failure.

• Always replace the CV boot and grease when installing a new axle shaft.

• Check the drive flange for wear or damage.

• Perform wheel alignment after front axle service.

• If you are unsure about any step, consult a qualified mechanic.

 Installation Tips & Common Mistakes

The Mistake When Replacing a Front Axle Outer Shaft:

❌ Wrong: Attempting to use this shaft with locking hubs, or failing to check the drive flange compatibility.

✅ Correct:

1. Verify drive flange compatibility – This shaft works only with drive flanges (43421-60030, 43421-60060), not with automatic or manual locking hubs .

2. Always replace the CV boot and grease – A new shaft with a used boot will fail prematurely.

3. Check the drive flange splines – Worn drive flange splines will damage the new axle shaft.

4. Use proper tools – Do not hammer the axle shaft into place; this damages the CV joint and bearings.

5. Perform wheel alignment – Steering geometry must be reset after front axle service.

⚠️ Remember: Installing this shaft on a vehicle with locking hubs will cause the splines to not engage properly, resulting in loss of 4WD function .

Package Contents

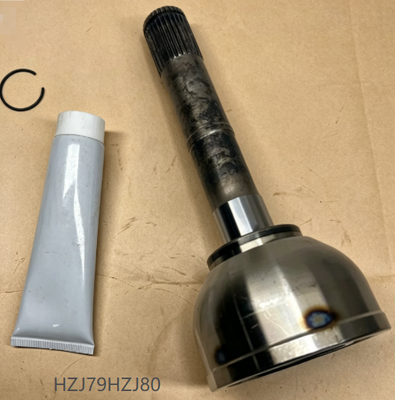

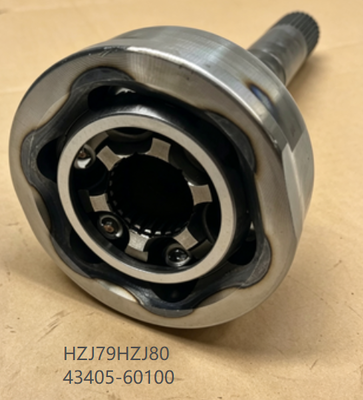

1 x Front Axle Outer Shaft (Part Number 43405-60100). Note: Please confirm compatibility with your vehicle model and configuration before purchasing.
