Product Function Description

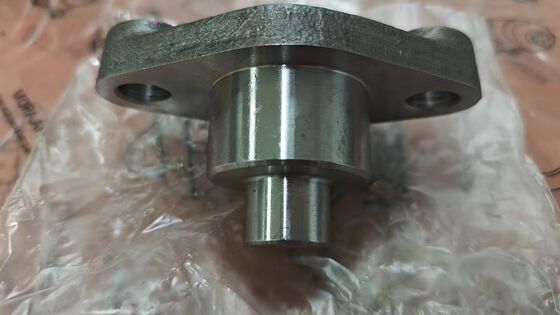

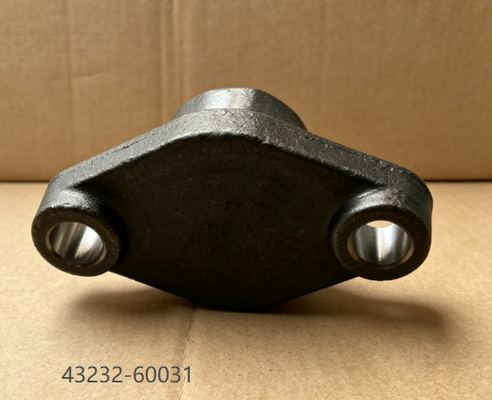

The steering knuckle bearing cap (part number 43232-60031) is a critical structural component of your Toyota Land Cruiser 70 Series‘ front axle assembly. Its primary function is to retain and position the upper steering knuckle bearing while allowing proper bearing preload adjustment through shims. This bearing cap, also referred to as the swivel hub bearing cap, bolts to the top of the steering knuckle and secures the upper trunnion bearing inner race in place. For Land Cruiser 70 Series models equipped with solid front axles, a properly installed and torqued bearing cap is essential for correct steering knuckle alignment, stable steering operation, and safe vehicle handling. This component is designed to factory specifications, ensuring proper fit and reliable performance.

Common Symptoms of a Failing Bearing Cap

If you are experiencing any of the following symptoms, your steering knuckle bearing cap may be failing or improperly installed and in need of replacement:

• Steering wander or poor returnability: The vehicle wanders on straight roads or the steering does not return to center properly – this can indicate improper knuckle bearing preload due to a compromised bearing cap

• Excessive steering play or looseness: The steering wheel has excessive free play before the wheels respond – this suggests worn or improperly seated knuckle bearings

• Clunking or popping noises when turning: A metallic clunk or pop sound when steering or going over bumps – this can result from a loose or damaged bearing cap

• Uneven or irregular front tire wear: Front tires show uneven wear patterns, especially cupping or scalloping – this indicates knuckle alignment or preload issues

• Visible damage or corrosion on the cap: Inspection reveals cracks, deep rust, or deformation on the bearing cap surface

• Grease leakage around the cap area: Visible grease around the knuckle upper bearing area – this indicates seal failure or improper cap seating

If you have confirmed these symptoms through inspection, replacing the steering knuckle bearing cap is the recommended solution.

How to Diagnose a Faulty Bearing Cap

Before purchasing a replacement, perform these simple checks to confirm the bearing cap is the issue:

• Visual Inspection: With the vehicle safely supported and the wheel removed, inspect the bearing cap for cracks, deep rust, deformation, or signs of grease leakage around the seating area.

• Steering Play Test: With the front wheels on the ground, have an assistant turn the steering wheel slightly left and right while you observe the knuckle area. Excessive movement or noise at the upper bearing cap indicates wear or looseness.

• Jack Test: Raise the front axle and support it on stands. Grasp the top and bottom of the tire and attempt to rock it. Excessive vertical movement may indicate worn knuckle bearings or an improperly seated bearing cap.

• Road Test: Drive at low speed and perform figure-eight turns. Listen for clunking or popping noises from the front end. Note any steering wander or poor returnability that may indicate preload issues.

 Product Attributes

Component Location & Core Function

Location: The steering knuckle bearing cap is located at the top of the steering knuckle on the front axle assembly. It sits above the upper steering knuckle bearing, sandwiching the bearing inner race and shims between itself and the steering knuckle. There is one bearing cap per steering knuckle, and the same part number is used on both left and right sides.

Connections: The bearing cap bolts to the top of the steering knuckle. Shims are placed between the bearing cap and the steering knuckle to set bearing preload. The bearing cap presses down on the upper bearing inner race, which rotates on the trunnion bearing. The knuckle arm (steering arm) is mounted separately on the lower side. During assembly, the bearing cap is driven into the bearing inner race using a special service tool, then secured with four nuts and spring washers.

Core Function: The bearing cap serves three critical functions: (1) retaining the upper steering knuckle bearing in position, (2) allowing bearing preload adjustment through shim selection, and (3) providing a structural mounting point for the upper end of the steering knuckle pivot. Proper bearing preload ensures the knuckle rotates smoothly for steering while eliminating excessive play that could cause wander or vibration. When the axle housing or steering knuckle is replaced, the knuckle bearing preload must be re-adjusted, requiring the bearing cap to be removed and reinstalled with the correct shim thickness.

Package Contents

1 x Steering Knuckle Bearing Cap (Part Number 43232-60031). Note: Shims, bearings, nuts, spring washers, and mounting hardware are NOT included unless stated. Please confirm compatibility with your vehicle model before purchasing.

Common Misconceptions About Bearing Caps

Myth 1: The bearing cap rarely needs replacement.
Fact: While the bearing cap is durable, it can corrode, crack, or deform over time, especially on off-road vehicles. It should be inspected during any knuckle service and replaced if worn or damaged.

Myth 2: Any bearing cap will fit.
Fact: Bearing caps are vehicle-specific and must match the steering knuckle and bearing specifications. This cap is specifically designed for Toyota Land Cruiser 70 Series and compatible applications.

Myth 3: Bearing cap replacement does not affect alignment.
Fact: The bearing cap is part of the steering knuckle assembly that determines knuckle bearing preload and alignment. After replacement, preload must be verified and a front end alignment is recommended.

 Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical dimensions are verified against design specifications

• Material verification – steel hardness and thickness are tested

• Surface finish inspection – surface quality and sealing surface are visually verified

• Packaging inspection – each unit is sealed in protective packaging

Packaging Protection:
Each bearing cap is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:

Related Product Recommendations

When replacing the steering knuckle bearing cap, it is often recommended to inspect and consider replacing the following related components at the same time.
