Product Function Description

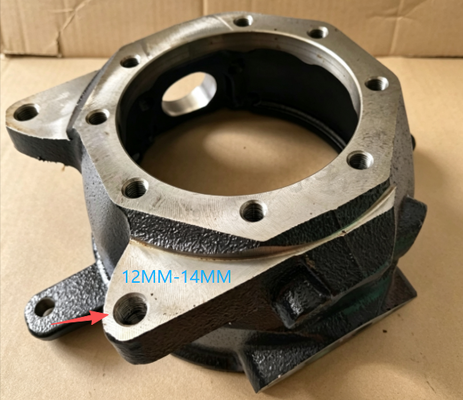

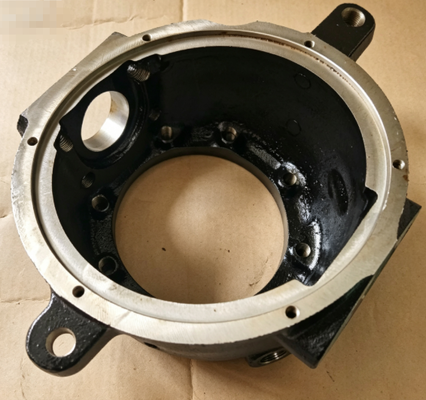

The steering knuckle (part number 43211-60111 for RH / 43212-60111 for LH) is a critical structural component of your Toyota Land Cruiser 70 Series‘ front axle and steering system. Its primary function is to support the front wheel hub and brake assembly while providing the pivot point for steering rotation. The knuckle connects the wheel hub to the steering linkage and suspension components, bearing both vertical loads from the vehicle’s weight and lateral forces during cornering. For Land Cruiser 70 Series models equipped with solid front axles, a properly functioning steering knuckle is essential for precise steering control, stable handling, and safe vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable performance.

Common Symptoms of a Failing Steering Knuckle

If you are experiencing any of the following symptoms, your steering knuckle may be failing and in need of replacement:

• Excessive steering play or looseness: The steering wheel has excessive free play before the wheels respond – this indicates worn knuckle bearings or kingpin bushings

• Clunking or popping noises when turning: A metallic clunk or pop sound when steering or going over bumps – this suggests worn knuckle components or loose mounting

• Uneven or irregular tire wear: Front tires show uneven wear patterns, especially cupping or scalloping – this indicates knuckle or alignment issues

• Steering wander or poor returnability: The vehicle wanders on straight roads or the steering does not return to center properly – this suggests knuckle binding or wear

• Visible damage or cracks on the knuckle: Inspection reveals cracks, deep rust, or impact damage on the knuckle body – this indicates structural compromise

• Grease leakage from the knuckle area: Visible grease around the knuckle or swivel housing – this indicates worn seals or damaged components

If you have confirmed these symptoms through inspection, replacing the steering knuckle is the recommended solution.

How to Diagnose a Faulty Steering Knuckle

Before purchasing a replacement, perform these simple checks to confirm the steering knuckle is the issue:

• Visual Inspection: With the wheel removed and the vehicle safely supported, inspect the knuckle for cracks, deep rust, impact damage, or grease leakage around the swivel housing area.

• Steering Play Test: With the front wheels on the ground, have an assistant turn the steering wheel slightly left and right while you observe the knuckle and steering linkage. Excessive movement before wheel response indicates wear.

• Jack Test: Raise the front axle and support it on stands. Grasp the top and bottom of the tire and attempt to rock it. Excessive movement may indicate worn knuckle bearings or kingpin bushings.

• Road Test: Drive at low speed and perform figure-eight turns. Listen for clunking or popping noises from the front end. Note any steering wander or poor returnability.

When This Part Matters Most

This steering knuckle is particularly important for vehicles that are:

• Used for off-road driving or rough terrain – these conditions impose high impact loads on the front axle and steering components

• Operated with heavy loads or towing – additional weight increases stress on the knuckle and steering system

• Driven in areas with poor road conditions – potholes and rough surfaces accelerate wear on knuckle components

• High-mileage vehicles where original knuckle components have worn over time

In these conditions, the steering knuckle works harder and is more susceptible to wear, making regular inspection and timely replacement essential for reliable steering and safety.

Product Attributes

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric, heavy-duty)

• Torque wrench

• Ball joint separator

• Bearing press / drift set

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• This procedure requires specialized tools and experience. Improper installation can result in steering failure.

• Always replace wheel bearings and seals when installing a new knuckle.

• Check and adjust wheel alignment after installation.

• If you are unsure about any step, consult a qualified mechanic.

 Package Contents

• 1 × Steering Knuckle (Right Hand 43211-60111 OR Left Hand 43212-60111)

• Protective packaging with part number label

Note: Wheel bearings, seals, and mounting hardware are not included. Order separately as needed.

 Inspection & Maintenance Recommendations

The steering knuckle should be inspected during front axle service. Signs of cracks, damage, or abnormal steering behavior indicate the need for inspection or replacement.

Common indicators that the knuckle may need replacement:

Inspection Checklist:

• Inspect knuckle housing for cracks, corrosion, or damage.

• Check wheel bearing play and condition.

• Inspect spindle and bushing wear.

• Check steering components for play or damage.

Maintenance Tips:

• Replace wheel bearings and seals when installing a new knuckle.

• Perform wheel alignment after knuckle replacement.

• Inspect spindle bushings during bearing service.

After Replacement Still Having Issues?

Replaced the steering knuckle but still having issues? Check these:

1. Was the vehicle confirmed non-ABS? – Installing on an ABS vehicle causes fitment issues

2. Were wheel bearings replaced? – Old bearings in a new knuckle can fail prematurely

3. Were spindle bushings inspected? – Worn bushings cause steering play

4. Was wheel alignment performed? – Steering geometry must be reset after knuckle replacement

5. Were all fasteners torqued correctly? – Improper torque causes loose components and safety risk

6. Is the tie rod or drag link worn? – Worn steering components cause wander

7. Is the wheel bearing preload correct? – Incorrect preload causes noise and premature failure

 Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

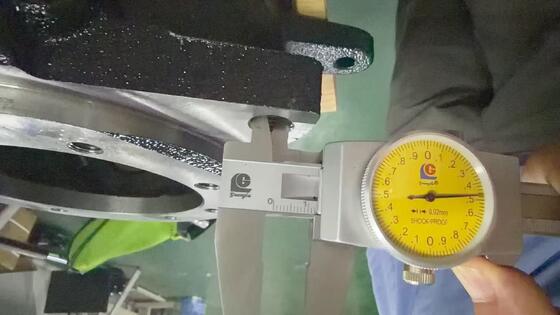

• Dimensional inspection – critical mounting points, spindle dimensions, and bearing seats are verified against design specifications

• Material verification – steel hardness and metallurgy are tested

• Surface finish inspection – surface quality and thread condition are visually verified

• Packaging inspection – each unit is sealed in protective packaging

Packaging Protection:
Each steering knuckle is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:

Related Product Recommendations

When replacing the steering knuckle, it is often recommended to inspect and consider replacing the following related components at the same time.
