Product Function Description

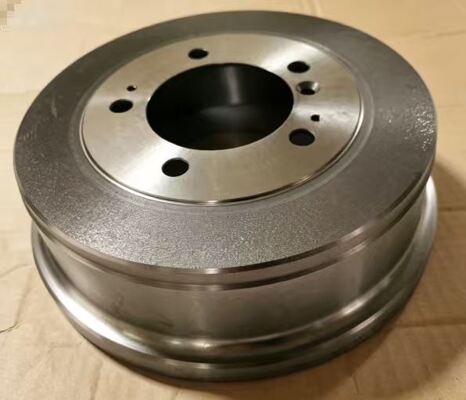

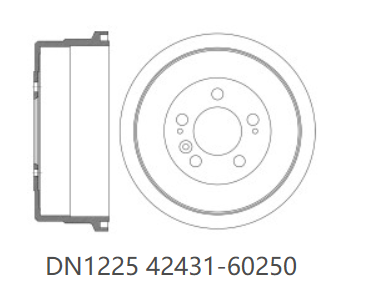

The rear brake drum sub-assembly (part number 4243160250) is a critical component of your Toyota Land Cruiser 70 Series‘ rear drum brake system. Its primary function is to house the brake shoes and provide the rotating friction surface against which the shoes press to slow and stop the vehicle. When the brake pedal is pressed, hydraulic pressure pushes the brake shoes outward into contact with the inner surface of the drum. The friction created between the shoes and the drum decelerates the wheel, allowing the vehicle to slow down and stop. For Land Cruiser 70 Series models, a properly functioning rear brake drum is essential for reliable braking performance, parking brake function, and safe stopping under all driving conditions.

Common Symptoms of a Failing Brake Drum

If you are experiencing any of the following symptoms, your rear brake drum may be failing and in need of replacement:

• Squeaking or grinding noise during braking: A persistent squeak or metallic grinding sound when braking, especially at the end of a stop – this indicates worn friction surface or glazed shoes

• Pulsating or vibrating brake pedal: The pedal pulses or vibrates during braking – this suggests drum distortion or thickness variation

• Soft or sinking brake pedal: The pedal feels spongy or slowly sinks when pressure is held – this may indicate hydraulic issues or drum wear

• Brake pull to one side: The vehicle pulls to one side during braking – this can result from uneven drum wear or a sticking wheel cylinder

• Excessive parking brake travel: The handbrake lever requires more travel than usual to engage – this indicates drum wear increasing the gap between shoes and drum

• Visible cracks or deep grooves on the drum surface: Inspection reveals cracks, deep scoring, or heat discoloration on the friction surface

If you have confirmed these symptoms through inspection, replacing the brake drum is the recommended solution.

How to Diagnose a Faulty Brake Drum

Before purchasing a replacement, perform these simple checks to confirm the brake drum is the issue:

• Visual Inspection: Remove the wheel and drum (if accessible) to inspect the inner friction surface for deep grooves, heat discoloration, cracks, or an excessive ridge at the edge. Check for brake dust accumulation and shoe contamination.

• Measurement Check: Use a brake drum gauge or caliper to measure the inner diameter at multiple points. Compare with the maximum wear specification. If the drum is beyond its service limit or has significant out-of-round, replacement is required.

• Road Test: Drive at moderate speed and apply the brakes firmly. Note any pulsation, noise, or pull. A drum-related issue typically manifests as noise or vibration specifically during braking.

• Parking Brake Test: Engage the parking brake and note the lever travel. Excessive travel or weak holding power suggests drum wear or shoe adjustment issues.

 Product Attributes

Notes:

• This brake drum is confirmed for Toyota Land Cruiser 70 Series applications .

• Always verify fitment via VIN before purchase.

Package Contents

1 x Rear Brake Drum (Part Number 4243160250). Note: Brake shoes, wheel cylinder, mounting hardware, and brake lubricant are NOT included unless stated. Please confirm compatibility with your vehicle model before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have prior experience servicing drum brakes on similar vehicles.

• You have access to a brake drum gauge, torque wrench, jack stands, brake cleaner, and brake spring tools.

• You can safely lift and support the vehicle on level ground.

We recommend professional installation if:

• You are unfamiliar with drum brake assembly and adjustment procedures.

• You lack the proper tools for brake spring removal and installation.

• You are not confident in adjusting brake shoes or bleeding the hydraulic system if the wheel cylinder is disturbed.

Note: Improper installation can lead to brake failure and safety issues. After installation, the brake shoes must be properly adjusted and the parking brake checked for correct operation. Follow vehicle-specific procedures for adjustment and bedding.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your rear brake drum with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off. You will need the following tools: brake drum gauge, torque wrench, jack stands, brake cleaner, brake spring tool, and a rubber mallet.

Step 1: Lift and secure the rear of the vehicle on jack stands. Remove the wheel.

Step 2: Release the parking brake. Remove the drum retaining screws or clips (if equipped). If the drum is seized to the axle hub, apply penetrating oil and tap it gently with a rubber mallet to loosen.

Step 3: Remove the old drum. Inspect the brake shoes, wheel cylinder, and springs for wear or leaks. Clean the backing plate and axle hub face with brake cleaner.

Step 4: Clean the hub face thoroughly with a wire brush to remove all rust and scale. Even a thin layer of rust causes runout.

Step 5: Clean the new drum with brake cleaner and a lint-free towel to remove the protective oil coating. Mount the drum on the axle hub.

Step 6: Reinstall the drum retaining screws or clips. Adjust the brake shoes through the backing plate access hole until the drum can be rotated with slight drag.

Critical Step: After installation, test the brakes at low speed before driving on the road. Check parking brake operation. Perform several moderate stops to seat the shoes against the new drum surface.

Pro Tip: When replacing the brake drum, inspect the brake shoes and wheel cylinders for wear or leaks. Always replace shoes as a set. Check drum runout with a dial indicator before final assembly.

Common Misconceptions About Brake Drums

Myth 1: Brake drums can be resurfaced indefinitely.
Fact: Brake drums have a maximum bore diameter stamped on them (297 mm for this application). Once the drum reaches this limit, it cannot be safely resurfaced and must be replaced.

Myth 2: Drum brakes do not need periodic adjustment.
Fact: Drum brakes require periodic adjustment as the shoes wear. Self-adjusting mechanisms exist but may not compensate fully, especially in vehicles with infrequent reversing. Excessive parking brake travel indicates adjustment is needed.

Myth 3: Only the worn drum needs replacement.
Fact: Brake drums on the same axle should be replaced as a pair to maintain balanced braking force. Replacing only one drum can cause brake pull and uneven braking performance.

Common Customer Concerns & Our Solutions

We understand that purchasing a rear brake drum can raise questions and concerns. Here is how we address the most common issues our customers face:

“How do I know if this brake drum fits my vehicle?” – This rear brake drum fits Toyota Land Cruiser 70 Series models. Please confirm your vehicle‘s model and year before ordering. The part number 4243160250 is the most reliable identifier.

“What if I install it and the brakes still make noise?” – Noise after installation may indicate that the brake shoes were not properly adjusted or are worn. Check shoe condition and adjustment. If noise persists, inspect the wheel cylinder and springs.

“Can I replace just the brake drum without replacing the shoes?” – It is strongly recommended to replace brake shoes at the same time. Reusing old shoes on a new drum causes uneven contact, poor braking performance, and potential noise.
