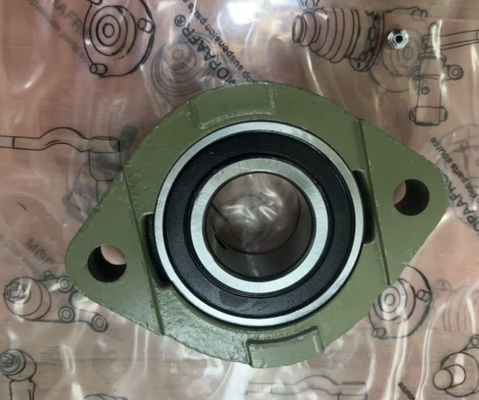

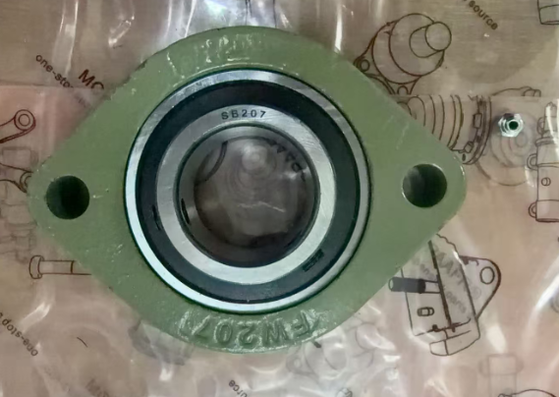

FW207 Flange Mounted Bearing Unit – 2-Bolt Diamond Flange, Light-Duty, Self-Aligning, 125x94x22mm

  • FW207 Flange Mounted Bearing Unit – 2-Bolt Diamond Flange, Light-Duty, Self-Aligning, 125x94x22mm
  • FW207 Flange Mounted Bearing Unit – 2-Bolt Diamond Flange, Light-Duty, Self-Aligning, 125x94x22mm
Place of Origin CHINA
Brand Name confidential
Certification TS16949
Model Number FW207
Document FW207.pdf
Minimum Order Quantity 10pcs
Price whole price
Packaging Details brown box
Delivery Time 5-8work days
Payment Terms L/C,D/A,D/P,T/T
Supply Ability 35000pcs-40000pcs/month
Product Details
Part Number FW207 Series FW Series (SAFW200 / SBFW200)
Product Type Diamond Flange Mounted Bearing Unit Dimensions 125mm (L) × 94mm (W) × 22mm (H)
Misalignment Angle 1°–3° Warranty 365 Days
Highlight

Flange mounted bearing unit light-duty

,

2-bolt diamond flange bearing

,

Self-aligning bearing unit 125x94x22mm
You can tick the products you need and communicate with us in the message board.
FW207
Leave a Message
Product Description

Product Overview

The FW207 belongs to the FW Series Flange Mounted Bearing Units, often appearing under complete model numbers such as SAFW200 or SBFW200. It is a light-duty, 2-bolt diamond flange mounted bearing unit with an outer spherical surface. Its dimensions are 125mm (L) × 94mm (W) × 22mm (H), and it is made of bearing steel, suitable for shaft-end support in various light-duty machinery.


Key Technical Features

① Lightweight & Compact Design
Compared with standard F207 (square housing) or FL207 (standard diamond housing), the FW series is a light-duty design, offering a more compact structure for applications with limited installation space.

② Two-Bolt Fixing
The 2-hole diamond flange design allows vertical mounting on side walls or panels with just two bolts, greatly simplifying installation and reducing downtime.

③ Self-Aligning Performance
The bearing outer ring and housing bore are spherically matched. When the machine frame slightly deforms or the shaft center becomes eccentric/deflected, it can automatically adjust its center (typically allowing 1°–3° misalignment), preventing abnormal localized loads and extending system life.

Typical Applications



Application Field Specific Equipment
Light Conveying & Logistics Light belt/chain conveyors, roller conveyor lines, e-commerce sorting lines, assembly lines
Packaging & Printing Machinery Packaging machine drive shafts, web feeding systems
Food, Beverage & Pharmaceutical Food processing equipment, beverage filling lines, pharmaceutical machinery
Agricultural & Garden Machinery Agricultural parts, garden equipment
Textile & Garment Machinery Textile equipment, garment processing lines
Fluid Ventilation & Lifting Ventilation equipment, light lifting machinery



Product Attributes

Item Specification
Model FW207
Series FW Series (SAFW200 / SBFW200)
Product Type Diamond Flange Mounted Bearing Unit
Shape Diamond (2-Bolt Flange)
Bearing Material Bearing Steel
Dimensions 125mm (L) × 94mm (W) × 22mm (H)
Mounting 2-Bolt Vertical Fixing
Misalignment Angle 1°–3°
Load Type Light-Duty
Application Industries Food Industry, Machinery Manufacturing, Agricultural Parts, Conveying Equipment, Fluid Ventilation, Mechanical Bearings, Lifting Machinery, Packaging Machinery



Purchase Advice

Note Description
❗Confirm Model FW207 differs from F207 (square) and FL207 (standard diamond). Confirm your equipment's original model.
❗Confirm Bolt Hole Spacing The 2-bolt hole spacing must match the mounting surface. Measure the old unit before ordering.
❗Confirm Shaft Diameter Ensure the shaft diameter matches the bearing bore.
✅ Application Suitable for light-duty only. For heavy-duty, choose standard or heavy-duty bearing units.
🔧 Installation Tighten both bolts evenly to avoid housing deformation.
🔧 Lubrication Regularly add grease to maintain proper lubrication and extend service life.



Storage & Shelf Life

  • Store in a cool, dry place away from direct sunlight.

  • Keep the component in its original packaging until installation to prevent contamination.

  • Avoid contact with oil, solvents, or chemicals that can degrade rubber.

  • Once installed, the component has a normal service life as per the vehicle's maintenance schedule.


After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
