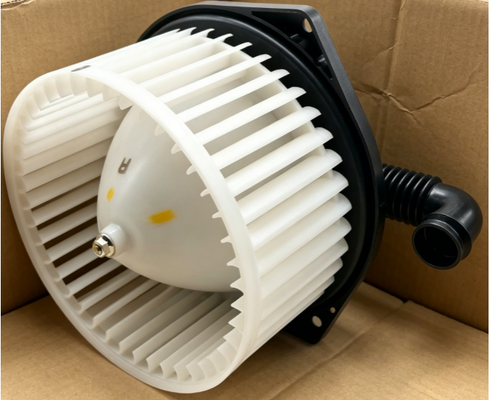

8-98139427-0 Blower Fan Motor Rotate For 891394270 Isuzu D-Max II 4JJ1-TC / 4JJ1-TCS (3.0L)

Product Function Description

The blower fan motor is a critical component of your Isuzu D-Max‘s heating, ventilation, and air conditioning (HVAC) system. Its primary function is to draw air from outside or recirculate cabin air and push it through the evaporator core, heater core, and air filter, delivering conditioned air through the dashboard vents. For Isuzu D-Max models equipped with the 3.0L 4JJ1-TC and 4JJ1-TCS diesel engines (2012-2019), a properly functioning blower motor is essential for effective cabin cooling, heating, defrosting, and overall passenger comfort. This component is designed to factory specifications, ensuring proper fit and reliable performance. This blower motor is specifically for Right-Hand Drive (RHD) vehicles.

Common Symptoms of a Failing Blower Motor

If you are experiencing any of the following symptoms, your blower motor may be failing and in need of replacement:

• No air from vents: The blower motor does not run at any speed setting – this indicates complete motor failure

• Weak airflow: Airflow is noticeably weaker than normal, even at the highest speed setting

• Squealing or chirping noise: A high-pitched squealing sound from the blower area, often worse at low speeds – this indicates worn bearings

• Grinding or rattling noise: A harsh grinding sound when the blower is running – this suggests debris in the fan cage or motor damage

• Intermittent operation: The blower works sometimes but not others – this indicates worn brushes or electrical connection issues

• Burning smell: A burning odor from the vents when the blower is running – this indicates motor overheating or electrical issues

• Blower works only on high speed: The motor runs only on the highest setting – this often indicates a faulty blower resistor, not the motor itself

If you have confirmed these symptoms through inspection, replacing the blower motor is the recommended solution.

How to Diagnose a Faulty Blower Motor

Before purchasing a replacement, perform these simple checks to confirm the blower motor is the issue:

• Fuse and Relay Check: Check the blower motor fuse and relay first – a blown fuse or faulty relay can prevent the blower from running.

• Voltage Test: With the blower switch on, check for voltage at the blower motor connector. If voltage is present but the motor does not run, the motor is faulty. If no voltage, the issue is in the circuit (fuse, relay, resistor, or switch).

• Direct Power Test: Apply 12V power directly to the blower motor (if safe to do so) to see if it runs. If it runs, the motor is good and the issue is elsewhere.

• Resistor Check: If the blower works only on high speed, the blower resistor is likely faulty, not the motor.

• Visual Inspection: Remove the blower motor and inspect the fan cage for debris, damage, or excessive play. Check the connector for corrosion or damage.

Product Attributes

Notes:

• This blower motor is confirmed for Isuzu D-Max II (TFR, TFS) 2012+ with 4JJ1-TC / 4JJ1-TCS 3.0L engines .

• Always verify fitment via VIN before purchase.

Fitment Guidance

Important: Fitment depends on the specific chassis, engine, and production date of your vehicle. Always verify using the vehicle identification number (VIN) or the existing part number before installation.

Known Compatible Models:

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Screwdriver set

• Trim removal tools

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Handle the blower motor carefully – The fan cage can be damaged by impact.

• Do not force the motor – It should slide into the housing smoothly.

• Check the blower motor resistor – If the old motor failed, inspect the resistor for damage.

• If you are unsure about any step, consult a qualified mechanic.

 Installation Tips & Common Mistakes

The Mistake When Replacing a Blower Motor:

❌ Wrong: Failing to check the blower motor resistor and cabin air filter before installing a new motor.

✅ Correct:

1. Check the blower motor resistor – A failed resistor can cause the new motor to work incorrectly or not at all.

2. Inspect the cabin air filter – A clogged filter restricts airflow and strains the blower motor.

3. Clean the HVAC housing – Debris in the housing can damage the new motor.

4. Check the connector – Ensure the electrical connector is clean and tight.

5. Test all speeds – After installation, test the blower at every speed setting.

⚠️ Remember: If the blower only works on high speed, the resistor is likely faulty, not the motor. Replace the resistor if needed.

Package Contents

1 x Blower Fan Motor (includes fan cage). Note: Blower resistor, mounting screws, and electrical connections are NOT included unless stated. Please confirm compatibility with your vehicle model, year, and drive type (RHD) before purchasing.

 Inspection & Maintenance Recommendations

The blower motor should be inspected during routine HVAC maintenance. Signs of weak airflow or unusual noises indicate the need for inspection or replacement.

Common indicators that the blower motor may need replacement:

Inspection Checklist:

• Check the cabin air filter for clogging.

• Test the blower at all speed settings.

• Inspect the electrical connector for corrosion.

• Check the blower motor resistor if speeds are inconsistent.

Maintenance Tips:

• Replace the cabin air filter at recommended intervals.

• Keep the HVAC housing clean and free of debris.

• Address unusual noises promptly to avoid complete motor failure.

After Replacement Still Having Issues?

Replaced the blower motor but still having issues? Check these:

1. Is the blower motor resistor working? – A failed resistor prevents proper speed control

2. Is the cabin air filter clogged? – A blocked filter restricts airflow and strains the motor

3. Is the connector fully engaged? – Loose connection causes intermittent operation

4. Is the fuse blown? – Check the HVAC blower fuse

5. Is the HVAC control panel working? – Faulty controls prevent motor activation

6. Is the fan cage damaged? – A damaged cage causes noise and vibration

7. Is there debris in the HVAC housing? – Debris can block airflow or damage the motor

 Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical mounting dimensions and fan diameter are verified against design specifications

• Electrical test – motor operation and current draw are tested

• Rotation test – clockwise rotation and smooth operation are confirmed

• Surface finish inspection – surface quality is visually verified

Packaging Protection:
Each blower motor is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:
