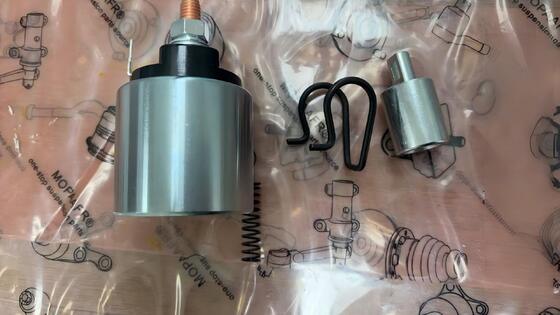

23343-8H300 SWITCH ASSY-MAGNETIC For Nissan X-Trail Teana 233438H300

Product Function Description

The starter magnetic switch, also known as the starter solenoid, is a critical component of your Nissan vehicle‘s starting system. This electromagnetic switch serves two essential functions: it completes the high-current electrical circuit between the battery and the starter motor, and it mechanically engages the starter drive gear with the engine’s flywheel to crank the engine. For Nissan Teana J31and X-Trail T30 models, a properly functioning magnetic switch is essential for reliable engine starting, consistent cranking performance, and dependable vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable performance.

Common Symptoms of a Failing Magnetic Switch

If you are experiencing any of the following symptoms, your magnetic switch may be failing and in need of replacement:

• Single loud click but no cranking: A distinct click is heard when turning the key, but the engine does not turn over – this indicates the switch is engaging but not completing the main circuit

• No sound at all: No click or cranking sound when turning the key – this suggests the switch is not receiving power or has completely failed

• Intermittent starting: The vehicle starts sometimes but not others – this indicates worn internal contacts within the switch

• Starter spins but engine does not crank: The motor runs but the drive gear does not engage the flywheel – this suggests a mechanical failure within the switch

• Grinding noise during starting: A grinding sound when attempting to start – this may indicate the switch is not properly engaging the drive gear

• Burning smell or smoke: Electrical burning odor from the starter area – this indicates the switch contacts are arcing or overheating

If you have confirmed these symptoms through inspection, replacing the magnetic switch is the recommended solution.

How to Diagnose a Faulty Magnetic Switch

Before purchasing a replacement, perform these simple checks to confirm the magnetic switch is the issue:

• Battery Test: Check the battery voltage – a healthy battery should read 12.6V at rest. If voltage drops significantly during cranking, the battery may be the issue, not the switch.

• Voltage Check at Switch: Measure voltage at the switch terminal when turning the key. If voltage is present but the starter does not crank, the switch may be faulty.

• Listen for Click: A single loud click without cranking typically indicates a faulty switch or insufficient power. No click at all suggests no power reaching the switch.

• Visual Inspection: Check the switch wiring and connections for corrosion, looseness, or damage. Inspect the switch for signs of overheating or burning.

• Bench Test: If the starter is removed, the magnetic switch can be bench-tested to confirm proper operation.

 Product Attributes

Fitment Guidance

Important: Fitment depends on the specific chassis, engine, and production date of your vehicle. Always verify using the vehicle identification number (VIN) or the existing part number before installation.

Known Compatible Models:

Important Fitment Notes:

• This magnetic switch is confirmed for Nissan X-Trail T30 with QR20DE and QR25DE engines .

• This is a starter-mounted solenoid switch, not a standalone relay.

• Always confirm compatibility using your VIN before purchasing.

 Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Screwdriver set

• Multimeter (for testing)

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Always disconnect the battery before working on the starter to prevent electrical shorts.

• Note the wiring positions before disconnecting to ensure correct reassembly.

• Check the starter motor for other issues while the switch is removed.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The Mistake When Replacing a Starter Magnetic Switch:

❌ Wrong: Failing to note the wiring connections before removal, or not checking the starter motor for other faults.

✅ Correct:

1. Note wiring positions before removal – The control wire and main power cable must be reconnected correctly.

2. Check the starter motor – While the switch is removed, inspect the starter for worn brushes, damaged pinion, or bearing noise.

3. Clean the mounting surface – Ensure good electrical contact between the switch and starter body.

4. Test before reassembly – Verify the switch engages the pinion properly before fully installing.

5. Check the ignition switch – If the new switch does not activate, test the ignition signal wire.

⚠️ Remember: If the starter motor itself is worn or damaged, replacing only the magnetic switch will not restore reliable starting. Inspect the entire starter assembly.

Features & Functional Notes

Performance Notes:

• The magnetic switch is critical for reliable engine starting.

• A failing switch can cause single-click-no-crank symptoms, intermittent starting, or complete failure.

• The switch should be tested for proper engagement and contact operation during starter service.

Package Contents

1 x Starter Magnetic Switch. Note: Starter motor, mounting bolts, and electrical connections are NOT included unless stated. Please confirm compatibility with your vehicle model and engine before purchasing.

Common Customer Concerns & Our Solutions

We understand that purchasing a magnetic switch can raise questions and concerns. Here is how we address the most common issues our customers face:

“What if I install it and the starter still doesn‘t work?” – If the starter does not work after installation, check the battery voltage, ground connections, and starter relay. A weak battery or poor connection can prevent proper starter operation. Also inspect the starter motor brushes and drive gear for wear.

“Can I replace just the magnetic switch without replacing the whole starter?” – Yes, the magnetic switch is a separate component that can be replaced independently. This is a cost-effective repair compared to replacing the entire starter assembly.

“What if I need the part urgently and can‘t wait for standard shipping?” – We offer expedited shipping options and can prioritize your order when you need it fast.

After-Sales Service & Warranty

We stand behind this product with our quality assurance. If you have any fitment or quality concerns, just contact us—we'll get back to you within 24 hours.

Related Product Recommendations

When replacing the starter magnetic switch, it is often recommended to inspect and consider replacing the following related components at the same time.

Starter Motor Assembly——If starter is worn, complete replacement may be more cost-effective

Battery——A weak battery strains the starter system; test and replace if necessary

Ignition Switch——Sends signal to starter; replace if worn or faulty

Starter Relay——Controls starter activation; inspect if starting issues persist
