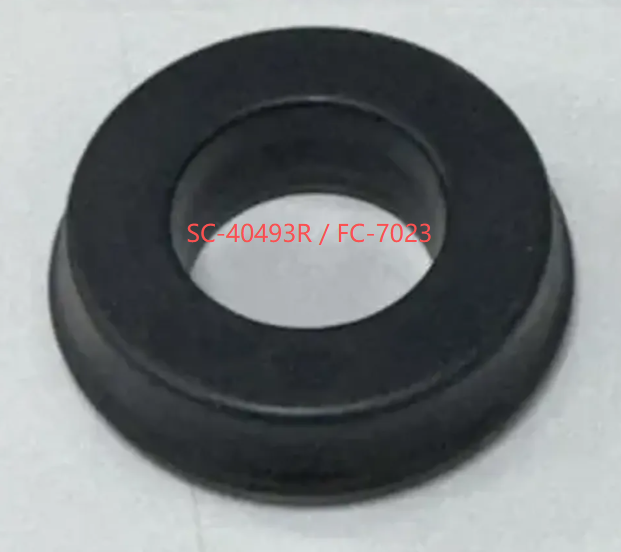

SC-40493R / FC-7023 Brake Cup Seal – EPDM Hydraulic Wheel Cylinder Seal

  • SC-40493R / FC-7023 Brake Cup Seal – EPDM Hydraulic Wheel Cylinder Seal
  • SC-40493R / FC-7023 Brake Cup Seal – EPDM Hydraulic Wheel Cylinder Seal
Place of Origin CHINA
Brand Name confidential
Certification TS16949
Model Number SC-40493R / FC-7023
Document SC-40493R FC-702.pdf
Minimum Order Quantity 1000pcs
Price whole price
Packaging Details brown box
Delivery Time 5-8work days
Payment Terms L/C,D/A,D/P,T/T
Supply Ability 35000pcs-40000pcs/month
Product Details
Part Number SC-40493R / FC-7023 Size Specification 1-3/16" (1.1875 Inch)
Material EPDM (Ethylene Propylene Diene Monomer) Application Automotive Braking System
Supply Capability In-stock Supply Packaging Carton Packaging
Highlight

EPDM hydraulic wheel cylinder seal

,

brake cup seal replacement

,

wheel cylinder seal with warranty
You can tick the products you need and communicate with us in the message board.
SC-40493R / FC-7023
Leave a Message
Product Description

Product Description

This product is a hydraulic wheel cylinder rubber EPDM brake cup seal, manufactured from high-elasticity EPDM material, offering excellent brake fluid resistance, rebound resilience, and high-temperature aging resistance. It is compatible with brake wheel cylinders across multiple vehicle models, supports customization for different OEM numbers, and can also be used as a piston seal or rod seal.

We specialize in manufacturing oil seals, valve seals, hydraulic seals, power steering seals, and rubber-related products. Brake wheel cylinder cup seals and seal rings are available from stock.


Product Specification Summary



Item Content
Product Name Automotive Cup Seal / Brake Cup Seal
Specification SC-40493R
Size 1-3/16" (1.1875 inch)
Color Black
Material EPDM (Ethylene Propylene Diene Monomer)
Type Seal
Application Automotive braking system
Packaging Carton packaging
Minimum Order Quantity 1 pc / 1000 pcs
Supply Method In-stock supply, MOQ 300-500 per model



Why Are Brake Cup Seals Mostly Made of EPDM, Not NBR?

Automotive brake systems use synthetic brake fluid (such as DOT 3, DOT 4), which is typically Glycol-based brake fluids or silicone-based, not mineral oil. EPDM offers excellent chemical resistance to Glycol-based brake fluids and has good rebound resilience, making it the dominant material for brake cup seals.

NBR material, while not dissolving immediately in Glycol-based brake fluid, is not resistant to high temperatures and aging, and can easily fail under complex braking conditions—potentially causing brake fluid leakage due to cup seal swelling or cracking.


International Standard / Industry Model Vehicle Fitment and Installation Position



Size Type Vehicles Position
13/16" Rear brake cup seal Toyota 2Y models Rear wheel cylinder
1-1/8" Large bore brake cup seal Isuzu NHR, NKR models Front wheel cylinder
1-3/16" Mikado large bore cup seal Isuzu NPR, Mikado models Front/Rear wheel cylinder


 Industry Standard Codes & Cross-Brand Reference Table


Code Size Seiken OEM No. Aftermarket No. Fitment Position
SC-47622R 13/16" 010-47622 90947-01127 (Toyota) — Toyota 2Y, Hiace, etc. Rear wheel cylinder
SC-80353R 1-1/8" 010-80353 8-94119-532-0 (Isuzu)
8-94119-958-1		 FC-3036 (Frenkit)
WC-31018 / WC-31038		 Isuzu NHR, NKR, 100P, light trucks & buses; Mazda Titan Front wheel cylinder
SC-40493R 1-3/16" 010-40493 8-97103-027-3 (Isuzu)
8-97103-600-0		 FC-7023 (cross-ref) Isuzu NPR, Mikado, ELF NKR66/71, Hino, Toyota Dyna/Dutro 125HT Front/Rear wheel cylinder


Supplementary Note: Cross-Brand Application of SC-40493R

SC-40493R (1-3/16") is primarily designed for "Isuzu NPR Mikado large bore." However, in the truck sector, Isuzu, Hino, Toyota Dyna, and Mitsubishi share certain brake wheel cylinder assemblies from large aftermarket factories at specific tonnage ratings. This cup seal is therefore also commonly used for brake wheel cylinder repairs on Toyota Dyna 125HT / 130HT trucks.


Complete Wheel Cylinder Repair Kit Number Reference Table

Code Size SK Code OEM Kit No. Aftermarket Code Contents
SC-47622R 13/16" SK-43981 / SK-43951 04474-20030 (Toyota)
04474-35030		 D1526 (Autofren)
RK-43951		 Cup seals ×2, dust boots ×2, spring ×1 (1 wheel)
SC-80353R 1-1/8" SK-80351 / SK-80021 8-94119-533-0 (Isuzu)
8-97022-491-0		 D1664 (Autofren)
FC-3036 (seal ring kit)		 Large bore cup seals ×2, dust boots ×2 (front axle one side)
SC-40493R 1-3/16" SK-40491 / SK-80201 8-97103-028-0 (Isuzu)
8-94318-422-0		 D1723 (international code)
990-0969 (Western CV classification)		 Mikado large bore cup seals ×2, dust boots ×2 (light truck single-wheel large bore)

Purchase & Installation Notes

1. Single/Dual Wheel Packaging for Repair Kits

When purchasing repair kits, note that truck series are typically packaged as single wheel (1 wheel / Axle Side). If the customer needs to repair a complete front axle (left front + right front), the quantity of that SK number on the order must be multiplied by 2.

2. Dust Boot (Boot) Compatibility

When repairing truck brake wheel cylinders, if only the cup seal is replaced without replacing the dust boot, external mud and water can enter. Since EPDM material is highly susceptible to abrasive wear from mud and sand, the new cup seal will quickly leak again. Therefore, it is recommended to replace the dust boot at the same time as the cup seal.


Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

  • Dimensional inspection – critical dimensions and sealing lip geometry are verified against design specifications

  • Material verification – EPDM compound is tested for hardness, elasticity, and chemical resistance

  • Surface finish inspection – surface quality is visually verified

  • Packaging inspection – each unit is sealed in protective packaging

Packaging Protection:
Each brake cup seal is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:



Commitment Description
Pre-sale support Fitment verification assistance – we help confirm compatibility before you order
Timely dispatch Orders are processed and shipped within the stated handling time
Secure packaging Protective packaging to prevent transit damage
Responsive support Customer service inquiries are typically addressed within 24 hours
Fair resolution Any issues with your order will be reviewed and resolved promptly


Contact Us

For in-stock pricing or model matching services on brake cup seals, wheel cylinder repair kits, and hydraulic seals, please feel free to contact us.

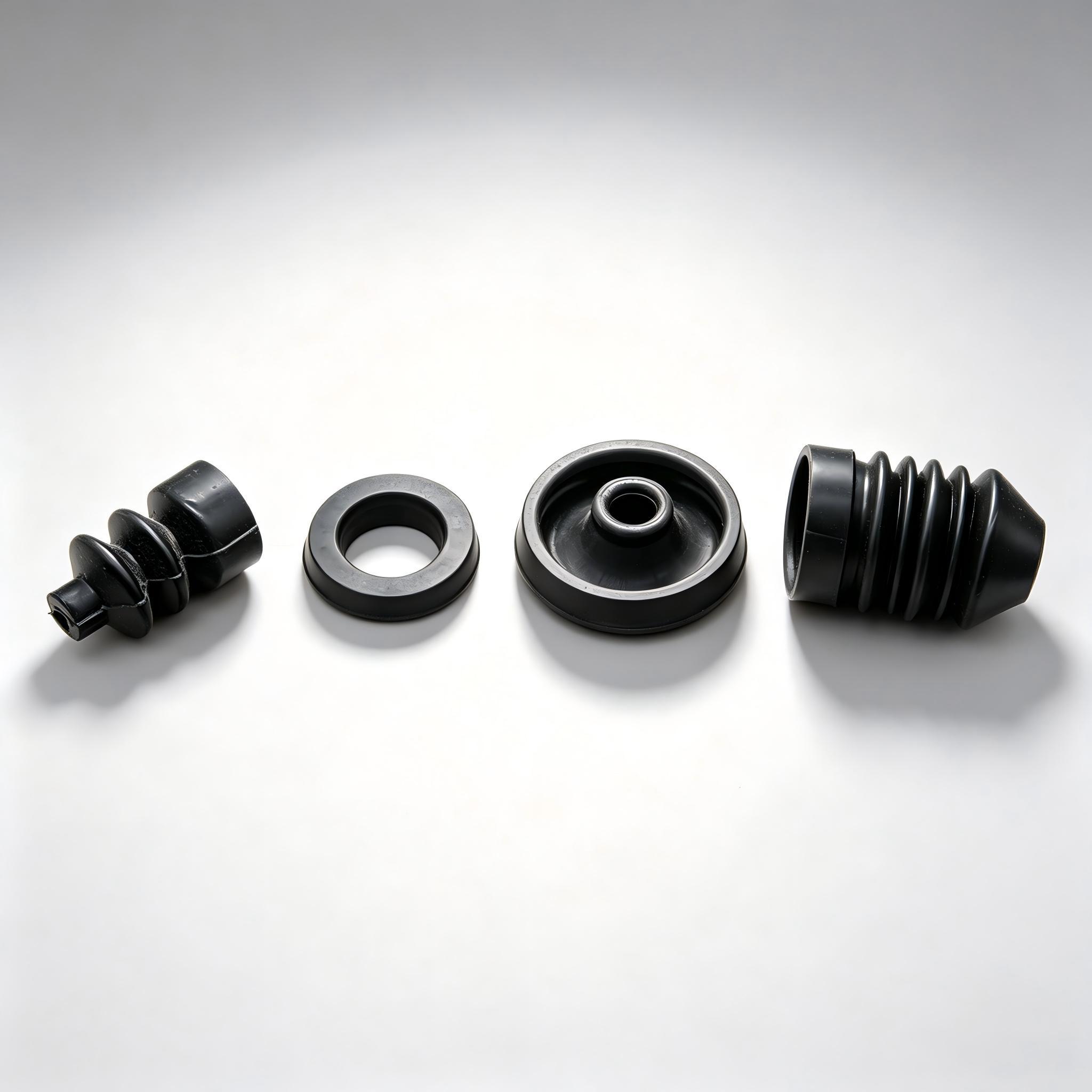

Product Line: Oil seals, valve seals, hydraulic seals, power steering seals, rubber products

Customization: OEM number customization supported. Drawings and samples welcome for inquiry.
