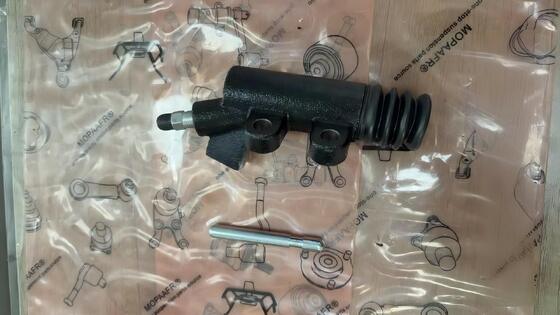

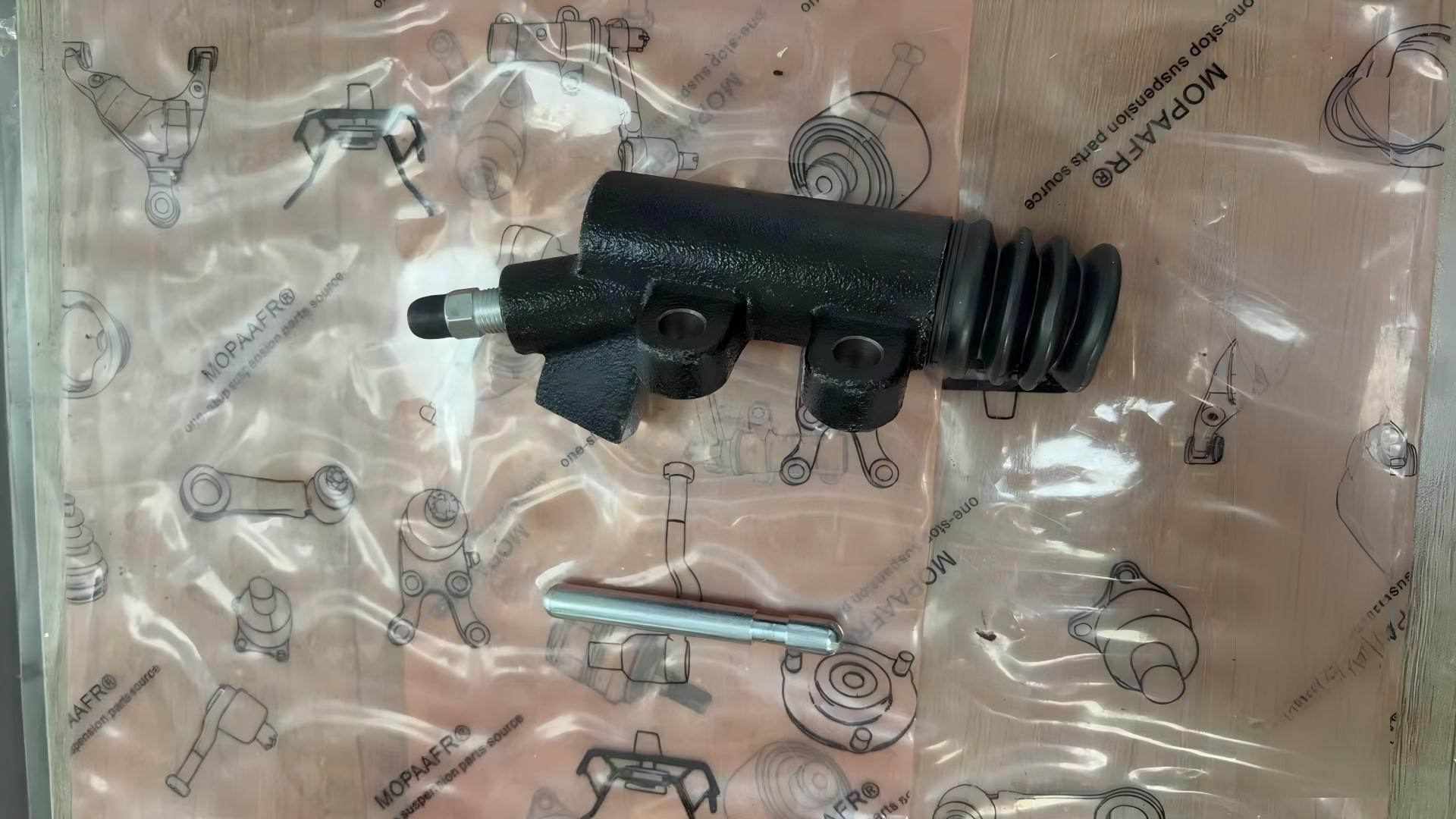

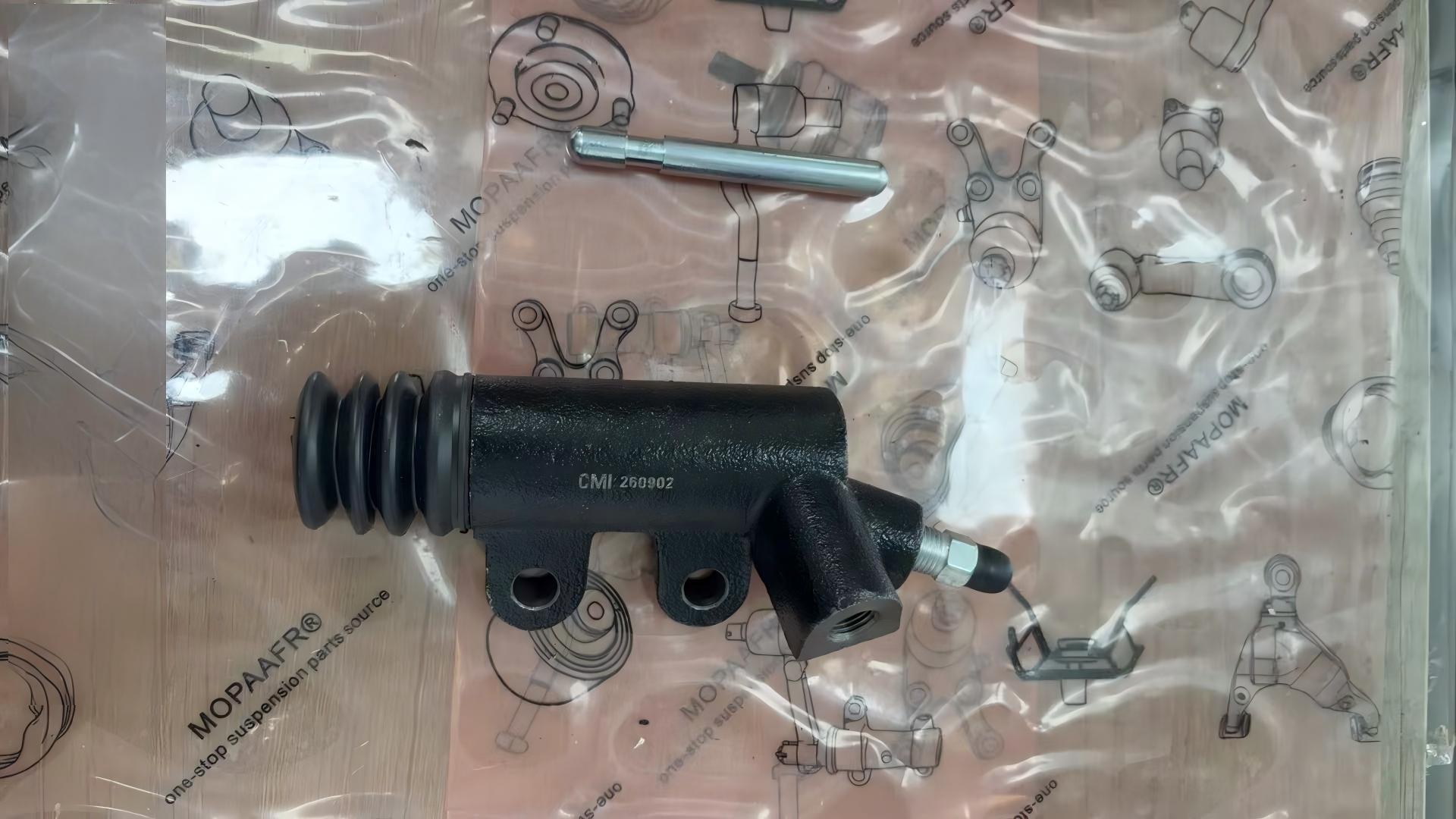

31470-26120 CLUTCH RELEASE CYLINDER For TOYOTA HIACE TRH2, KDH2 3147026120

Product Function Description

The clutch release cylinder is a critical component of your Toyota Hiace's hydraulic clutch system. This hydraulic actuator converts fluid pressure from the clutch master cylinder into mechanical movement, which pushes the clutch fork to disengage the clutch when you press the pedal. For Toyota Hiace (H200/TRH200/KDH200 series) and Commuter models, a properly functioning clutch release cylinder is essential for smooth gear changes, consistent clutch pedal feel, and reliable clutch operation. This component is designed to factory specifications, ensuring proper fit and reliable hydraulic performance.

Common Symptoms of a Failing Clutch Release Cylinder

If you are experiencing any of the following symptoms, your clutch release cylinder may be failing and in need of replacement:

• Spongy or soft clutch pedal: The pedal feels mushy and lacks firm resistance – this indicates air in the system or internal seal failure

• Difficulty shifting gears: Gears grind or refuse to engage smoothly – this suggests the clutch is not fully disengaging

• Clutch fluid leaks: Visible fluid on the slave cylinder, bell housing, or under the vehicle – this indicates worn seals

• Clutch pedal slowly sinks to the floor: The pedal drops when pressure is held – this suggests internal leakage

• Low clutch fluid level: Unexplained fluid loss without visible external leaks elsewhere – this may indicate internal seal failure

If you have confirmed these symptoms through inspection, replacing the clutch release cylinder is the recommended solution.

 Product Attributes

Fitment Guidance

Installation Guidelines

Tools typically required:

• Socket wrench set (metric)

• Flare nut wrench (for hydraulic line)

• Brake/clutch fluid (DOT 3 or DOT 4 as specified)

• Brake bleeding equipment

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• Do not reuse drained clutch fluid. Always use fresh fluid.

• Use the clutch/brake fluid grade specified in the owner's manual (DOT 3 or DOT 4).

• Bleed the clutch system properly to ensure correct pedal feel and clutch operation.

• If the system is difficult to bleed, try loosening the bleeder screw until fluid drips, then use a pry bar to create slight clearance between the push rod and clutch fork before pumping the pedal.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The #1 Mistake When Replacing a Clutch Slave Cylinder:

❌ Wrong: Failing to bleed the clutch system properly after installation.

✅ Correct:

1. Always bleed the clutch system – Air in the hydraulic system can cause a spongy pedal and incomplete clutch disengagement.

2. Use a flare nut wrench – Prevents rounding of hydraulic line fittings.

3. Use fresh fluid – Old fluid may contain moisture that can damage seals.

4. Check the push rod – Ensure the push rod is correctly seated in the clutch fork.

5. Check for leaks – After bleeding, inspect all connections for fluid seepage.

Bleeding Tip: If the system is difficult to bleed, loosen the bleeder screw until fluid drips, then use a pry bar to create slight clearance between the push rod and clutch fork before pumping the pedal.

⚠️ Remember: A properly bled clutch system results in a firm, consistent pedal feel. If the pedal feels spongy or goes to the floor, there may still be air in the system.

Package Contents

1 x Clutch Release Cylinder Assembly. Note: Mounting bolts and clutch fluid are NOT included unless stated. Please confirm compatibility with your vehicle model and year before purchasing.

After-Sales Service & Warranty

This product is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
