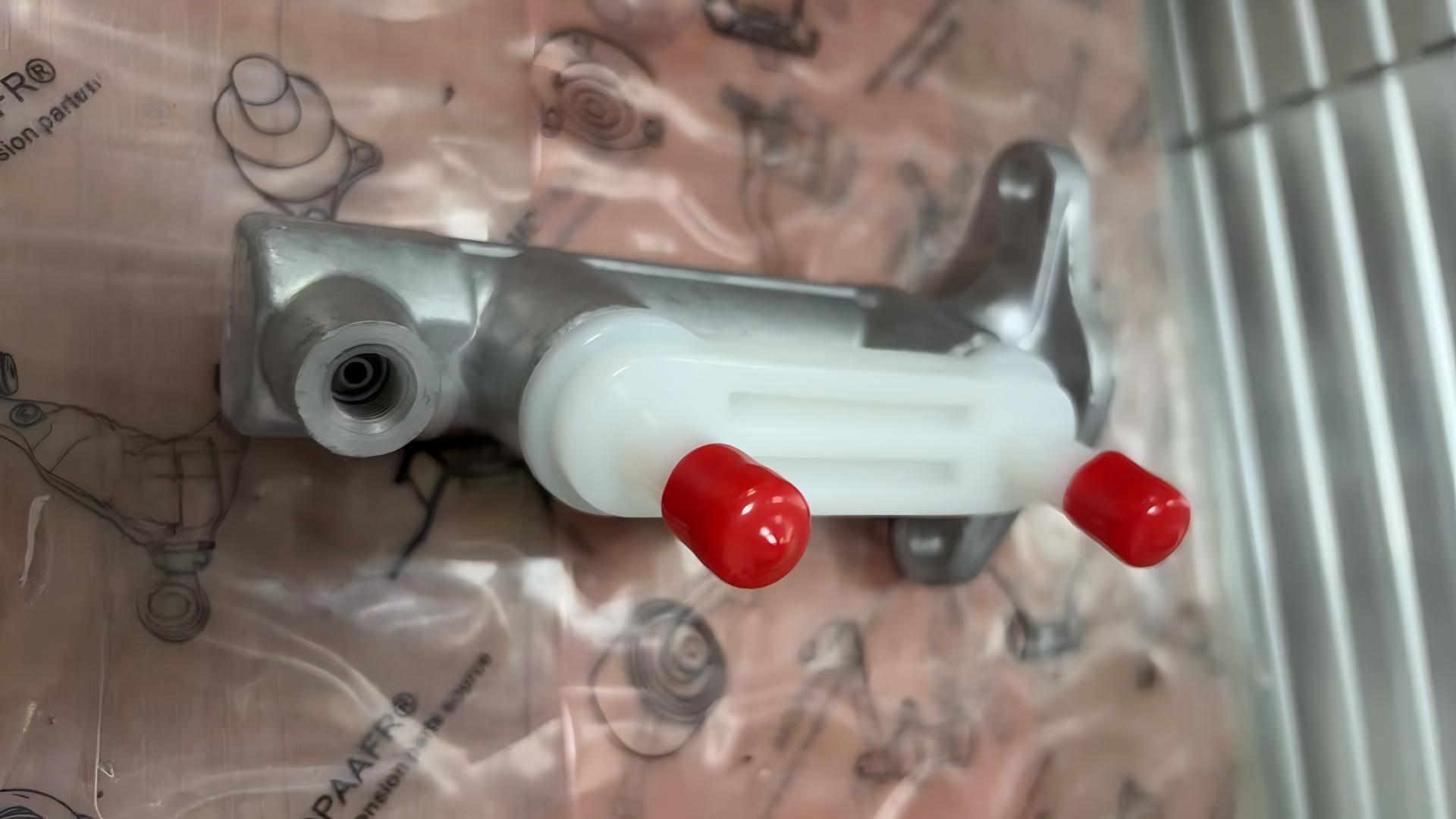

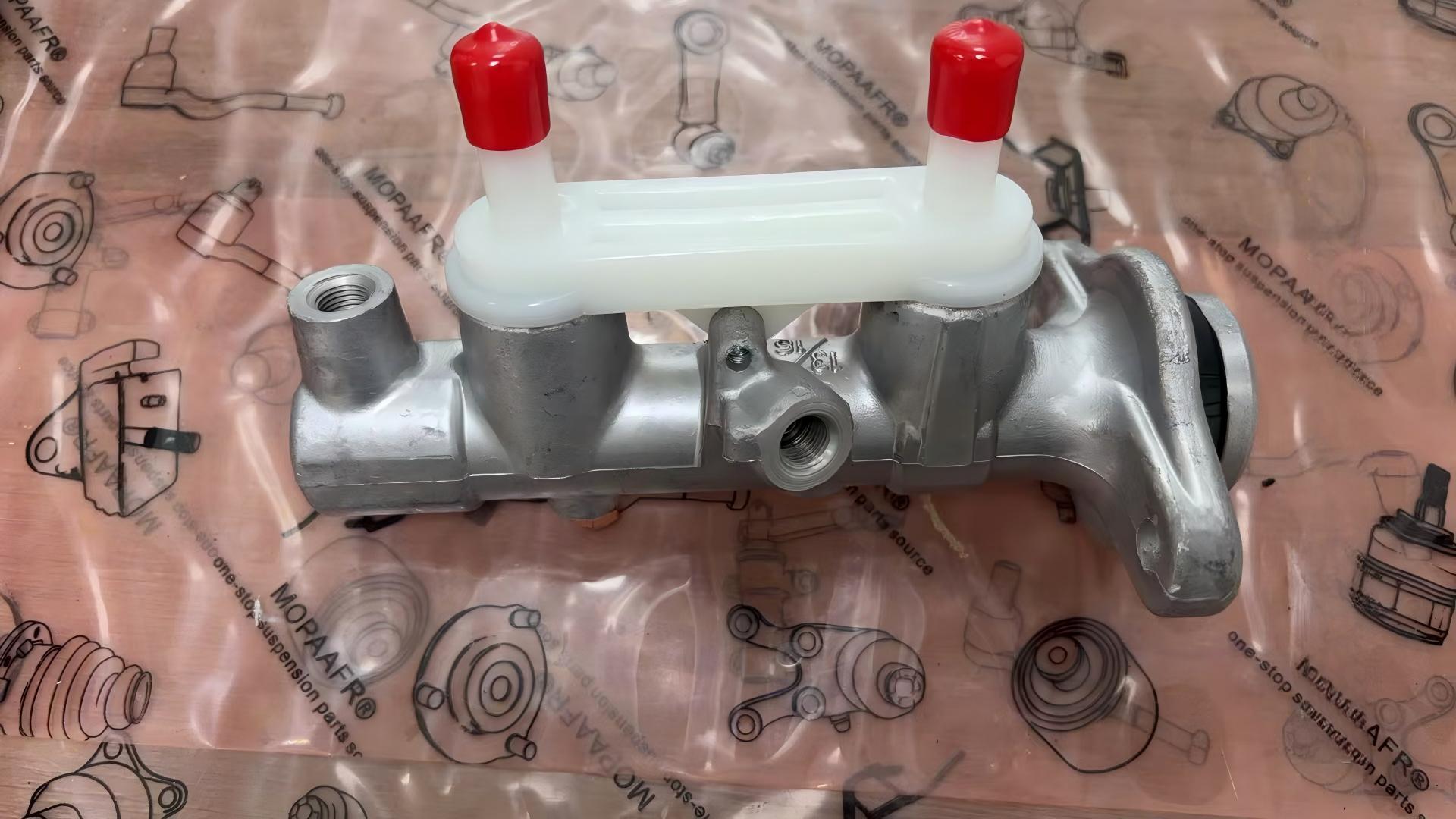

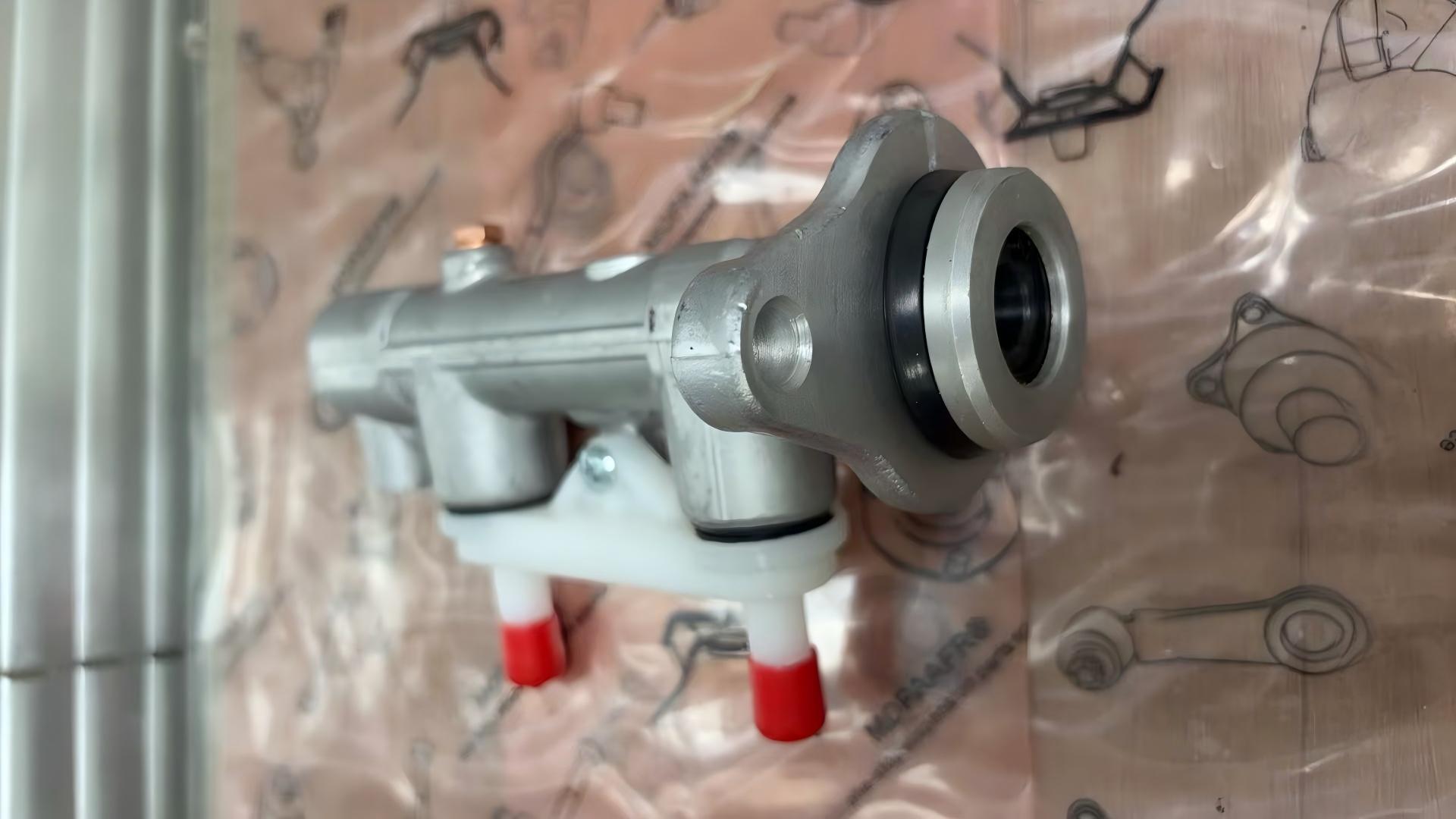

47201-44041 Brake Master Cylinder Fit Toyota Picnic Ipsum CXM10,SXM10 4720144041

Product Function Description

The brake master cylinder is a critical component of your Toyota Picnic‘s braking system. This hydraulic device converts the mechanical force of the brake pedal into hydraulic pressure, distributing brake fluid through the brake lines to activate the brakes at each wheel. For the Toyota Picnic (SXM10/CXM10, 1996-2001), a properly functioning brake master cylinder is essential for consistent braking performance, reliable stopping power, and safe vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable brake system performance. The part number 47201-44041 is confirmed as an OEM-grade replacement for this application.

Common Symptoms of a Failing Brake Master Cylinder

If you are experiencing any of the following symptoms, your brake master cylinder may be failing and in need of replacement:

• Spongy or soft brake pedal: The pedal feels mushy and travels too far before engaging – this indicates internal seal failure or fluid bypass

• Brake pedal slowly sinks to the floor: The pedal continues to drop while holding pressure at a stop – this suggests internal leakage

• Brake fluid leaks: Visible fluid under the vehicle or around the master cylinder area – this indicates external seal failure

• Reduced braking power: The vehicle takes longer to stop than normal – this suggests insufficient hydraulic pressure

• Brake warning light: The dashboard warning light illuminates

• Discolored brake fluid: Dark or contaminated fluid in the reservoir – this indicates moisture or particulate contamination

If you have confirmed these symptoms through inspection, replacing the brake master cylinder is the recommended solution.

When This Part Matters Most

This brake master cylinder is particularly important for vehicles that are:

• Used for daily commuting with stop-and-go traffic

• High-mileage vehicles where original components are reaching the end of their service life

• Vehicles showing early signs of brake pedal issues or fluid loss

• Toyota Picnic models where braking performance is critical for safety

In these conditions, the brake master cylinder works continuously, making regular inspection and timely replacement essential for reliable braking performance.

Product Attributes

Installation Guidelines

Tools typically required:

• Flare nut wrench (for brake lines)

• Socket wrench set (metric)

• Torque wrench

• Brake bleeding equipment

• Brake fluid (DOT 3 as specified)

• Safety gloves and eye protection

General installation reference (always follow vehicle-specific service manual):

Important:

• This master cylinder is supplied with reservoir.

• Do not reuse drained brake fluid. Always use fresh fluid.

• Use DOT 3 brake fluid as specified.

• If you are unsure about any step, consult a qualified mechanic.

Installation Tips & Common Mistakes

The Mistake When Replacing a Brake Master Cylinder:

❌ Wrong: Failing to bench-bleed the master cylinder before installation, or not bleeding the entire system afterward.

✅ Correct:

1. Always bench-bleed the new master cylinder before installation – This removes trapped air from the cylinder itself.

2. Use a flare nut wrench – Prevents rounding of brake line fittings.

3. Bleed the entire brake system after installation – Follow the correct bleeding sequence (typically furthest wheel first).

4. Use fresh DOT 3 brake fluid – Never reuse old fluid as it may contain moisture and contaminants.

5. Check that the reservoir is included – This part is supplied with reservoir.

⚠️ Remember: If the master cylinder is installed without proper bleeding, the brake pedal will feel spongy or go to the floor. A properly bled system results in a firm, consistent pedal feel.

 Industry Knowledge

Toyota Picnic / Ipsum Brake System:

The Toyota Picnic (also known as Ipsum in some markets) is an MPV produced from 1996 to 2001 on the SXM10 platform. The 47201-44041 master cylinder is the factory-specified unit for models with 2.0L and 2.2L diesel engines .

Key Information:

• Part numbers: 47201-44041

• Bore size: 23.81 mm (15/16 inch)

• Configuration: With reservoir

• Engine compatibility: 2.0L, 2.2L diesel

Why This Master Cylinder is Important:

• The master cylinder is the heart of the hydraulic brake system

• A failing master cylinder can lead to brake failure if not addressed

Package Contents

1 x Brake Master Cylinder Assembly. Note: Mounting hardware and brake fluid are NOT included unless stated. Please confirm compatibility with your vehicle model and year before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have intermediate mechanical skills and the required tools (flare nut wrenches, torque wrench, brake bleeder kit).

• You are comfortable working with brake system components and hydraulic lines.

• The job takes approximately 1-2 hours.

We recommend professional installation if:

• You are not comfortable with brake system repairs.

• You do not have the proper tools for brake bleeding and line disconnection.

• You are not confident in your mechanical skills.

Note: Improper installation can lead to brake failure, safety issues, and warranty concerns. After installation, the entire brake system must be properly bled to remove air. Bench-bleeding the master cylinder before installation is required to ensure proper operation.

Inspection & Maintenance Recommendations

The brake master cylinder is a critical safety component that should be inspected regularly. Any signs of leakage or abnormal pedal feel require immediate attention.

Common indicators that the master cylinder may need replacement:

Inspection Checklist:

• Check the master cylinder for fluid leakage at the cylinder-to-booster joint and at pipe connections.

• Check brake fluid level and condition (dark, contaminated fluid indicates wear).

• Check for a sinking or spongy brake pedal.

• Check brake fluid color—contaminated fluid should be replaced.

Maintenance Tips:

• Replace brake fluid every 2 years or 40,000 km to prevent moisture contamination.

• Use DOT 3 brake fluid as specified.

• Keeping the brake fluid clean and at the right level is key to master cylinder longevity.

After Replacement Still Having Issues?

Replaced the master cylinder but still having brake issues? Check these:

1. Is there air in the brake system? – Bleed the entire system again in the correct sequence

2. Was the master cylinder bench-bled? – If not, air may be trapped inside the cylinder

3. Are the brake lines properly tightened? – Loose connections can allow air to enter

4. Is the brake booster working? – A failed booster can cause a hard pedal, not a spongy one

5. Are the brake hoses in good condition? – Swollen or damaged hoses can cause pedal issues

6. Is there a leak elsewhere in the system? – Check wheel cylinders and calipers for leaks

 Related Product Recommendations

When replacing the brake master cylinder, it is often recommended to inspect and consider replacing the following related components at the same time.

Brake Lines / Hoses – Inspect brake lines and hoses for wear, corrosion, or damage while replacing the master cylinder.

Brake Calipers – Inspect the front calipers for leaks, sticking pistons, or damaged dust boots.

Brake Pads – Inspect brake pad thickness. If pads are worn thin, replace them.

Brake Rotors / Discs – Inspect rotors for scoring, warping, or uneven wear. Replace if worn beyond specifications.

Brake Drum and Shoes (Rear) – If the vehicle has rear drum brakes, inspect the drums for scoring and the shoes for wear or contamination.
