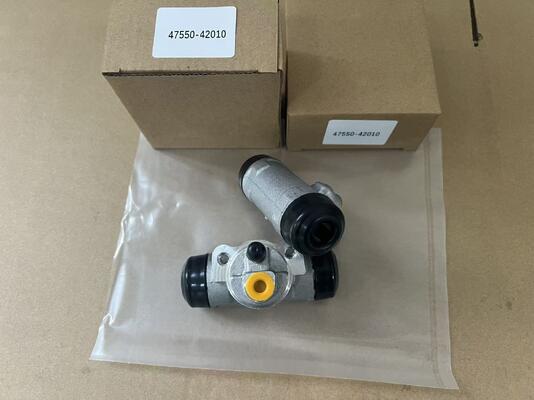

47550-42010 Wheel Brake Cylinder for 4755042010 TOYOTA Rav 4 2.0L I4

Product Function Description

The wheel brake cylinder is a critical component of your Toyota RAV4‘s rear drum brake system. This hydraulic device converts the pressure of brake fluid into mechanical movement of the brake shoes. When you press the brake pedal, hydraulic fluid is forced into the wheel cylinder, causing the pistons on either side to expand outward, which presses the brake shoes against the brake drum to slow the vehicle . For the first-generation Toyota RAV4 I (SXA10/SXA11, 1994-2000), a properly functioning wheel cylinder is essential for consistent braking performance, reliable stopping power, and safe vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable brake system performance.

DIY Diagnosis Guide

How to Tell If Your Wheel Cylinder Needs Replacement:

Look for these common signs:

1. Brake fluid leaks – Fluid visible on the inside of the brake drum or around the wheel cylinder

2. Spongy or soft brake pedal – Pedal feels soft or goes down further than normal

3. Brake warning light – Warning light illuminated on the dashboard

4. Uneven braking – Vehicle pulls to one side during braking

5. Contaminated brake shoes – Brake fluid leaking onto the brake shoes reduces friction

6. Low brake fluid level – Reservoir level drops without visible external leaks

💡 Quick inspection: With the wheel removed and brake drum off, inspect the wheel cylinder for signs of fluid leakage around the rubber boots. If the boots are wet or brake shoes are contaminated with fluid, the wheel cylinder should be replaced.

Product Attributes

 Fitment Guidance

Important: Fitment depends on the specific chassis, engine, and production date of your vehicle. Always verify using the vehicle identification number (VIN) or the existing part number before installation.

Known Compatible Models:

Important Fitment Notes:

• This wheel cylinder is for the rear drum brake system .

• Confirmed for Toyota RAV4 I (XA10) from 1994 to 2000 .

• The part fits the rear left or right side .

• Always confirm compatibility using your VIN before purchasing.

Why Choose This Wheel Brake Cylinder?

Restores Braking Performance – A failing wheel cylinder reduces braking effectiveness and compromises vehicle safety. This new cylinder restores proper hydraulic pressure for reliable stopping power .

Direct Replacement – Precision-engineered to match the original cylinder specifications. Direct bolt-on replacement – no modifications required. This part number is confirmed to replace OE 47550-42010 .

Proven Compatibility – This cylinder is confirmed compatible with Toyota RAV4 I (SXA10/SXA11, 1994-2000) models . The part is NOT side-specific and fits both rear positions .

Quality Construction – Manufactured with cast iron construction, 17.5mm piston diameter, and M10 x 1.0 inlet threads .

Essential for Vehicle Safety – The wheel cylinder is a critical safety component that directly affects stopping ability and vehicle control.

Package Contents

1 x Wheel Brake Cylinder. Note: Please confirm compatibility with your vehicle model and year before purchasing.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your wheel cylinder with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off and the parking brake released .

Step 1: Safely raise the vehicle and support it with jack stands. Remove the rear wheel and brake drum .

Step 2: Place a container under the hub and spray the brake system with brake cleaner. Remove the brake shoes if replacing them .

Step 3: Spray the brake line connector, bleeder valve, and mounting bolts with penetrating oil. Remove the bleeder valve and brake line from the old cylinder .

Step 4: Remove the mounting bolts securing the wheel cylinder to the backing plate. Remove the old cylinder.

Step 5: Clean the mounting surface thoroughly. Install the new wheel cylinder and tighten the mounting bolts to factory torque specifications.

Step 6: Reconnect the brake line and bleeder valve. Reinstall the brake shoes and drum.

Critical Step: Bleed the brake system to remove air. Test brake pedal feel – it should feel firm and consistent. Check for fluid leaks around the cylinder connections.

Pro Tip: When replacing the wheel cylinder, it is recommended to inspect the brake shoes and replace them if contaminated with brake fluid. Always use fresh brake fluid and properly bleed the system .

Common Misconceptions About Wheel Cylinders

Myth 1: “If it‘s not leaking fluid, the wheel cylinder is fine.”
Fact: Wheel cylinders can fail internally without any external leakage. A spongy pedal or poor braking performance can occur even without visible fluid loss.

Myth 2: “Bleeding the brakes will fix a failing wheel cylinder.”
Fact: While bleeding removes air, it cannot repair worn internal seals. If the cylinder is failing, replacement is the only permanent solution .

Myth 3: “Wheel cylinders are side-specific.”
Fact: For the Toyota RAV4 I, the wheel cylinder 47550-42010 is NOT side-specific and fits both left and right rear positions .

Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical bore diameter and mounting points are verified against design specifications

• Hydraulic seal test – sealing integrity is confirmed

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each wheel cylinder is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:
