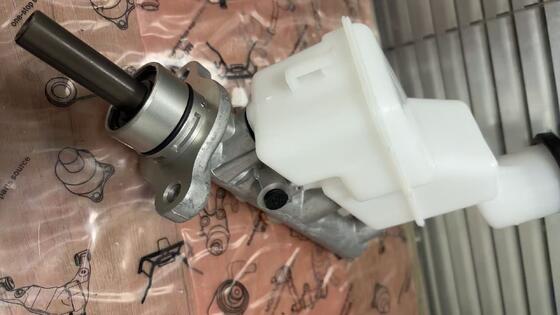

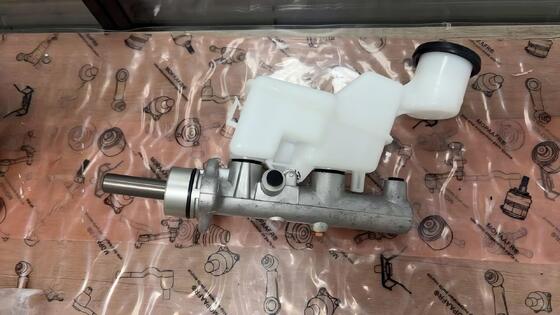

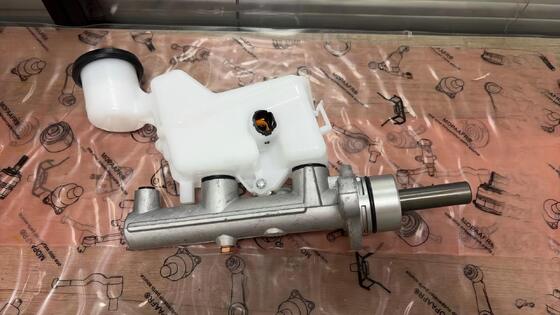

47201-42200 Brake Master Cylinder For 4720142200 Toyota RAV 4 ACA2 CLA2 ZCA2

Product Function Description

The brake master cylinder is a critical component of your Toyota vehicle's braking system. This hydraulic device converts the mechanical force of the brake pedal into hydraulic pressure, distributing brake fluid through the brake lines to activate the brakes at each wheel . For Toyota RAV4 II (A2) models (2000-2005), a properly functioning brake master cylinder is essential for consistent braking performance, reliable stopping power, and safe vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable brake system performance.

Common Symptoms of a Failing Brake Master Cylinder

If you are experiencing any of the following symptoms, your brake master cylinder may be failing and in need of replacement:

• Spongy or soft brake pedal: The pedal feels mushy and travels too far before engaging – this indicates internal seal failure or fluid bypass

• Brake pedal slowly sinks to the floor: The pedal continues to drop while holding pressure at a stop – this suggests internal leakage

• Brake fluid leaks: Visible fluid under the vehicle or around the master cylinder area – this indicates external seal failure

• Reduced braking power: The vehicle takes longer to stop than normal – this suggests insufficient hydraulic pressure

• Brake warning light: The dashboard warning light illuminates

• Discolored brake fluid: Dark or contaminated fluid in the reservoir – this indicates moisture or particulate contamination

If you have confirmed these symptoms through inspection, replacing the brake master cylinder is the recommended solution.

Product Attributes

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have intermediate mechanical skills and the required tools (flare nut wrenches, torque wrench, brake bleeder kit).

• You are comfortable working with brake system components and hydraulic lines.

• The job takes approximately 1-2 hours.

We recommend professional installation if:

• You are not comfortable with brake system repairs.

• You do not have the proper tools for brake bleeding and line disconnection.

• You are not confident in your mechanical skills.

Note: Improper installation can lead to brake failure, safety issues, and warranty concerns. After installation, the entire brake system must be properly bled to remove air. Bench-bleeding the master cylinder before installation is required to ensure proper operation. Use the correct DOT-3 or DOT-4 brake fluid as specified for your vehicle.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your brake master cylinder with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off. You will need the following tools: flare nut wrenches, socket set, torque wrench, brake bleeder kit, and new brake fluid.

Step 1: Drain the brake fluid from the reservoir. Place a suitable container underneath to catch any fluid spillage.

Step 2: Use a flare nut wrench to disconnect the brake lines from the old master cylinder. Be careful not to damage the line fittings.

Step 3: Remove the mounting nuts securing the master cylinder to the brake booster. Carefully remove the old cylinder.

Step 4: Transfer the reservoir and cap to the new cylinder if required (most new cylinders include the reservoir). Install the new master cylinder and tighten the mounting nuts to factory torque specifications.

Step 5: Reconnect all brake lines and tighten to specification. Fill the reservoir with fresh DOT-3 or DOT-4 brake fluid.

Step 6: Bench-bleed the master cylinder before installation to remove internal air. Bleed the entire brake system starting from the wheel farthest from the master cylinder. Test brake pedal feel – it should feel firm and consistent.

Pro Tip: Always bench-bleed the new master cylinder before installation to remove internal air – this step cannot be skipped. Use a flare nut wrench to avoid rounding the brake line fittings. After installation, test the brakes at low speed to ensure proper operation and no pulling.

Package Contents

1 x Brake Master Cylinder Assembly (includes reservoir). Note: Mounting hardware and brake fluid are NOT included unless stated. Please confirm compatibility with your vehicle model, year, engine, and ABS configuration before purchasing.

Common Misconceptions About Brake Master Cylinders

Myth 1: “If the brake pedal feels spongy, bleeding the brakes will fix it.”
Fact: While bleeding is necessary to remove air, a spongy pedal that persists after bleeding often indicates internal master cylinder seal failure.

Myth 2: “The master cylinder doesn‘t need replacing unless it’s leaking externally.”
Fact: Master cylinders can fail internally without any external leakage, allowing fluid to bypass the seals and reducing braking pressure.

Myth 3: “All master cylinders with the same piston diameter are interchangeable.”
Fact: Master cylinders must match the vehicle‘s brake system specifications including port configuration, mounting points, and reservoir design.

After Replacement Still Having Issues?

Replaced the master cylinder but still having brake issues? Check these:

1. Is there air in the brake system? – Bleed the entire system again in the correct sequence

2. Was the master cylinder bench-bled? – If not, air may be trapped inside the cylinder

3. Are the brake lines properly tightened? – Loose connections can allow air to enter

4. Is the brake booster working? – A failed booster can cause a hard pedal, not a spongy one

5. Are the brake hoses in good condition? – Swollen or damaged hoses can cause pedal issues

6. Is there a leak elsewhere in the system? – Check wheel cylinders and calipers for leaks

 Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical mounting points and bore diameter are verified against design specifications

• Hydraulic seal test – sealing integrity is confirmed

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each brake master cylinder is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.
