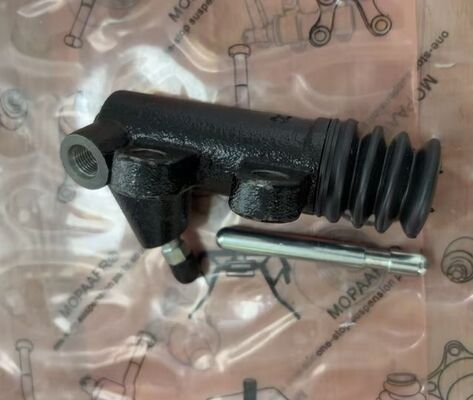

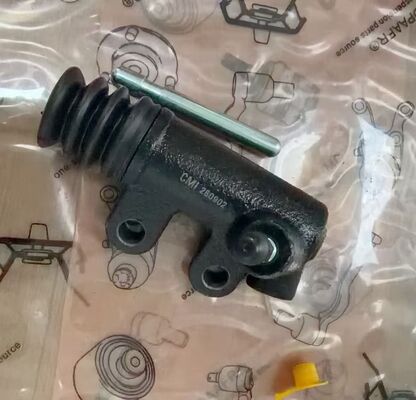

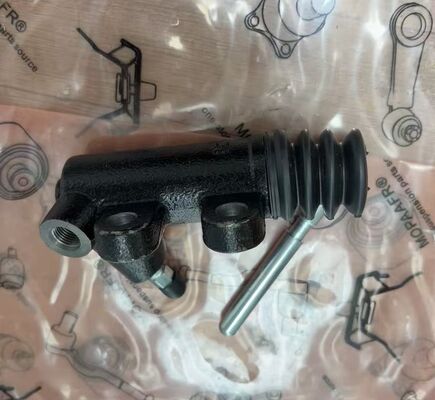

31470-42020 Clutch Slave Cylinder For 31470-42020 TOYOTA Rav 4 2.0L

Product Function Description

The clutch slave cylinder is a critical component of your Toyota vehicle's hydraulic clutch system. This hydraulic actuator converts fluid pressure from the clutch master cylinder into mechanical movement, which pushes the clutch fork to disengage the clutch when you press the pedal . For Toyota RAV4 and compatible models, a properly functioning slave cylinder is essential for smooth gear changes, consistent clutch pedal feel, and reliable clutch operation. This component is designed to factory specifications, ensuring proper fit and reliable hydraulic performance .

Common Symptoms of a Failing Clutch Slave Cylinder

If you are experiencing any of the following symptoms, your clutch slave cylinder may be failing and in need of replacement:

• Spongy or soft clutch pedal: The pedal feels mushy and lacks firm resistance – this indicates air in the system or internal seal failure

• Difficulty shifting gears: Gears grind or refuse to engage smoothly – this suggests the clutch is not fully disengaging

• Clutch fluid leaks: Visible fluid on the slave cylinder, bell housing, or under the vehicle – this indicates worn seals

• Clutch pedal slowly sinks to the floor: The pedal drops when pressure is held – this suggests internal leakage

• Low clutch fluid level: Unexplained fluid loss without visible external leaks elsewhere – this may indicate internal seal failure

If you have confirmed these symptoms through inspection, replacing the clutch slave cylinder is the recommended solution.

How to Diagnose a Faulty Clutch Slave Cylinder

Before purchasing a replacement, perform these simple checks to confirm the slave cylinder is the issue:

• Visual Inspection: Check the slave cylinder for fluid leaks around the push rod and hydraulic line connection. Inspect the rubber dust boot for damage or moisture.

• Pedal Feel Test: With the engine off, press the clutch pedal – if it feels spongy or slowly sinks, the slave cylinder may be failing.

• Fluid Level Check: Check the clutch fluid reservoir level – if it keeps dropping without visible external leaks, the slave cylinder may be leaking internally.

• Bleed Test: If bleeding the clutch system temporarily improves pedal feel, the slave cylinder may be the source of air ingress.

Product Attributes

Why Choose This Clutch Slave Cylinder?

Restores Clutch Hydraulic Function – A failing slave cylinder allows fluid bypass and air ingress, compromising clutch operation. This new cylinder restores proper hydraulic pressure for consistent clutch feel and smooth shifting.

Eliminates Fluid Leaks – Worn seals cause fluid leaks that can damage other components and reduce clutch performance. This new cylinder comes with fresh seals for leak-free operation.

Direct Replacement – Precision-engineered to match the original cylinder specifications. Direct bolt-on replacement – no modifications required .

Proven Compatibility – Confirmed compatible with Toyota RAV4 I (XA10) 1994-2000 with SXA10/SXA11 chassis and 3S-FE engine.

Quality Construction – Manufactured with durable materials to withstand demanding operating conditions and provide long service life.

Package Contents

1 x Clutch Slave Cylinder Assembly. Note:  Please confirm compatibility with your vehicle model and year before purchasing.

DIY or Professional Installation?

This replacement is suitable for DIY if:

• You have basic mechanical skills and the required tools (socket set, flare nut wrench, brake bleeder kit).

• You are comfortable working under the vehicle and with hydraulic clutch components.

• The job takes approximately 1-2 hours.

We recommend professional installation if:

• You are not comfortable with hydraulic clutch system repairs.

• You do not have the proper tools for clutch system bleeding.

• You are not confident in your mechanical skills.

Note: Improper installation can lead to clutch failure and safety issues. After installation, the clutch hydraulic system must be properly bled to remove all air. Use the correct clutch fluid as specified for your vehicle.

Step-by-Step Installation Guide

This installation guide is designed to help you replace your clutch slave cylinder with confidence. Before starting, ensure the vehicle is parked on level ground with the engine off. You will need the following tools: socket set, flare nut wrench, brake bleeder kit, and clutch fluid.

Step 1: Safely raise the vehicle and support it with jack stands. Locate the clutch slave cylinder on the transmission housing.

Step 2: Place a suitable container underneath to catch any fluid spillage. Disconnect the hydraulic line from the old cylinder using a flare nut wrench.

Step 3: Remove the mounting bolts securing the slave cylinder to the transmission housing. Remove the old cylinder.

Step 4: Clean the mounting surface thoroughly. Install the new slave cylinder and tighten the mounting bolts to factory torque specifications.

Step 5: Reconnect the hydraulic line and ensure it is secure. Refill the clutch fluid reservoir with fresh fluid.

Step 6: Bleed the clutch hydraulic system by pumping the clutch pedal and opening the bleeder valve on the slave cylinder to remove air.

Critical Step: After installation, test clutch pedal feel – it should feel firm and consistent. Check for fluid leaks around the cylinder connections. Road-test the vehicle to confirm smooth shifting.

Pro Tip: When replacing the clutch slave cylinder, it is recommended to inspect the hydraulic hose and replace it if worn. Always use fresh clutch fluid and properly bleed the system.

Common Misconceptions About Clutch Slave Cylinders

Myth 1: "If it's not leaking fluid, the slave cylinder is fine."
Fact: Slave cylinders can fail internally without any external leakage. A spongy pedal or difficulty shifting can occur even without visible fluid loss.

Myth 2: "Bleeding the clutch will fix a failing slave cylinder."
Fact: While bleeding removes air, it cannot repair worn internal seals. If the cylinder is failing, replacement is the only permanent solution.

Myth 3: "All clutch slave cylinders are the same."
Fact: Slave cylinders are vehicle-specific and must match the vehicle's clutch system specifications. Using the correct part ensures proper fit and function .

 Installation Tips & Common Mistakes

The Mistake When Replacing a Clutch Slave Cylinder:

❌ Wrong: Failing to bleed the clutch system properly after installation.

✅ Correct:

1. Always bleed the clutch system – Air in the hydraulic system can cause a spongy pedal and incomplete clutch disengagement.

2. Use a flare nut wrench – Prevents rounding of hydraulic line fittings.

3. Use fresh fluid – Old fluid may contain moisture that can damage seals.

4. Check the push rod – Ensure the push rod is correctly seated in the clutch fork.

5. Check for leaks – After bleeding, inspect all connections for fluid seepage.

⚠️ Remember: A properly bled clutch system results in a firm, consistent pedal feel. If the pedal feels spongy or goes to the floor, there may still be air in the system.

Inspection & Maintenance Recommendations

The clutch slave cylinder should be inspected regularly as part of routine clutch system maintenance. Signs of leakage or abnormal pedal feel indicate the need for inspection or replacement.

Common indicators that the slave cylinder may need replacement:

Inspection Checklist:

• Inspect the slave cylinder for fluid leaks around the push rod and hydraulic line connection.

• Check the rubber boot for cracks or damage.

• Check clutch fluid level and condition.

• Check for a spongy or soft clutch pedal.

Maintenance Tips:

• Replace the clutch slave cylinder if signs of leakage or internal wear are present.

• When replacing the slave cylinder, inspect the clutch master cylinder and hydraulic lines.

• Use the correct clutch/brake fluid as specified in the vehicle manual.

• Bleed the clutch system after any hydraulic component replacement.

After Replacement Still Having Issues?

Replaced the clutch slave cylinder but still having issues? Check these:

1. Was the system properly bled? – Air in the system can cause a spongy pedal and shifting issues

2. Is the clutch master cylinder working correctly? – A failing master cylinder can cause similar symptoms

3. Is the push rod correctly seated? – Improper installation can cause incorrect clutch actuation

4. Is the clutch fork worn or damaged? – A worn fork can affect clutch engagement

5. Is the clutch fluid the correct type? – Use DOT 3 or DOT 4 as specified

6. Is there a leak in the hydraulic line? – A leak anywhere in the system can cause pedal issues

Quality Assurance & Service Commitment

Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:

• Dimensional inspection – critical mounting points and bore size are verified against design specifications

• Hydraulic seal test – sealing integrity is confirmed

• Surface finish inspection – corrosion protection and surface quality are visually verified

Packaging Protection:
Each clutch slave cylinder is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.

Service Commitment:
