Product Description
Product Function Description

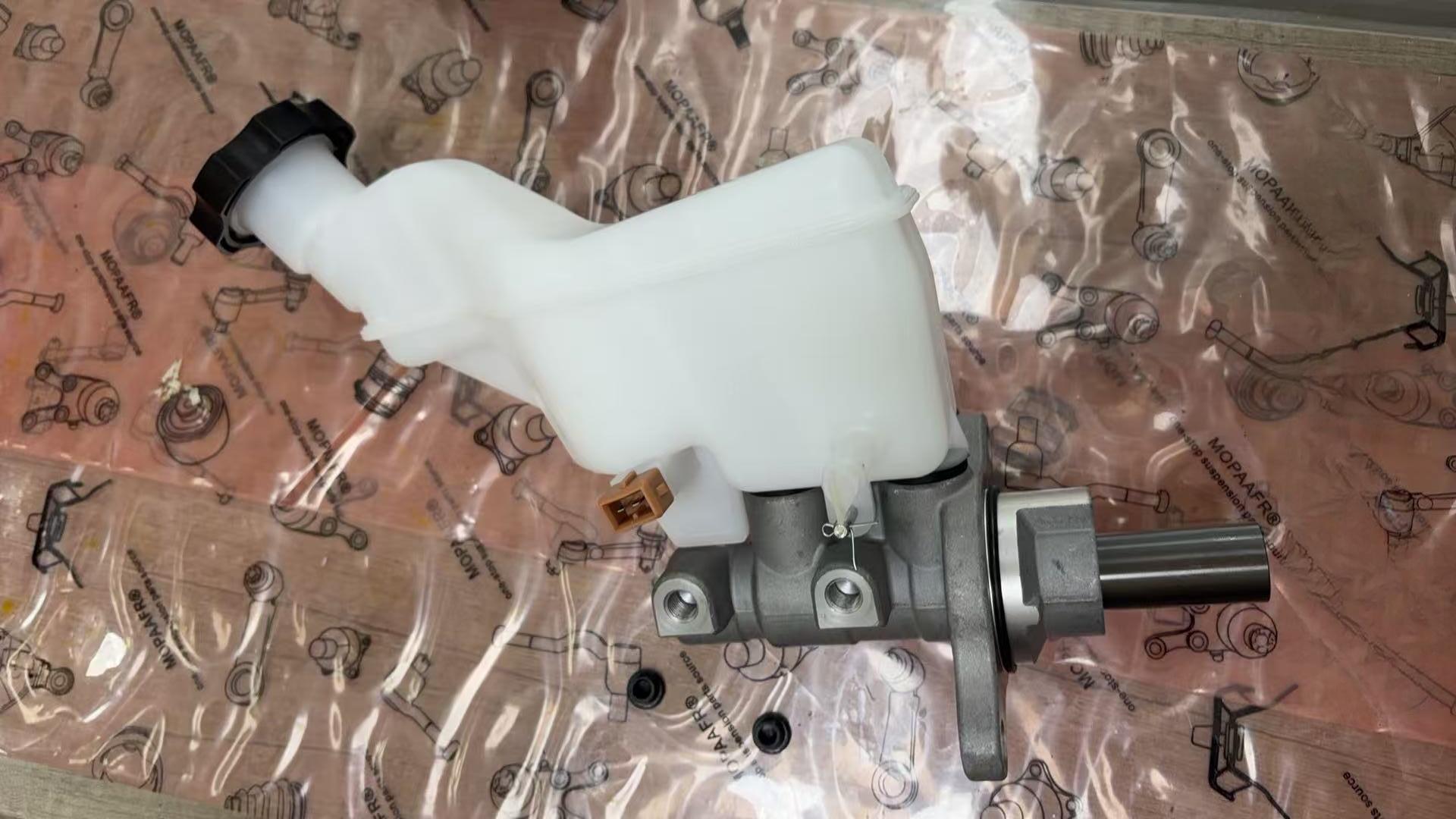

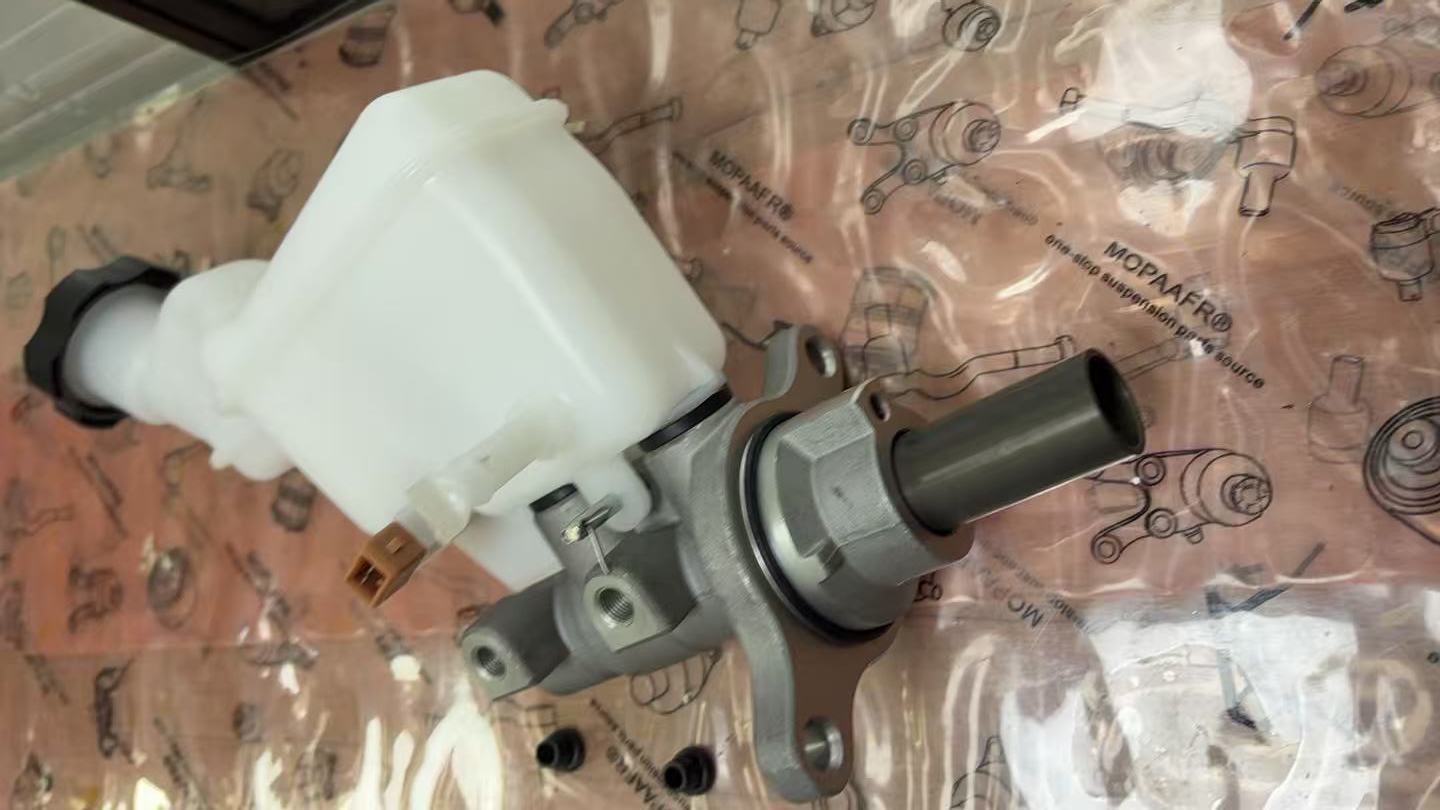

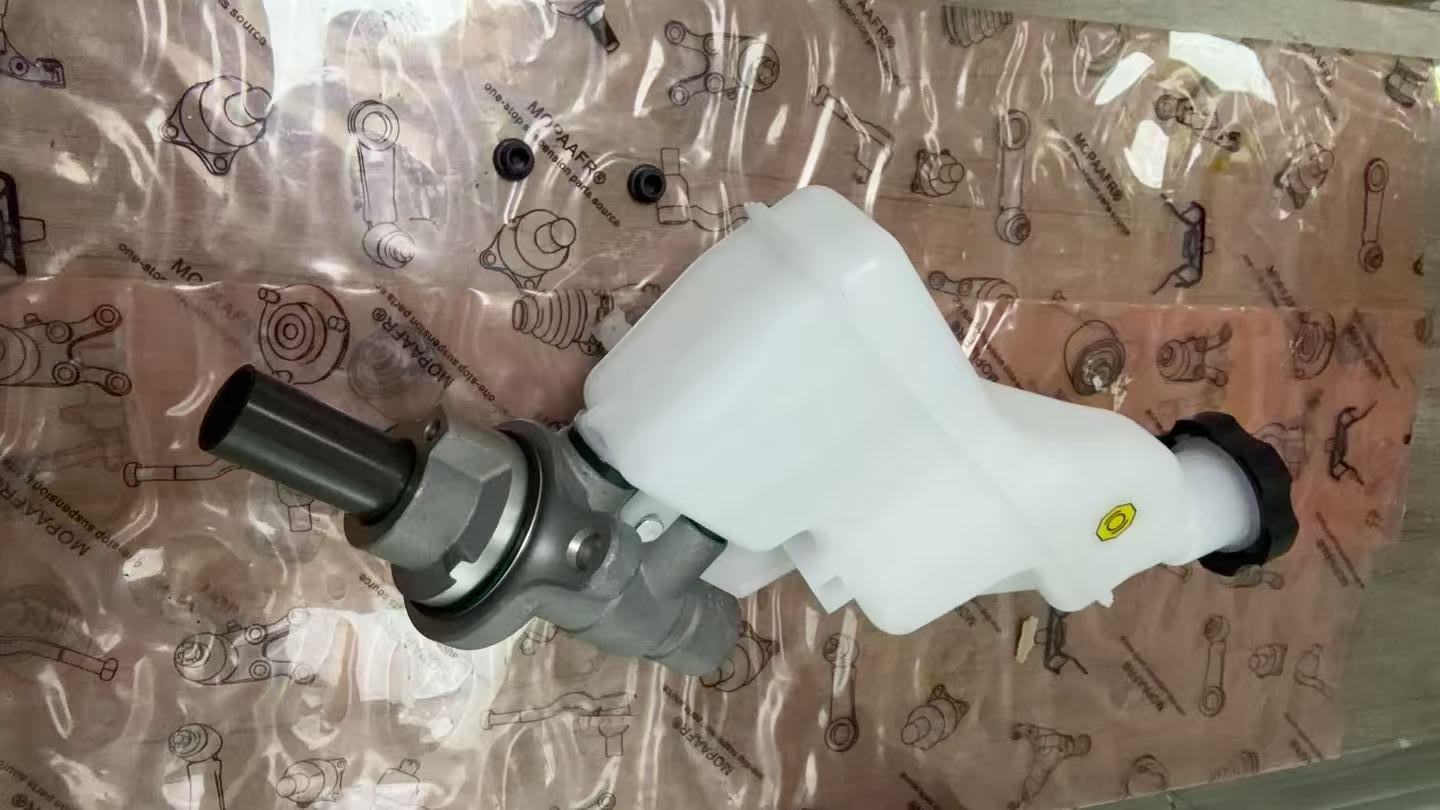

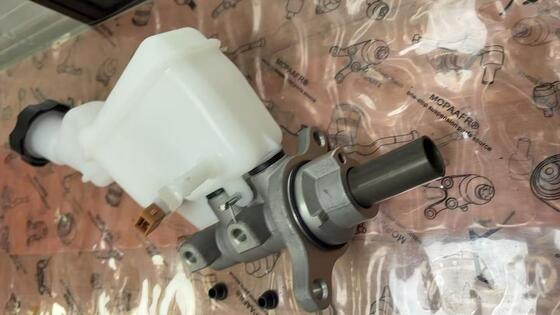

The brake master cylinder is a critical component of your Hyundai Elantra's braking system. This hydraulic device converts the mechanical force of the brake pedal into hydraulic pressure, distributing brake fluid through the brake lines to activate the brakes at each wheel. For the 2013-2017 Hyundai Elantra, a properly functioning brake master cylinder is essential for consistent braking performance, reliable stopping power, and safe vehicle operation. This component is designed to factory specifications, ensuring proper fit and reliable brake system performance.
Common Symptoms of a Failing Brake Master Cylinder
If you are experiencing any of the following symptoms, your brake master cylinder may be failing and in need of replacement:
-
Spongy or soft brake pedal: The pedal feels mushy and travels too far before engaging – this indicates internal seal failure or fluid bypass
-
Brake pedal slowly sinks to the floor: The pedal continues to drop while holding pressure at a stop – this suggests internal leakage
-
Brake fluid leaks: Visible fluid under the vehicle or around the master cylinder area – this indicates external seal failure
-
Reduced braking power: The vehicle takes longer to stop than normal – this suggests insufficient hydraulic pressure
-
Brake warning light: The dashboard warning light illuminates
-
Discolored brake fluid: Dark or contaminated fluid in the reservoir – this indicates moisture or particulate contamination
If you have confirmed these symptoms through inspection, replacing the brake master cylinder is the recommended solution.
How to Diagnose a Faulty Brake Master Cylinder
Before purchasing a replacement, perform these simple checks to confirm the master cylinder is the issue:
-
Visual Inspection: Check the master cylinder and surrounding area for brake fluid leaks. Inspect the reservoir for fluid level and contamination.
-
Pedal Feel Test: With the engine off, pump the brake pedal several times. If the pedal slowly sinks to the floor under steady pressure, the master cylinder is likely failing.
-
Brake System Inspection: Check for external leaks at all brake lines and calipers – if no external leaks are found but fluid level is dropping, the master cylinder may be leaking internally.
-
Warning Lights: Check the dashboard for brake warning lights that may indicate system issues.
Product Attributes
Why Choose This Brake Master Cylinder?
Restores Braking Performance – A failing master cylinder reduces braking effectiveness and compromises vehicle safety. This new cylinder restores proper hydraulic pressure for reliable stopping power.
Direct Replacement – Precision-engineered to match the original cylinder specifications. Direct bolt-on replacement – no modifications required.
Proven Compatibility – This cylinder is confirmed compatible with Hyundai Elantra 2013-2017 models.
Quality Construction – Manufactured with aluminium housing and 7/8" (22.2mm) bore diameter to withstand demanding braking conditions and provide long service life.
Essential for Vehicle Safety – The brake master cylinder is a critical safety component that directly affects stopping ability and vehicle control.
Installation Guidelines
Tools typically required:
-
Flare nut wrench (brake line)
-
Socket wrench set (metric)
-
Torque wrench
-
Brake bleeding equipment
-
Brake fluid (DOT 3 or DOT 4 as specified)
-
Safety gloves and eye protection
General installation reference (always follow vehicle-specific service manual):
Important:
-
Do not reuse drained brake fluid. Always use fresh brake fluid.
-
Use the brake fluid grade specified in the owner's manual (DOT 3 or DOT 4).
-
The master cylinder is supplied with the reservoir .
-
If equipped with ABS/ESP, using a scan tool to cycle the modulator can improve bleeding results .
-
If you are unsure about any step, consult a qualified mechanic.
Installation Tips & Common Mistakes
The Mistake When Replacing a Brake Master Cylinder:
❌ Wrong: Failing to bench-bleed the master cylinder before installation, or not bleeding the entire system afterward.
✅ Correct:
-
Always bench-bleed the new master cylinder before installation – This removes trapped air from the cylinder itself.
-
Use a flare nut wrench – Prevents rounding of brake line fittings.
-
Bleed the entire brake system after installation – Follow the correct bleeding sequence (typically furthest wheel first).
-
Use fresh brake fluid – Never reuse old fluid as it may contain moisture and contaminants.
-
Check for leaks – After bleeding, inspect all connections for fluid seepage.
⚠️ Remember: If the master cylinder is installed without proper bleeding, the brake pedal will feel spongy or go to the floor. A properly bled system results in a firm, consistent pedal feel.
Industry Knowledge
Hyundai Elantra Brake System – What You Should Know:
The 2013-2017 Hyundai Elantra uses a hydraulic brake system with a tandem master cylinder . The brake master cylinder on this generation Elantra is shared across multiple Hyundai/Kia platforms, making it widely available .
Why This Master Cylinder is Important:
-
The master cylinder is the heart of the hydraulic brake system
-
A failing master cylinder can lead to brake failure if not addressed
-
The part is shared with other Hyundai/Kia models including the Veloster, i30, Tucson, and Sportage
Common Service Practice:
-
Master cylinders should be replaced if internal leakage is detected
-
Brake fluid should be replaced every 2 years to prevent moisture contamination
-
When replacing the master cylinder, always replace the brake fluid and bleed the system completely
Package Contents
Note: The assembly includes the reservoir . Confirm with your specific seller.
After Replacement Still Having Issues?
Replaced the master cylinder but still having brake issues? Check these:
-
Is there air in the brake system? – Bleed the entire system again in the correct sequence
-
Was the master cylinder bench-bled? – If not, air may be trapped inside the cylinder
-
Are the brake lines properly tightened? – Loose connections can allow air to enter
-
Is the brake booster working? – A failed booster can cause a hard pedal, not a spongy one
-
Are the brake hoses in good condition? – Swollen or damaged hoses can cause pedal issues
-
Is there a leak elsewhere in the system? – Check wheel cylinders and calipers for leaks
Quality Assurance & Service Commitment
Quality Assurance:
Every component is manufactured under controlled production processes to ensure consistent dimensional accuracy and material integrity. Each unit undergoes the following quality checks before packaging:
-
Dimensional inspection – critical mounting points and bore diameter are verified against design specifications
-
Hydraulic seal test – sealing integrity is confirmed
-
Surface finish inspection – corrosion protection and surface quality are visually verified
Packaging Protection:
Each brake master cylinder is individually sealed in protective packaging to prevent contamination and physical damage during storage and transit. The packaging includes a clear part number label for easy identification.
Service Commitment:
Related Product Recommendations (Extended)
When replacing the brake master cylinder on the Hyundai Elantra, it is often recommended to inspect and consider replacing the following related components at the same time.
Brake Calipers – Inspect front and rear calipers for leaks, sticking pistons, or damaged dust boots. A sticking caliper can cause pulling and uneven pad wear.
Brake Pads – Inspect brake pad thickness. If pads are worn thin, replace them. Contaminated pads should always be replaced.
ABS Wheel Speed Sensors – If the ABS warning light is on, inspect the wheel speed sensors for damage or contamination.
Brake Light Switch – Located near the brake pedal. Check if brake lights operate correctly when the pedal is pressed.
