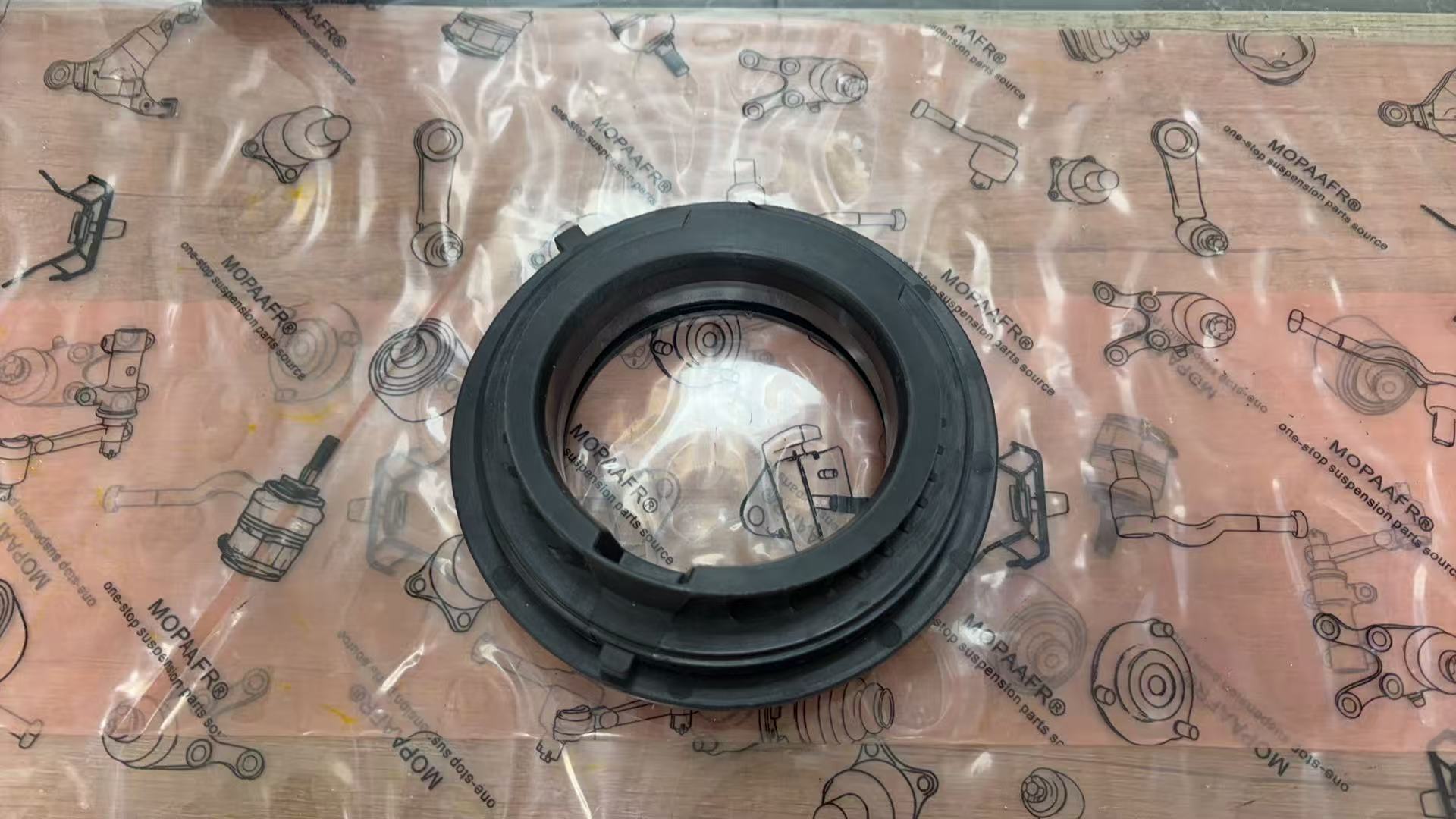

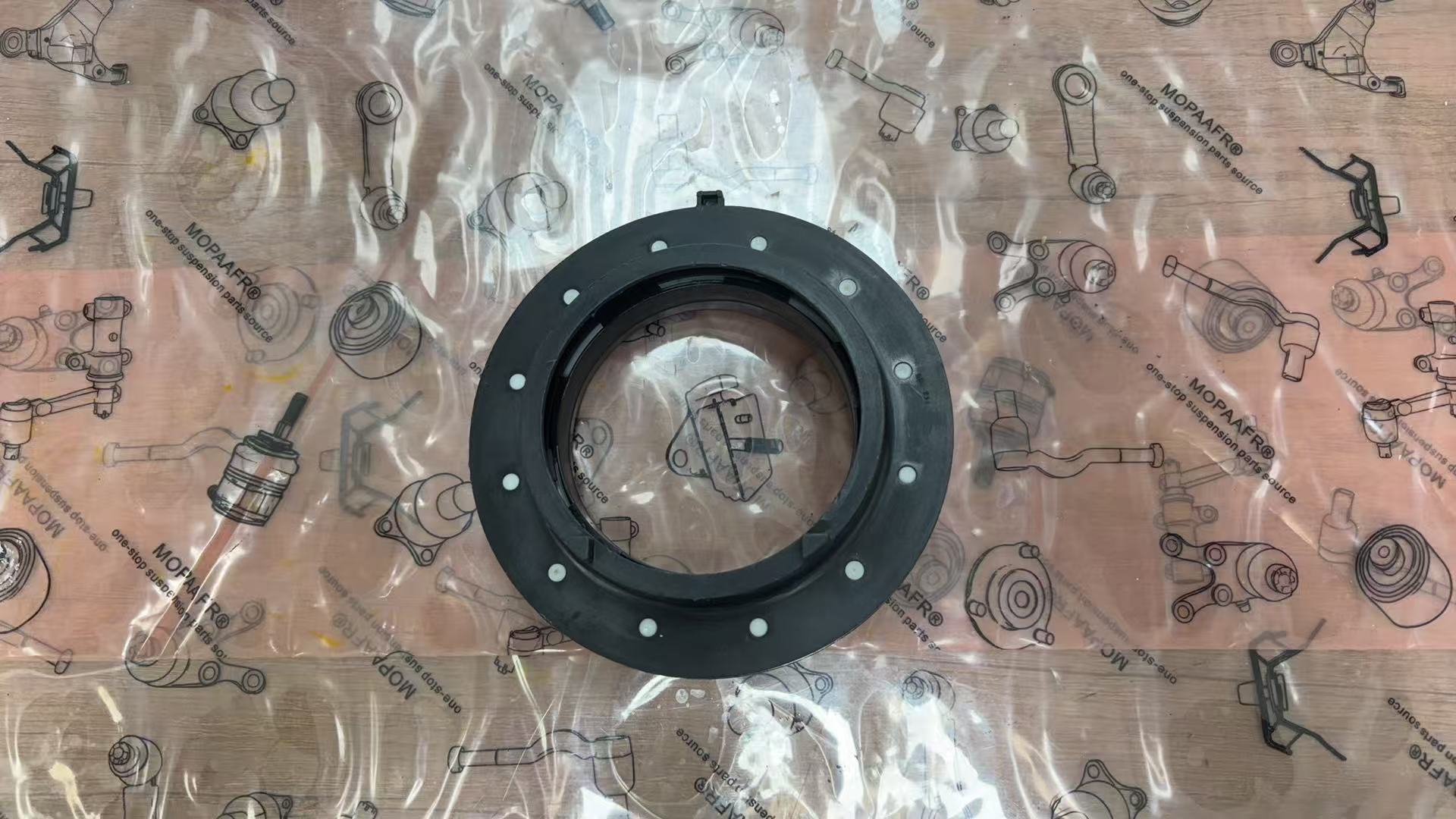

48619-F4010 Rolling Bearing suspension strut support Fits TOYOTA COROLLA

Product Description

Product Function Description

The rolling bearing for the suspension strut support mount is a critical component of your Toyota vehicle‘s front suspension system. This bearing sits between the strut mount and the coil spring, allowing the strut assembly to rotate smoothly as the steering wheel turns. When you steer, the entire strut assembly must pivot to follow the wheel’s movement, and this rolling bearing provides the low-friction rotation necessary for light, responsive steering. For Toyota models equipped with MacPherson strut front suspension, a properly functioning strut bearing ensures smooth steering operation, consistent handling feel, and reduces wear on other suspension components. This bearing is manufactured to exact factory specifications, ensuring proper fit and reliable performance.

When Should You Replace It?

Consider replacing your strut mount bearing if you experience any of the following symptoms: Popping, creaking, or grinding noise from the front suspension when turning the steering wheel, especially at low speeds or when stationary. Steering feels stiff, notchy, or requires more effort than usual. Uneven steering resistance or binding feeling during turns. Vibration felt through the steering wheel during cornering. Unusual tire wear patterns on the front tires. You are replacing the front struts – it is recommended to replace the strut bearing at the same time. The bearing shows visible signs of wear, damage, or loss of lubrication. The vehicle has high mileage and the strut bearings have never been replaced. Note: Strut mount bearings are wear items that should be inspected during suspension service and replaced when signs of wear or damage appear.

Compatible Vehicles

TOYOTAC-HR (_X1_)1.2 (NGX10_, NGX10R)85 KW / 116 HP2016.10

TOYOTAC-HR (_X1_)1.2 4WD (NGX50_, NGX50R)85 KW / 116 HP2016.10

TOYOTAC-HR (_X1_)1.2 4WD (NGX50)96 KW / 131 HP2016.10

TOYOTAC-HR (_X1_)1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R)90 KW / 122 HP2016.10

TOYOTAC-HR (_X1_)2.0 (ZGX10_)109 KW / 148 HP2016.11

TOYOTAC-HR (_X1_)2.0 Hybrid (MAXH10)135 KW / 184 HP2019.10

TOYOTACOROLLA CROSS (ZVG1_, ZSG1_, MXGH1_, MXGA1_)2.0 VVTi Hybrid (MXGH12, MXGH10)144 KW / 196 HP2022.08

TOYOTACOROLLA CROSS (ZVG1_, ZSG1_, MXGH1_, MXGA1_)2.0 VVTi Hybrid AWD (MXGH15)144 KW / 196 HP2022.08

TOYOTACOROLLA Estate (_E21_)1.8 Hybrid (ZWE211W)90 KW / 122 HP2019.02

TOYOTACOROLLA Estate (_E21_)2.0 Hybrid (MZEH12)135 KW / 184 HP2021.05

TOYOTACOROLLA Estate (_E21_)2.0 Hybrid (MZEH12)132 KW / 180 HP2019.02

TOYOTACOROLLA Hatchback (_E21_, _EA1_, _EH1_)1.8 Hybrid (ZWE211, ZWE219)90 KW / 122 HP2018.10

TOYOTACOROLLA Hatchback (_E21_, _EA1_, _EH1_)2.0 Hybrid (MZEH12)132 KW / 180 HP2019.02

TOYOTACOROLLA Hatchback (_E21_, _EA1_, _EH1_)2.0 Hybrid (MZEH12)135 KW / 184 HP2021.05

Package Contents

1 x Strut Mount Bearing (48619-F4010 / 48619-02010). Note: Strut mount assembly and mounting bolts are NOT included. Please confirm compatibility with your Toyota model before purchasing. This part fits both left and right front positions .

Installation Tips

Important: The suspension system is a critical safety system. Professional installation is strongly recommended. Safely raise the vehicle and support it on jack stands. Remove the front wheel on the side you are working on. Support the lower control arm with a jack to relieve pressure on the suspension. Remove the strut assembly from the vehicle. Use a spring compressor tool to safely compress the coil spring before disassembling the strut. Carefully disassemble the strut assembly and remove the old bearing. Install the new bearing onto the strut, ensuring correct orientation. Reinstall the strut assembly onto the vehicle and tighten all mounting bolts to factory torque specifications. Critical Step: After installation, a professional wheel alignment is MANDATORY to ensure proper handling and prevent uneven tire wear. Professional installation is highly recommended if you are not familiar with suspension system repairs.

Common Issues with Toyota Strut Mount Bearings

Toyota owners sometimes encounter strut mount bearing issues: Bearing wear – The internal rolling elements can wear over time, creating resistance and noise during steering. Loss of lubrication – The bearing‘s factory lubrication can dry out or become contaminated, increasing friction and wear. Heat exposure – Under-hood heat can degrade the bearing’s plastic components over time. High mileage – Vehicles with high mileage are more prone to strut bearing failure, especially if the original bearings have never been replaced. Age – Bearing components degrade over time regardless of mileage. This genuine replacement bearing is designed to address these issues with quality materials and durable construction, restoring proper steering function and comfort.

After-Sales Service & Warranty

This genuine Toyota part is covered by our quality assurance. If you have any questions or issues regarding fitment or quality, please contact us and we will respond within 24 hours.
