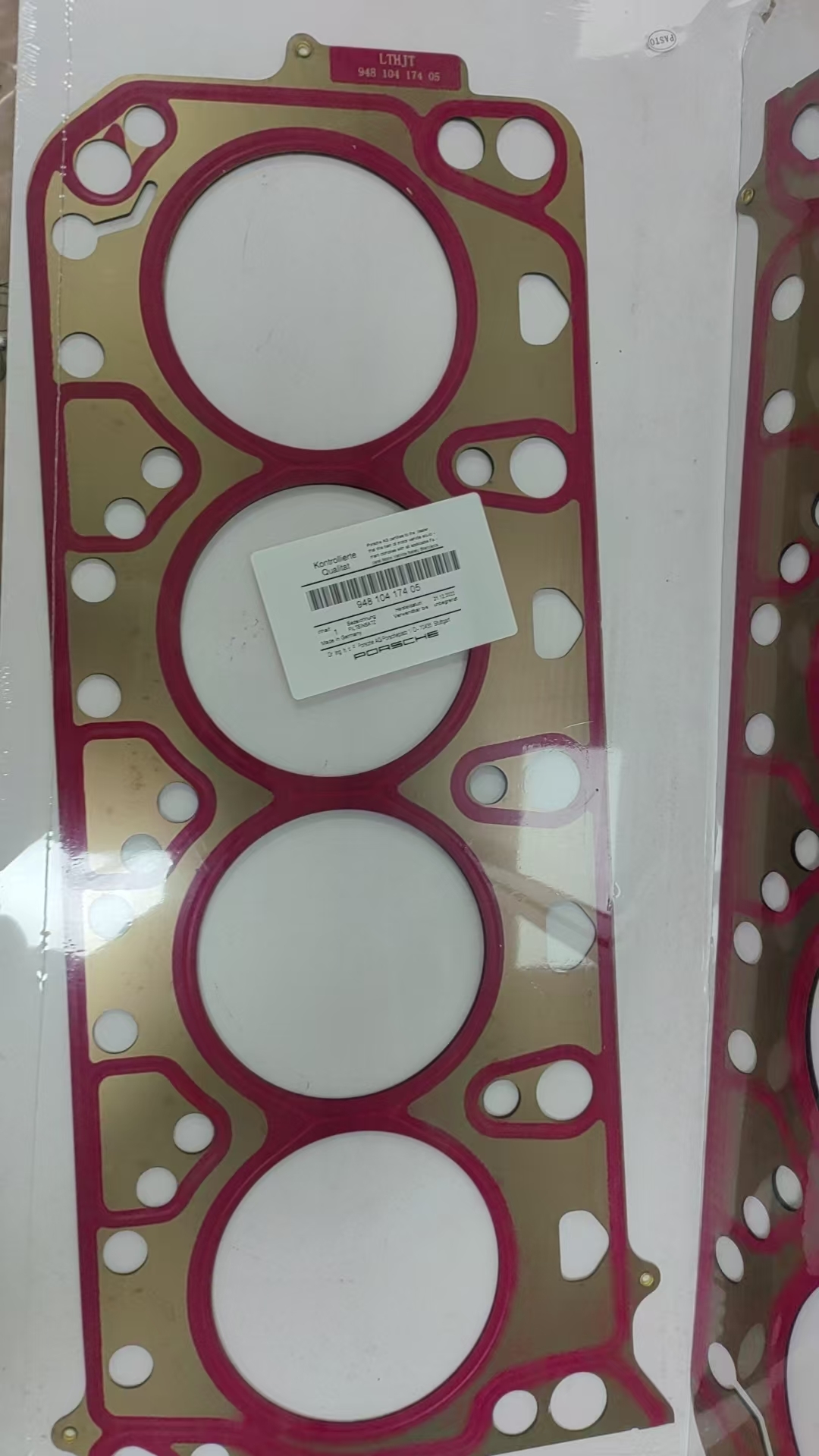

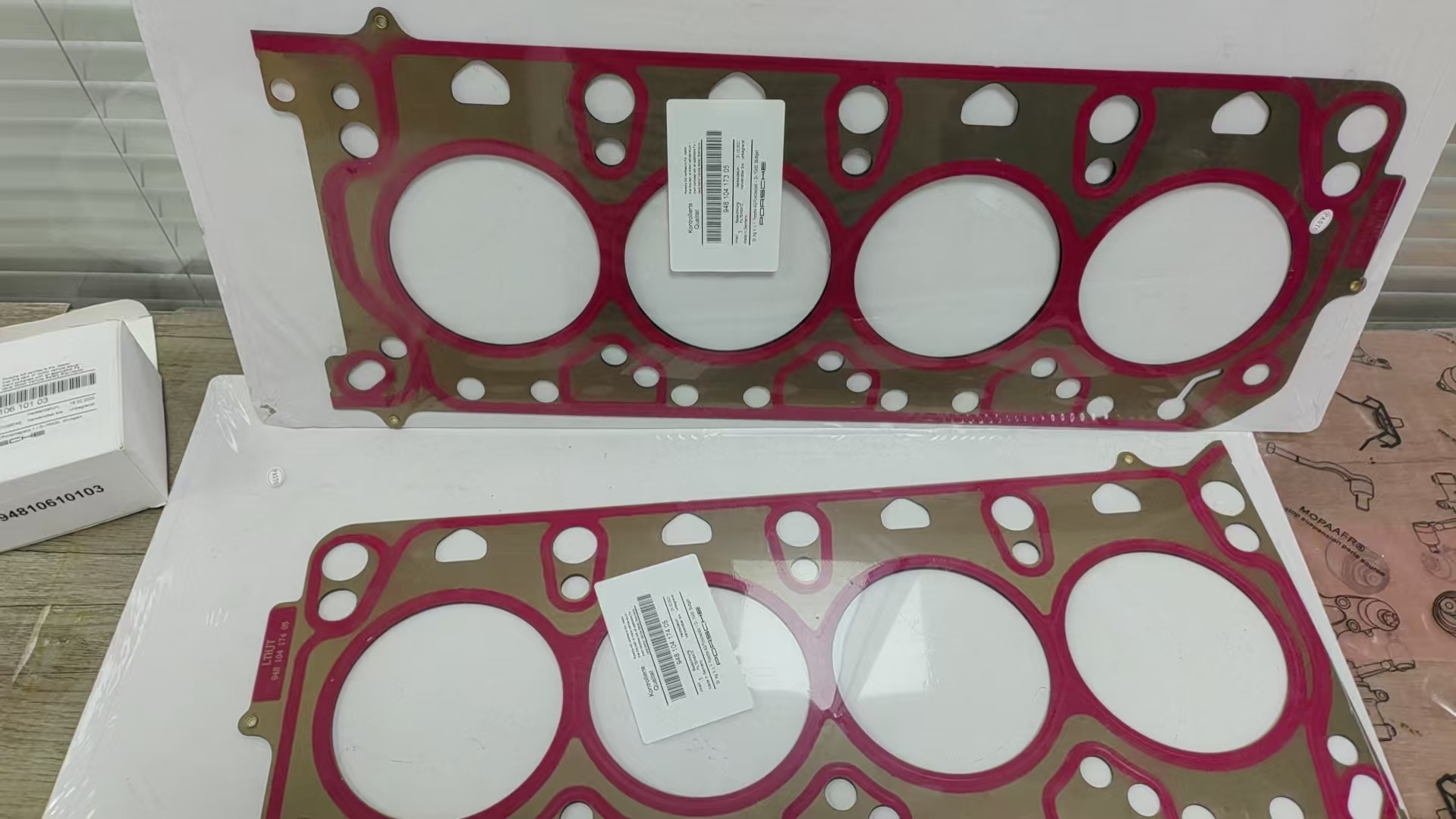

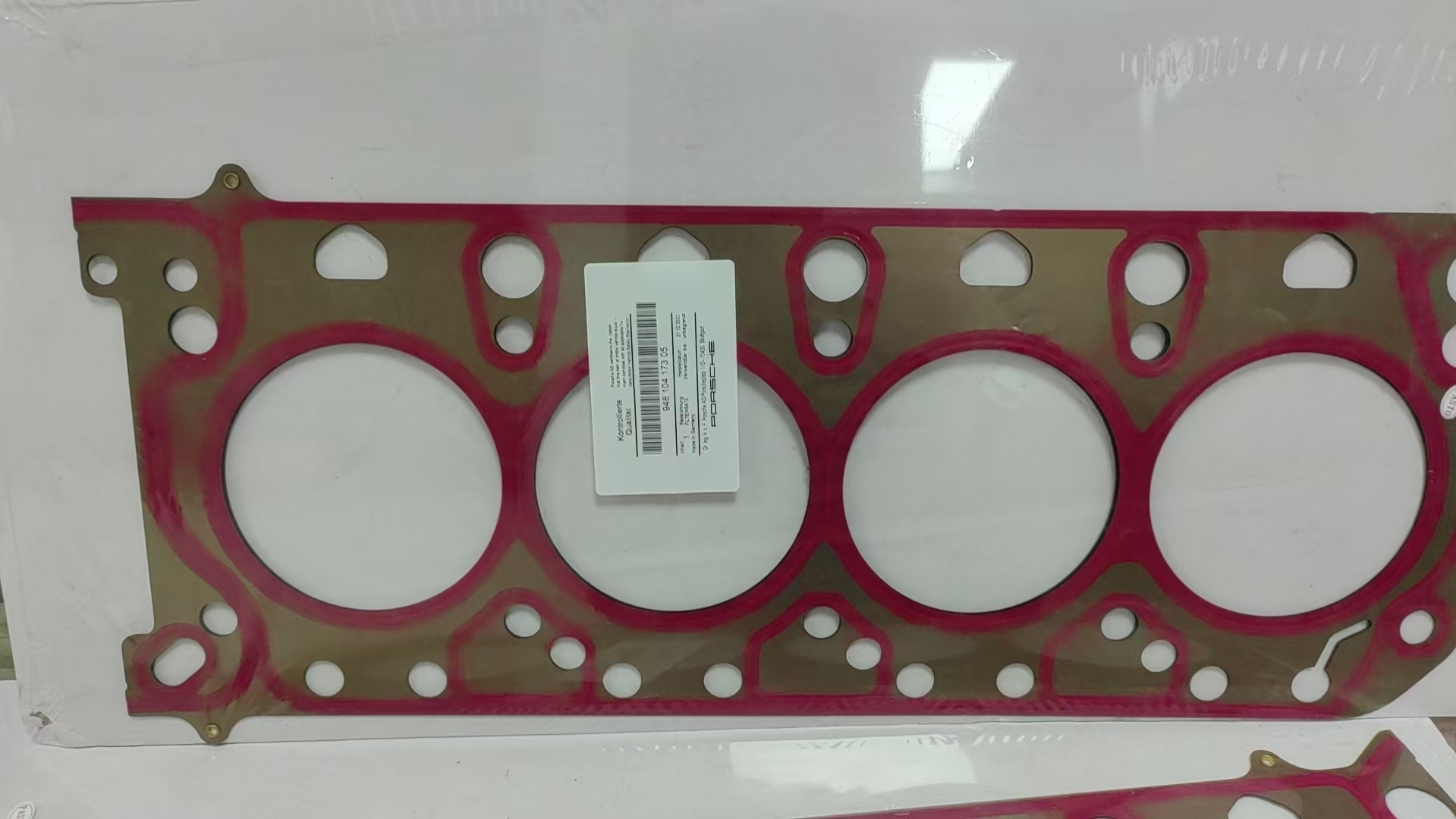

94810417305、94810417405 Cylinder Head Gasket Set Fits Porsche Cayenne 4.8L V8 2008-2018
94810417305、94810417405 Cylinder Head Gasket Set Fits Porsche Cayenne 4.8L V8 2008-2018 94810417305、94810417405 Cylinder Head Gasket Set Fits Porsche Cayenne 4.8L V8 2008-2018 94810417305、94810417405 Cylinder Head Gasket Set Fits Porsche Cayenne 4.8L V8 2008-2018

94810417305、94810417405 Cylinder Head Gasket Set Fits Porsche Cayenne 4.8L V8 2008-2018

Product Details:
Place of Origin: CHINA
Brand Name: MOPAAFR
Certification: TS16949
Model Number: 94810417305、94810417405
Document: 94810417305 、 94810417405...05.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: whole price
Packaging Details: brown box
Delivery Time: 5-8work days
Payment Terms: L/C,D/P,D/A,T/T,Western Union,Money Gram
Supply Ability: 35000pcs-40000pcs/month
Contact Now

Detail Information
Highlight:

Porsche Cayenne cylinder head gasket set

,

4.8L V8 cylinder head gasket

,

Porsche Cayenne gasket set with warranty

Product Description

Fitment List (Year / Trim / Engine):



Year Trim Engine Induction
2008 S / GTS 4.8L V8 Naturally Aspirated
2008 Turbo 4.8L V8 Turbocharged
2009 S / GTS 4.8L V8 Naturally Aspirated
2009 Turbo / Turbo S 4.8L V8 Turbocharged
2010 S / GTS / S Transsyberia 4.8L V8 Naturally Aspirated
2010 Turbo / Turbo S 4.8L V8 Turbocharged
2011–2013 S 4.8L V8 Naturally Aspirated
2011–2013 Turbo / Turbo S 4.8L V8 Turbocharged
2011–2013 S Hybrid 3.0L V6 Supercharged (Not Compatible)
2014 S / GTS 4.8L V8 Naturally Aspirated
2014 Turbo / Turbo S 4.8L V8 Turbocharged
2014 S Hybrid 3.0L V6 Supercharged (Not Compatible)
2015–2018 Turbo 4.8L V8 Turbocharged
2015–2018 Turbo S 4.8L V8 Turbocharged

Recommended Supporting Parts (Recommended to Replace Together)



Part Name Remarks
Cylinder Head Bolts Single-use (torque-to-yield / angle-tightening method) — must be replaced
Intake Manifold Gasket Recommended to replace after intake manifold removal
Exhaust Manifold Gasket Recommended to replace after exhaust manifold removal
Valve Cover Gasket Recommended to replace simultaneously
Timing Chain Cover Seal Depends on disassembly scope
Coolant / Antifreeze Must be refilled after cylinder head gasket replacement
Engine Oil + Oil Filter Recommended to replace at the same time



Installation Key Points (Expanded)



Step Details
Preparation Engine must be completely cooled before operation. Disconnect battery negative terminal. Drain coolant and engine oil.
Surface Preparation Cylinder block and cylinder head mating surfaces must be thoroughly cleaned — free of oil, dirt, and old gasket residue.
Bolt Replacement Cylinder head bolts are single-use (torque-to-yield design). They must be replaced with new ones after removal — reusing them is not acceptable.
Tightening Sequence Tighten progressively from the center outward in a cross pattern. Follow 3–4 steps to reach the specified torque.
Angle-Tightening (Torque-to-Yield) Procedure Final stage: rotate the bolts by an additional 90°–180° (refer to the OEM service manual for exact specs).
Sealant Application Apply a small amount of sealant at designated points (strictly follow the OEM service manual instructions).
Coolant Refill Use a vacuum filler or manually bleed the system to prevent air pockets / vapor lock.
Pre-Start Inspection Inspect all hose and line connections. Refill engine oil and coolant before starting the engine.
Post-Start Inspection Let the engine idle and check for leaks, abnormal noise, or overheating.
