23220-74021 RAV4 SXA1 Vehicle Spare Parts Pump Assy Fuel Injection System Corolla AE11 EE110

Product Details:
Place of Origin: CHINA
Brand Name: CMI
Certification: TS16949
Model Number: 23220-74021
Payment & Shipping Terms:
Minimum Order Quantity: 30-50PCS
Price: negotiable
Packaging Details: Neutral packing box
Delivery Time: 30working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000000pcs/month

Detail Information

Feacture: 12V/24V Application: Universal
Color: Same As Photo Weight: 0.35kgs
Material: Iron REF.: 10@CG24225Y
High Light:

23220-74021 Vehicle Spare Parts

,

EE110 Vehicle Spare Parts

,

SXA1 Vehicle Spare Parts

Product Description

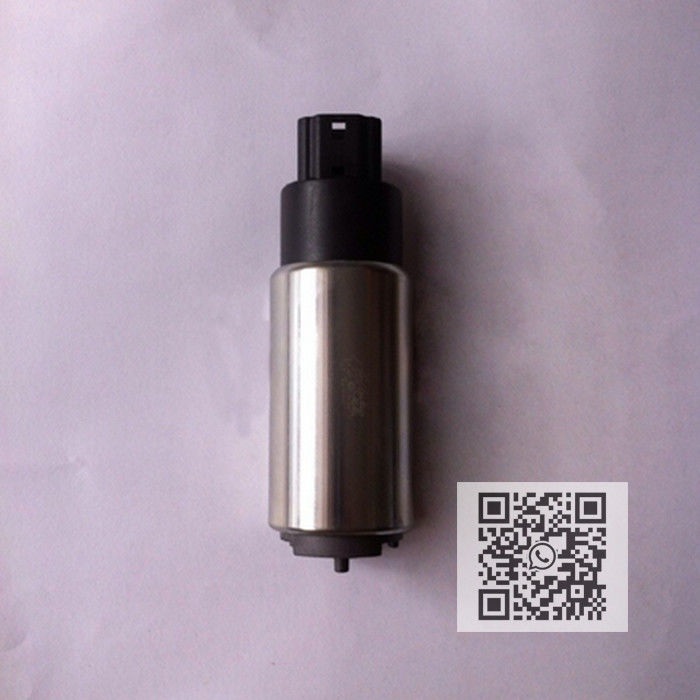

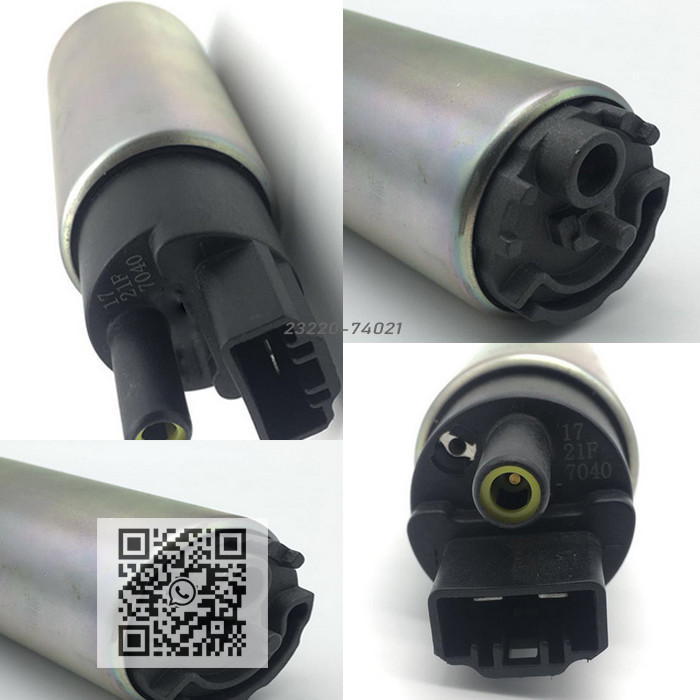

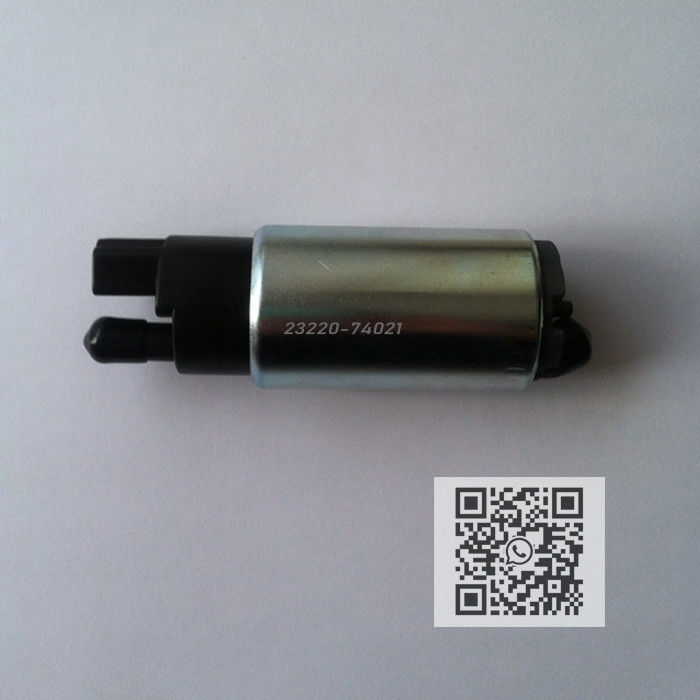

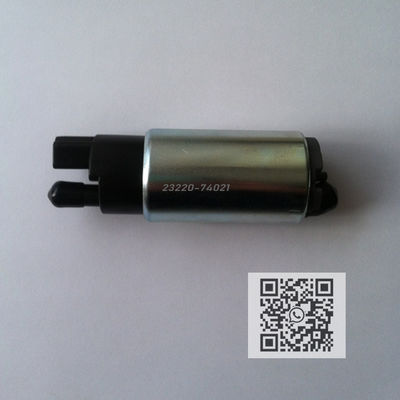

23220-74021 RAV4 SXA1 PUMP ASSY FUEL INJECTION SYSTEM COROLLA AE11 EE110

Original parts # 23220-74021
Product name/Type: Fuel Pump Electronic Pump
OEM/ODM: yes
Current: 4.8
Voltage :12V (V)
Traffic :120 (A)
Pressure: 10 (mpa)
Package size :35 x 30 x 35

23220-74021 RAV4 SXA1 PUMP ASSY FUEL INJECTION SYSTEM COROLLA AE11 EE110

<

Date/Year Range Model Frames/Options
01/1996-06/1999 TOYOTA STARLET EP9*
01/1996-11/2001 TOYOTA CORONA AT210,ST210
04/1994-07/2000 TOYOTA RAV4 SXA1*
05/1995-11/2004 TOYOTA COROLLA AE11*,CE110,EE11*,ZZE11*
05/1997-08/2001 TOYOTA COROLLA AE11*,EE110
08/1999-04/2001 TOYOTA PICNIC SXM10
11/1993-07/1999 TOYOTA CELICA ST20*
12/1996-06/2003 TOYOTA SOLUNA AL50





1.Stock available
Most of the products are in stock, off-the-shelf supply, individual series of cold-door products need to be processed and customized.

2.Color /surface treatment
physical shooting, color by professional proofreading, and physical tile drawing is the closest, because the computer monitor color contrast and color temperature are some differences and so on .

3. After-sales
We provide complete after-sales guarantee, quality issues unconditionally given returns.

4.Delivery
Supporting sea shipping, air Express, road transport and railway transportation.



Gas Diesel Inline HEP-02A UniversalElectric Fuel Pump 12V/24V Toyota Nissan MazdaPetrol Gasoline Electric Fuel pump



Specification
oem HEP-02A
Flows 110L/H(A)
Voltage 12V
Pressure 0.03-0.05MAP(3psi-5psi)
Weight 0.35 KGS
Color same as picture
Material Iron
Installation hole distance 6.7cm
In&out diameter 8mm
Pipeline interface 0.8cm
Applicable models Universal
QC 100%Brand New and High Quality



Using a plunger-type of fuel supply way, suction stronger,oil supply more stable
Package Includes : 1Pc×Fuel Pump



23220-74021 RAV4 SXA1 Vehicle Spare Parts Pump Assy Fuel Injection System Corolla AE11 EE110 0


How to work?

Electric fuel pump structure and working principle
The structure of electric fuel pump by the pump body, permanent magnet motor and the shell is made up by three parts. Permanent magnet electric motor which drives the pump body rotation, from the fuel oil inlet suction, flows through the electric fuel pump inside, again from the oil outlet pressure, supply of fuel oil supply. Fuel flows through the electric fuel pump inside, the permanent magnet motor armature cooling effect, also known as wet fuel pump. Electric fuel pump motor parts including fixed on the shell of a permanent magnet and electromagnetic torque of the armature and the brush device installed on the shell. Brush contact and armature commutator, its lead received by post from the shell, to control the voltage of the electric fuel pump lead to the armature winding. Edge rivet on both ends of the electric fuel pump casing, make the parts assembled into a sealed assembly.


Different types of electric petrol pumps


(1) the roller type electric petrol pump is composed of shell, cylindrical roller and rotor, etc. Five roller can radial sliding groove of the rotor, there exist certain eccentric rotor and shell. Under the drive of dc motor rotor spinning, in under the action of centrifugal force, roller press in the pump body inner circle on the surface, forming five relatively independent seal chamber. Rotates, each of the sealed cavity volume change constantly, when the oil inlet, volume increase, the formation of a certain vacuum, gas suction pump will be filtered. In the oil outlet, smaller volume, pressure, gas pushed through the dc motor output one-way valve.


(2) the gasoline pump vane vane pump is a blade rotor slot into contact with the pump shell (stator loop) the suction liquid from the suction side pressure to the side of the discharge of oil pump.


(3) the gear oil pump, gear pump is a kind of positive displacement pump, made up of two gear, pump body and cover of two closed space, when gears, gear side space volume from small greaten, forming a vacuum, the liquid suction, the side of the gear mesh from large to small volume of the space, and the liquid into line. Suction chamber and discharge chamber are separated by two gears meshing line


How about M.O.Q(Minimum Order Quantity)



As usual, no M.O.Q for stock parts. Just price different due to the quantity small or big.
for new models developing, depends on the parts,we have the MOQ from 100-300pcs.



Any Warranty?
365 days quality guarantee is available.
Brake pads&brake shoes&driving belts: 30000KM-5000KM
Suspension struts Shock absorber:50000KM-80000KM



How about the quality control?
Our Highly automatic production line automated machines provide quality and quantity. They produce products with less errors.
with another advantages like Advanced testing equipment and Proffessional Tech.
100% raw material and half finished parts quality checking before production.
100% sample testing and confirm before mass production.

100% testing before shipment.
